Installation Procedure

WARNING: This page is about a different car, the 2003 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

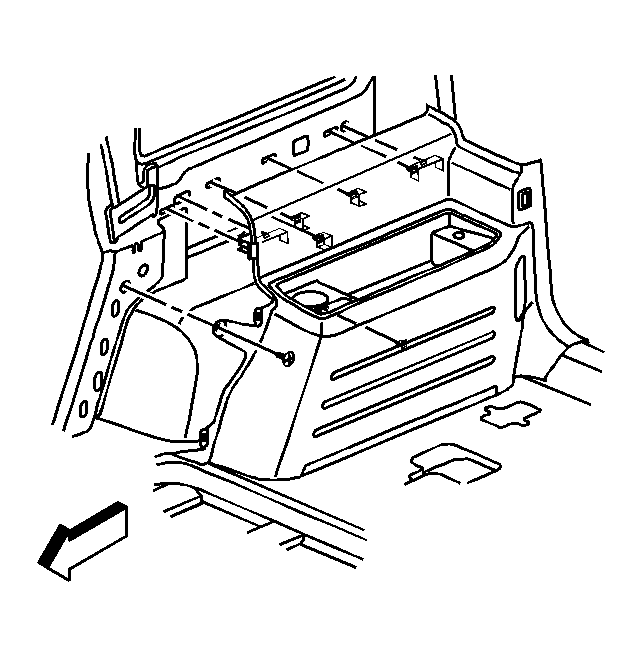

    Fig 1: Right Side Body Trim Panel
    GM833490Courtesy of GENERAL MOTORS CORP.
  1. Install the body panel to the vehicle.
  2. Align the retaining clips with he openings in the body and gently press to fully seat the clips.
  3. Connect the 12 volt power supply connector.
  4. Install the inflator nozzle into the body panel opening.

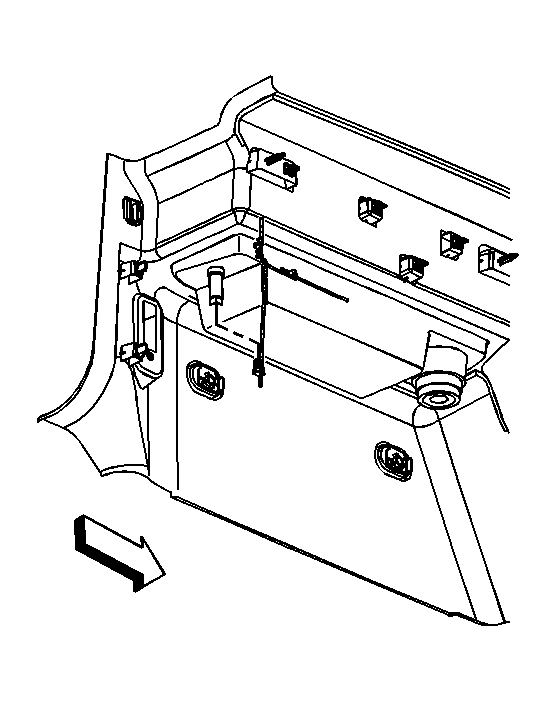

    Fig 2: Inflator Nozzle
    GM833506Courtesy of GENERAL MOTORS CORP.
  5. Install the body side panel tray.
  6. Install the lock pillar trim panel. Refer to Trim Replacement - Lock Pillar  .
  7. Install the lift gate sill plate. Refer to Door Sill Plate Replacement - Liftgate  .

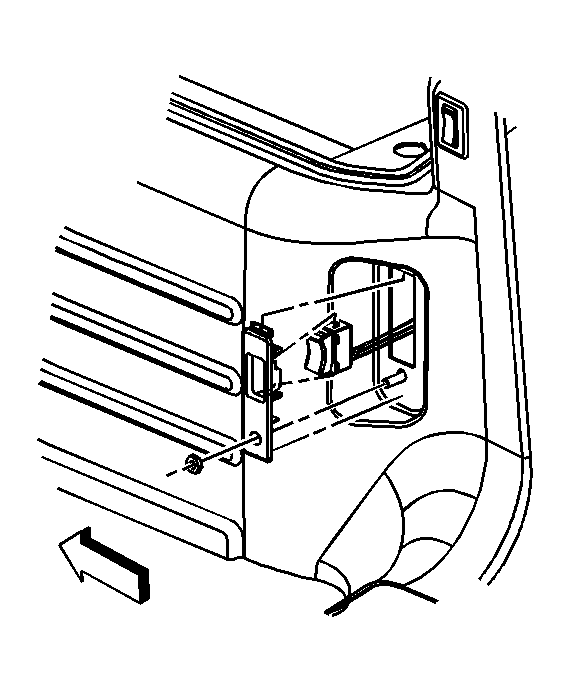

    8. Fig 3: Electrical Connector, Door Lock Switch & CPA Pin
    GM833504Courtesy of GENERAL MOTORS CORP.
  8. Connect the electrical connector to the door lock switch and install the CPA.
  9. Install the door lock switch into the body panel.
  10. Install the inflator switch to the inflator bezel.
  11. Install the inflator bezel to the body panel.
  12. Install the inflator nozzle retaining nut.
  13. Install the rear pillar trim panel.
