Interior Lights Schematics

WARNING: This page is about a different car, the 2003 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

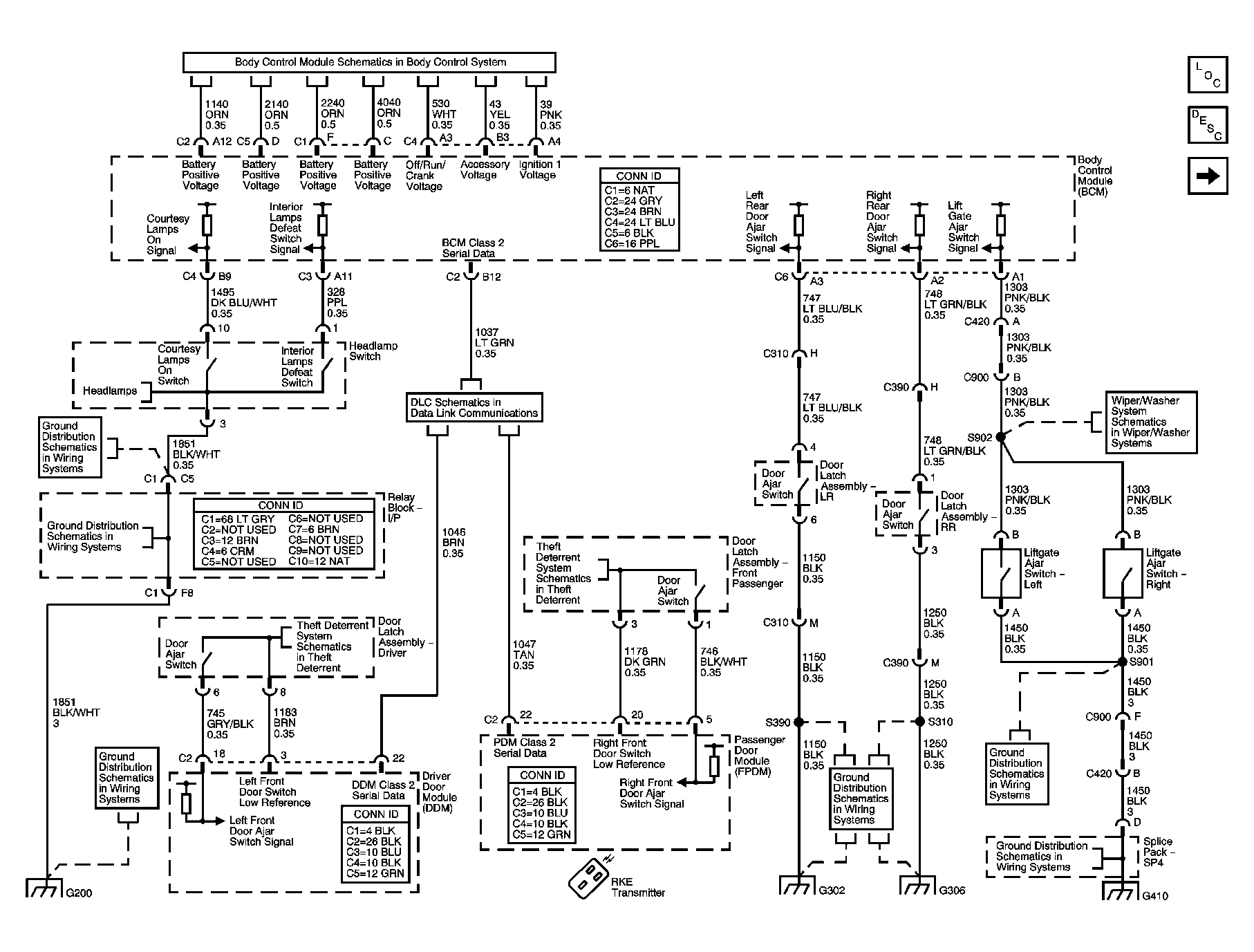

Fig 1: Interior Lamp Controls, BCM, Door Ajar Switches

Courtesy of GENERAL MOTORS CORP.

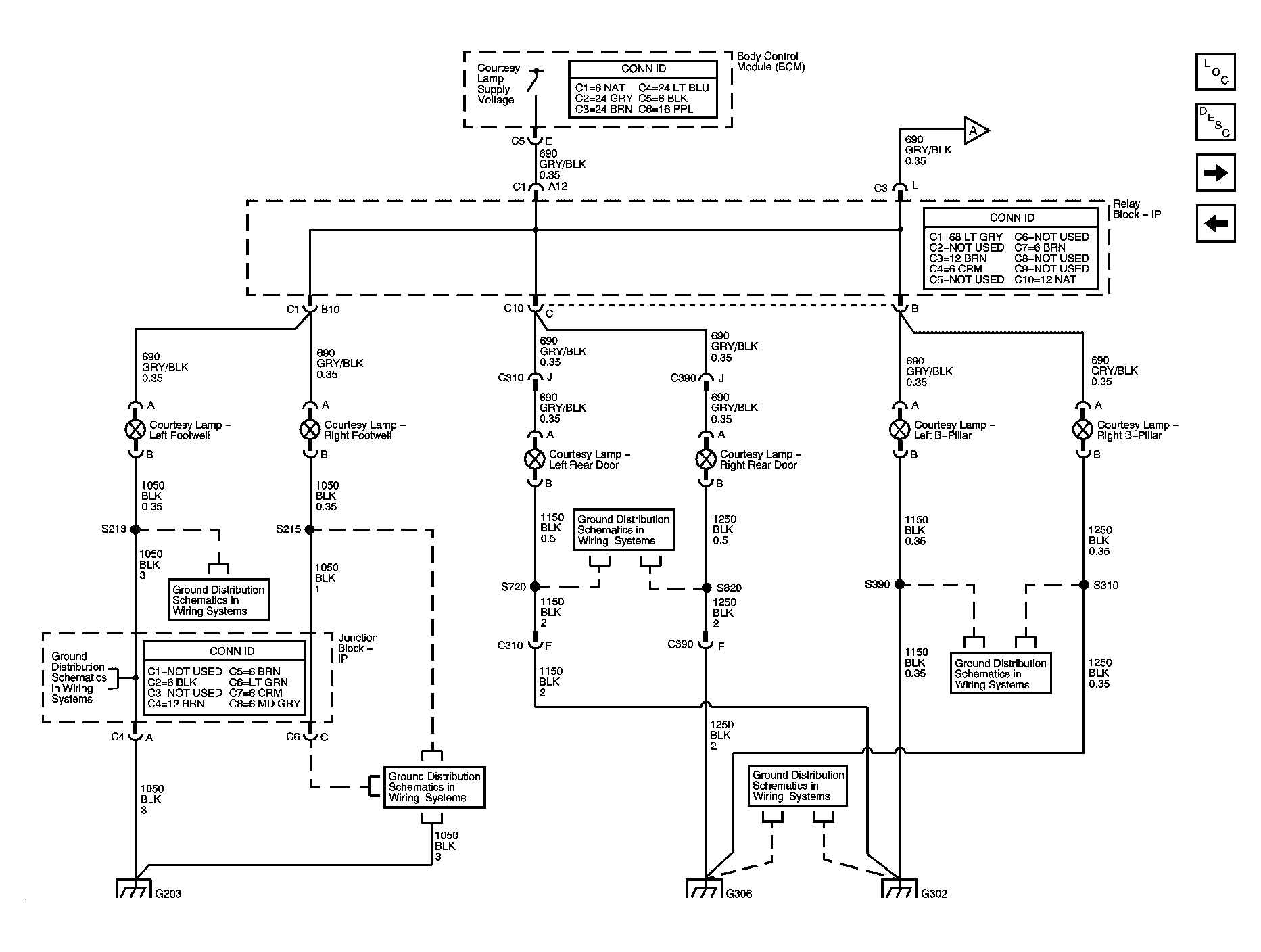

Fig 2: Courtesy Lamps - Footwells, Rear Doors, and B-Pillars

Courtesy of GENERAL MOTORS CORP.

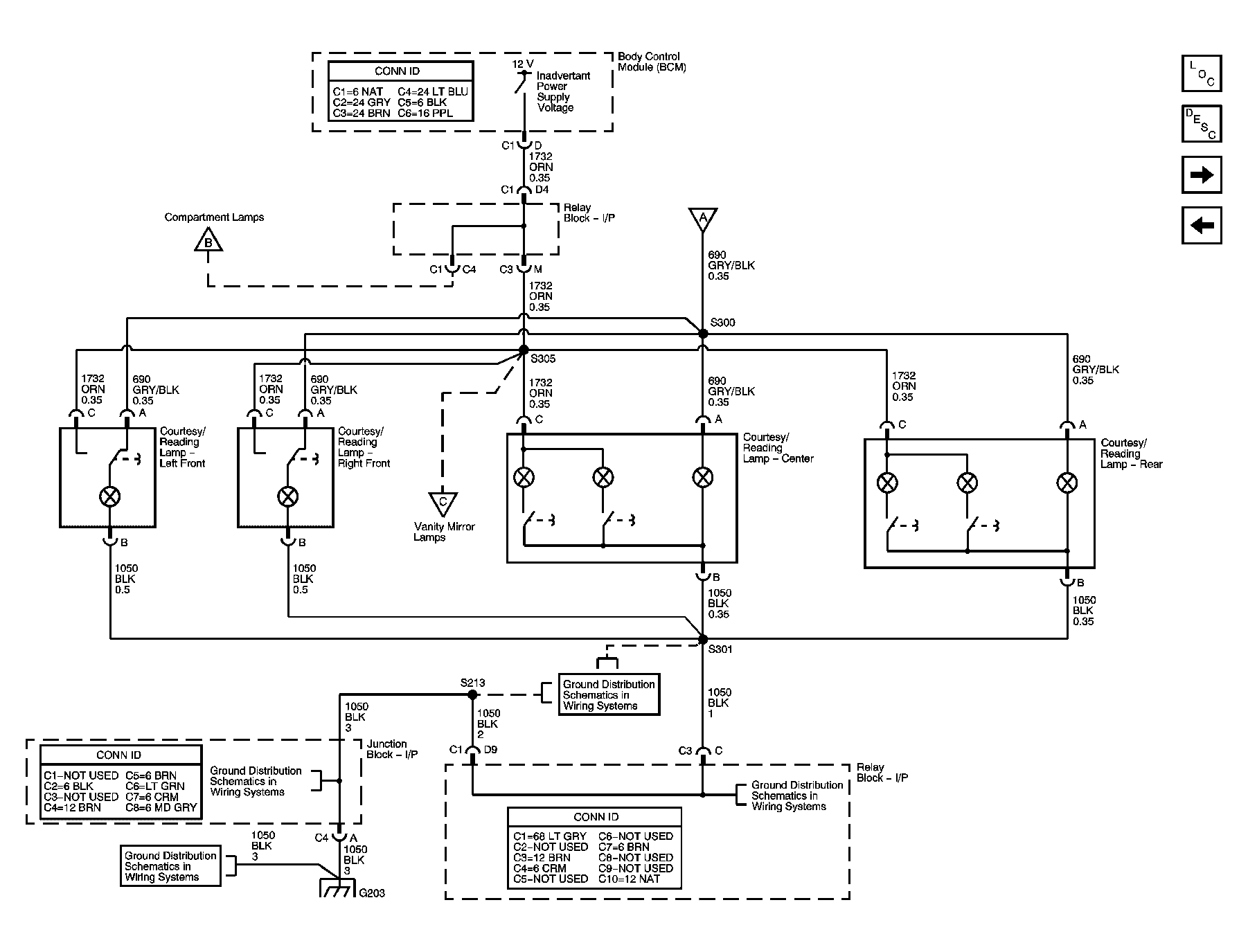

Fig 3: Courtesy Lamps - Headliner Front, Center, and Rear

Courtesy of GENERAL MOTORS CORP.

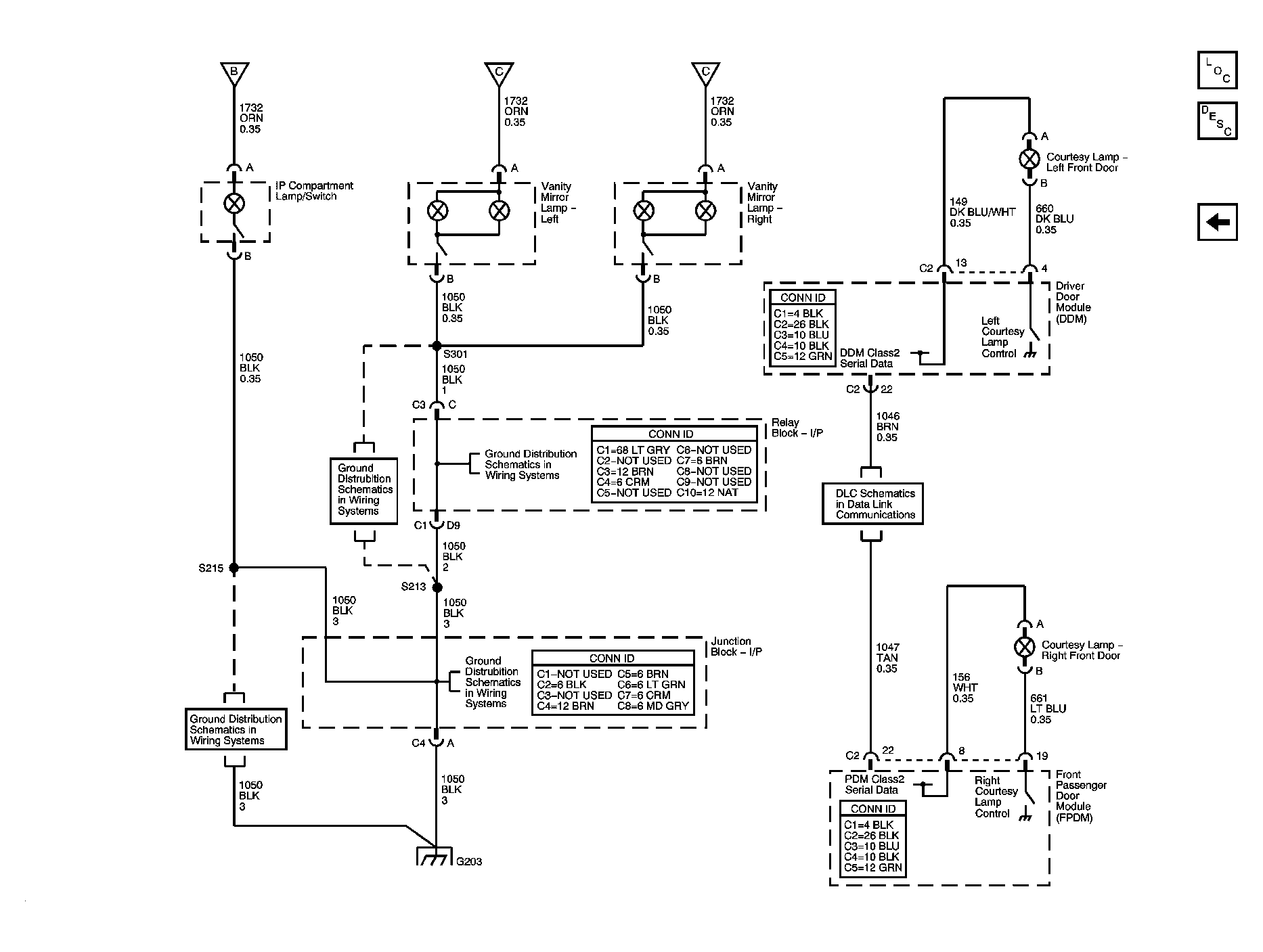

Fig 4: Courtesy Lamps - Front Doors; Vanity Mirror, and IP Compartment

Courtesy of GENERAL MOTORS CORP.
