Headlights Schematics

WARNING: This page is about a different car, the 2003 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

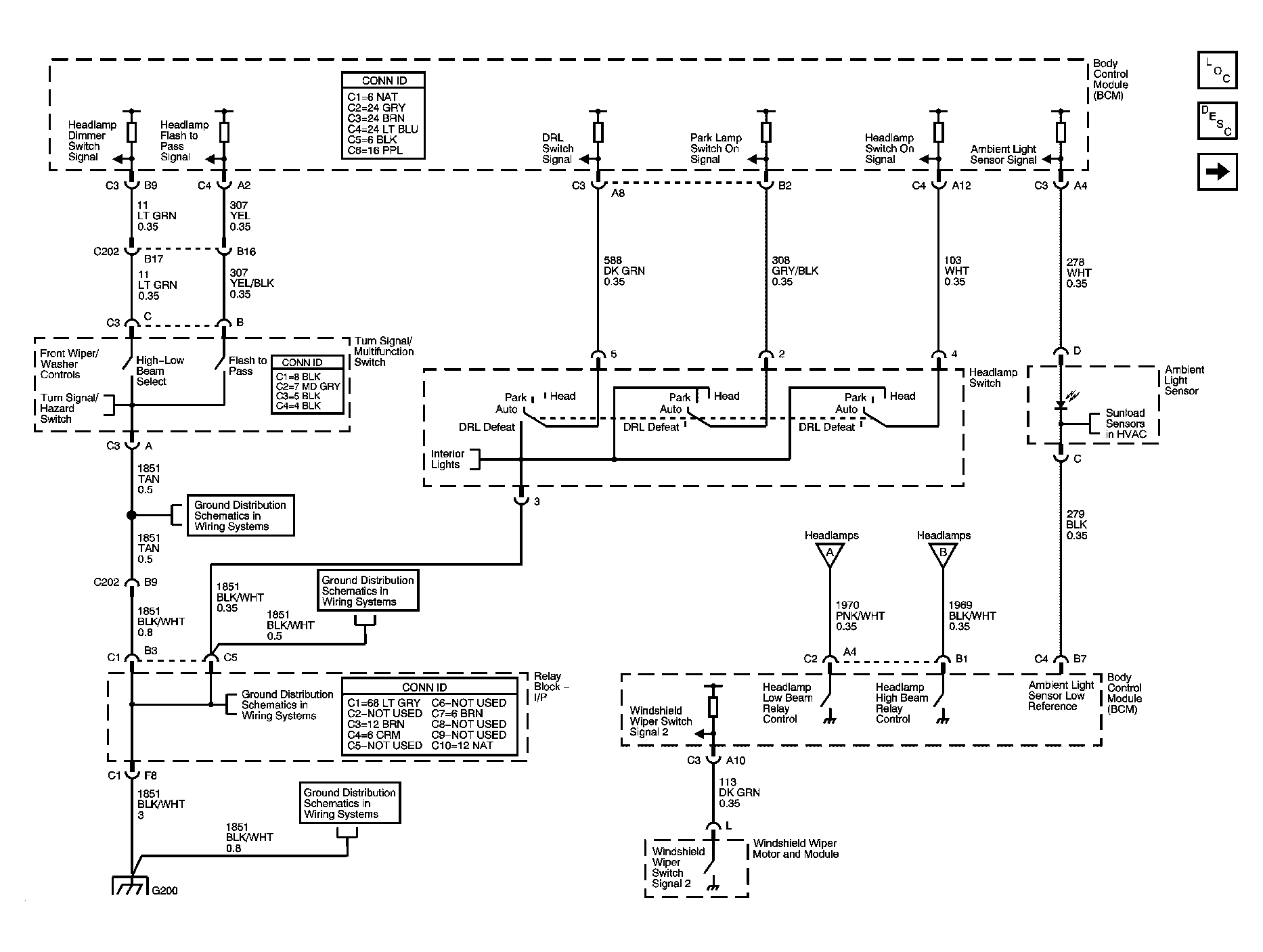

Fig 1: Headlamp Controls, Switches, Ambient Light Sensor
GM831443Courtesy of GENERAL MOTORS CORP.

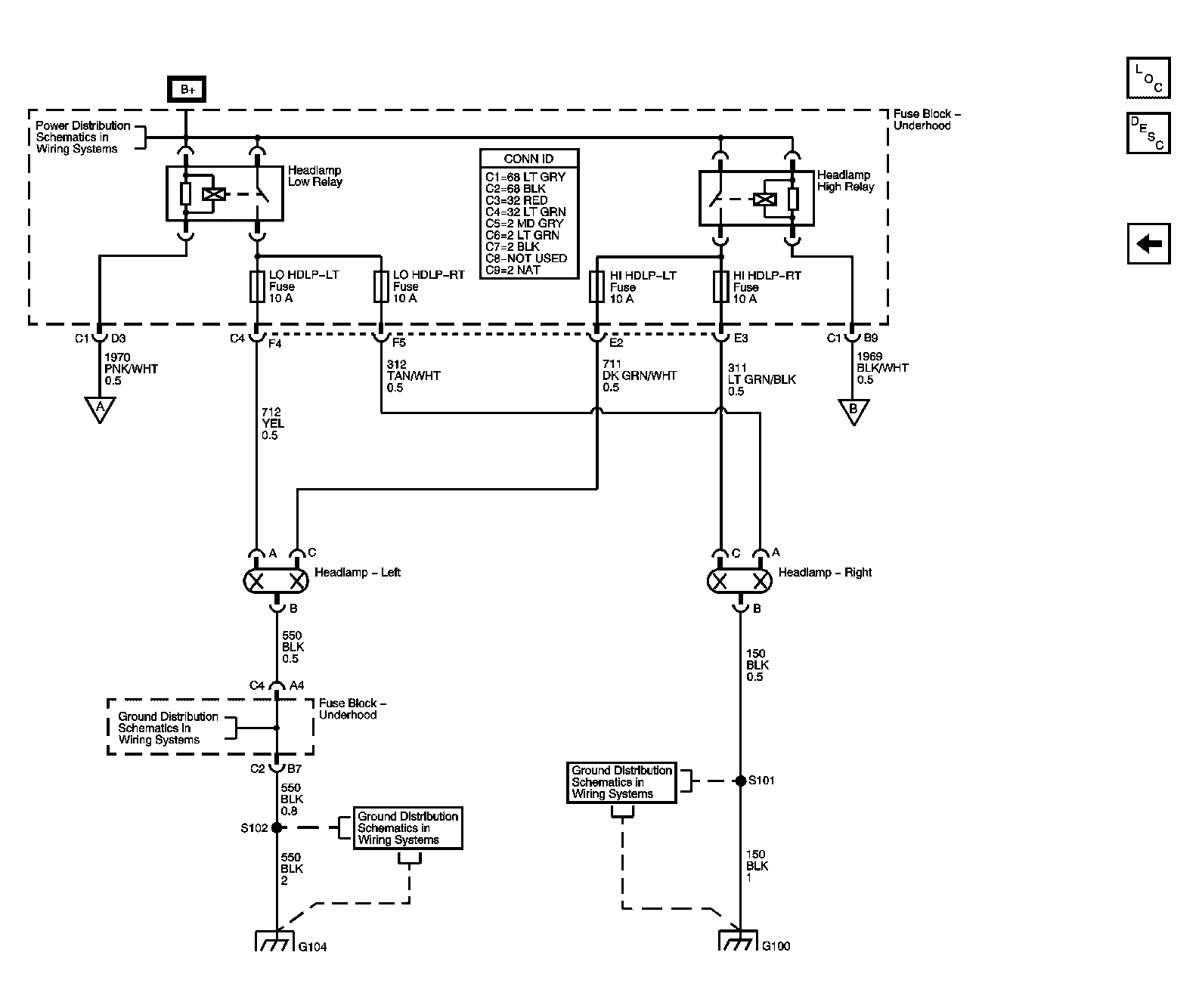

Fig 2: Headlamps Schematics
GM831444Courtesy of GENERAL MOTORS CORP.
