Removal Procedure

WARNING: This page is about a different car, the 2003 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that the headlamp switch is in the OFF position
  2. Lower the I/P storage compartment door by pressing the tab.
  3. Depress the switch plunger.

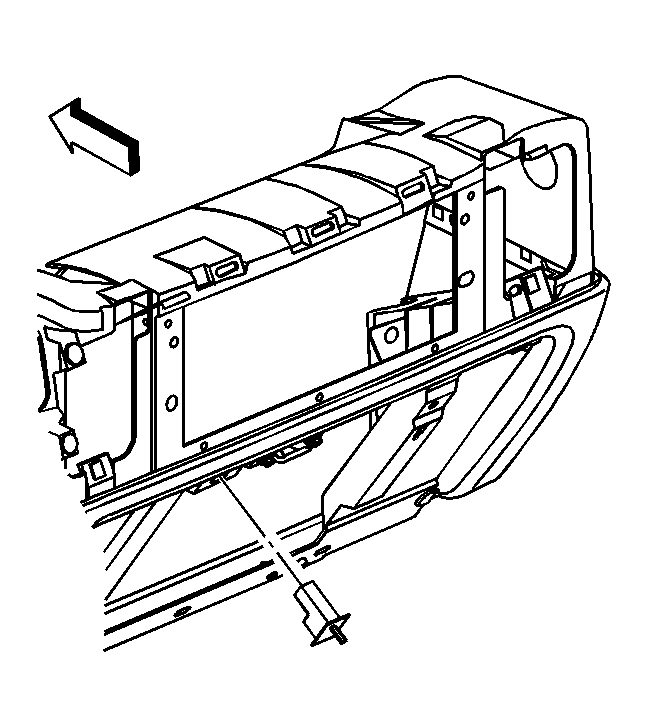

    4. Fig 1: Locating Switch Assembly
    GM815932Courtesy of GENERAL MOTORS CORP.
  4. Pull the switch assembly downward from the retainer.
    5. Fig 2: Locating I/P Compartment Lamp Switch
    GM832801Courtesy of GENERAL MOTORS CORP.
  5. Disconnect the electrical connector (1) from the I/P compartment lamp switch.
  6. Remove the I/P compartment lamp switch (2).
