Installation Procedure

WARNING: This page is about a different car, the 2003 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

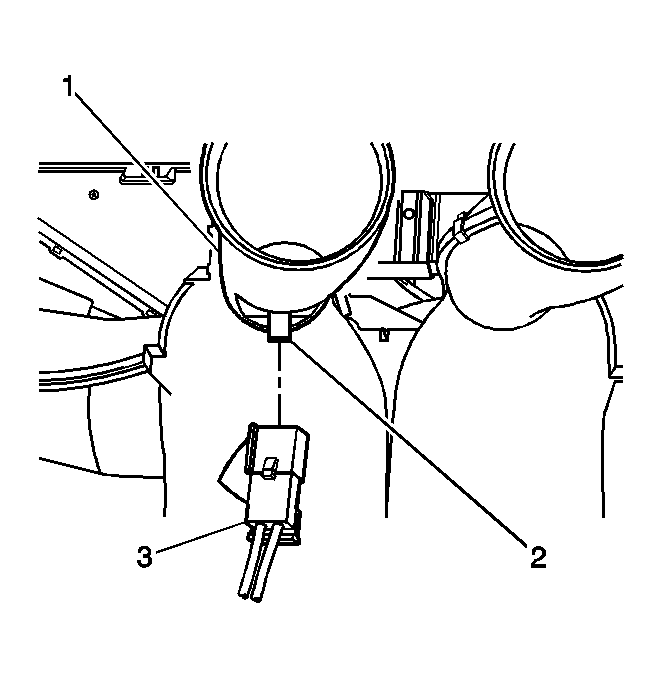

    Fig 1: Installing Upper Left Air Temperature Sensor To Air Distributor Duct
    GM834039Courtesy of GENERAL MOTORS CORP.
  1. Install the upper left air temperature sensor (2) to the air distributor duct (1).
  2. Connect the electrical connector (3) to the upper left air temperature sensor (2).
  3. Install the center trim bezel. Refer to Trim Panel Replacement - Instrument Panel (I/P) Center .
