Installation Procedure
WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

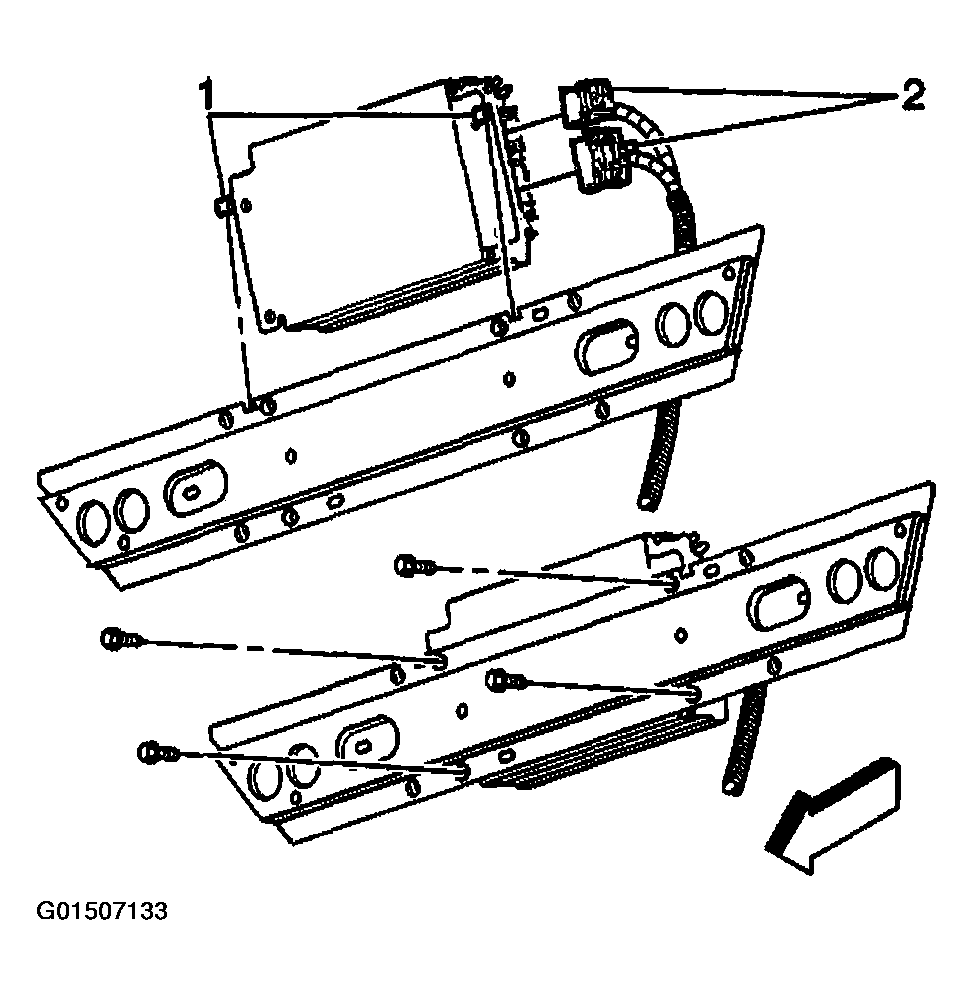

- Install the alignment tabs (1), on the radio amplifier, over the mounting bracket.
- Install the radio amplifier electrical connectors (2).NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the fasteners to retain the radio amplifier to the mounting bracket.
Tighten
Tighten the fasteners to 9 N.m (80 lb in).
- Install the rear seat back. Refer to SEAT BACK REPLACEMENT - REAR in Seats.
- Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
