Engine Front Cover Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the ten front cover perimeter bolts.
  2. Remove the front cover and the gasket. Make sure you do not damage the sealing surface. Some of the gasket material may remain on the engine block.
  3. Remove the remaining gasket material from the front cover and engine block using a plastic scraper.

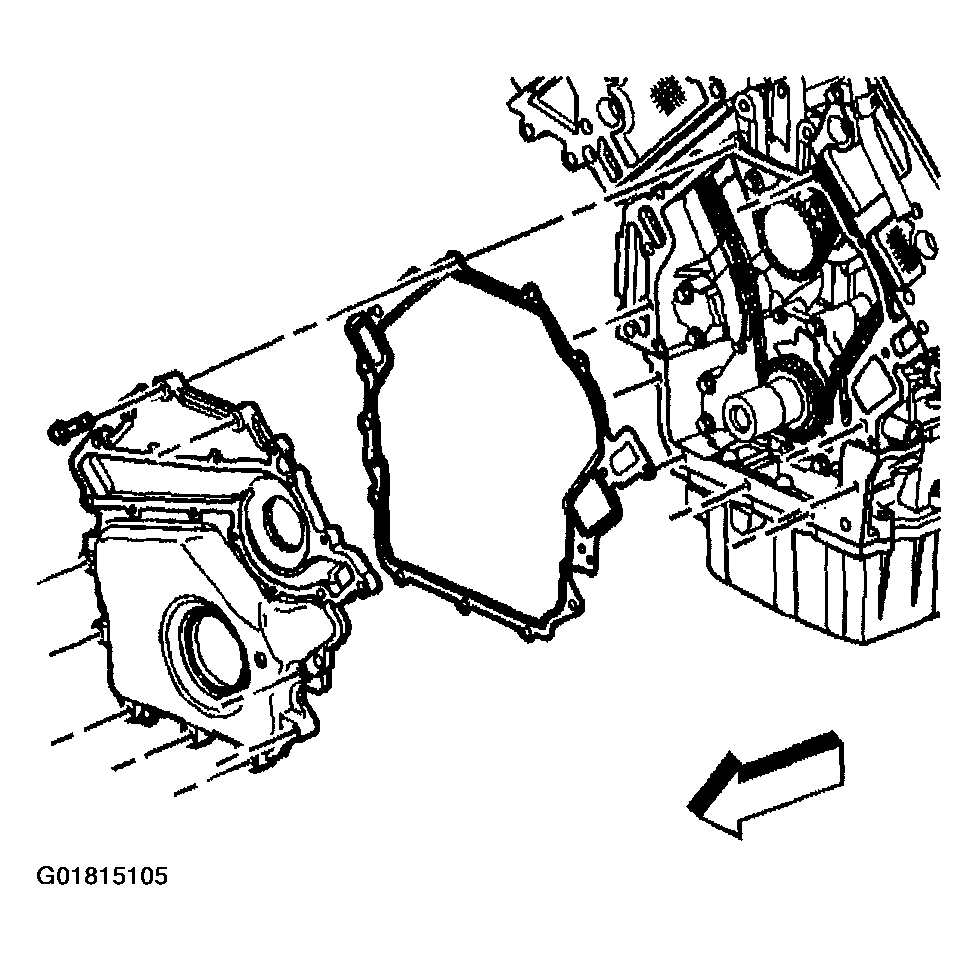

    Fig 1: Removing Engine Front Cover
    G01815105Courtesy of GENERAL MOTORS CORP.
