Engine Block Disassemble - Upper

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Remove the balance shaft rear bearing hole plug.

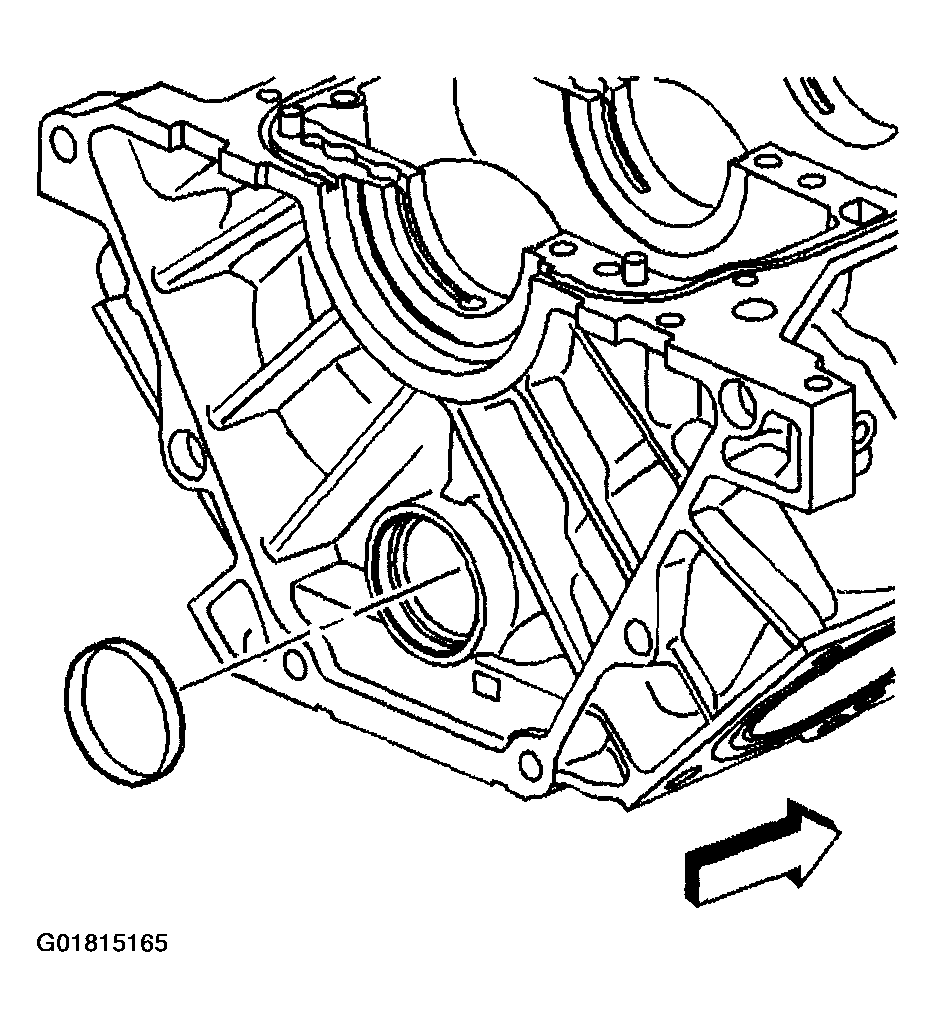

Fig 1: Removing Balance Shaft Rear Bearing Hole Plug
G01815165Courtesy of GENERAL MOTORS CORP.
