Engine Block Assemble - Lower

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the NEW oil gallery expansion plug.

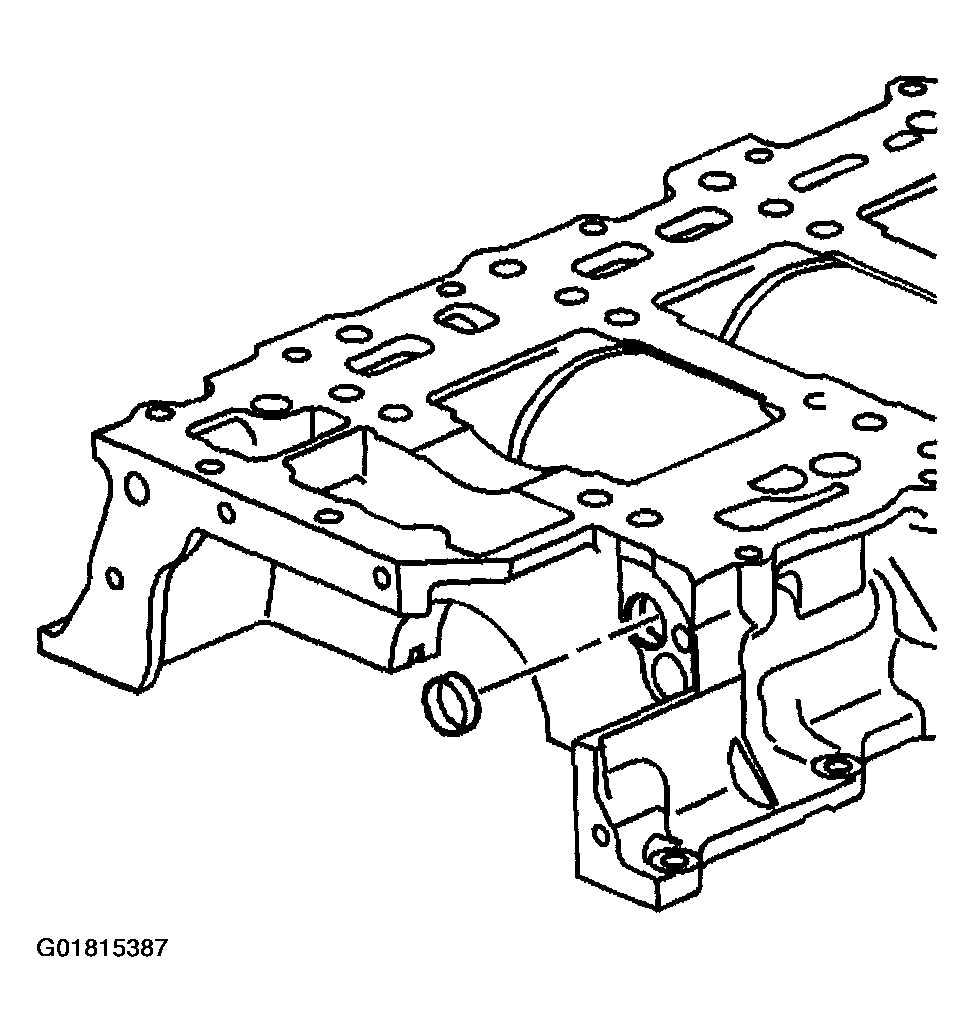

    Fig 1: Installing New Oil Gallery Expansion Plug
    G01815387Courtesy of GENERAL MOTORS CORP.
  2. Ensure the NEW oil gallery expansion plug is installed to the proper depth.

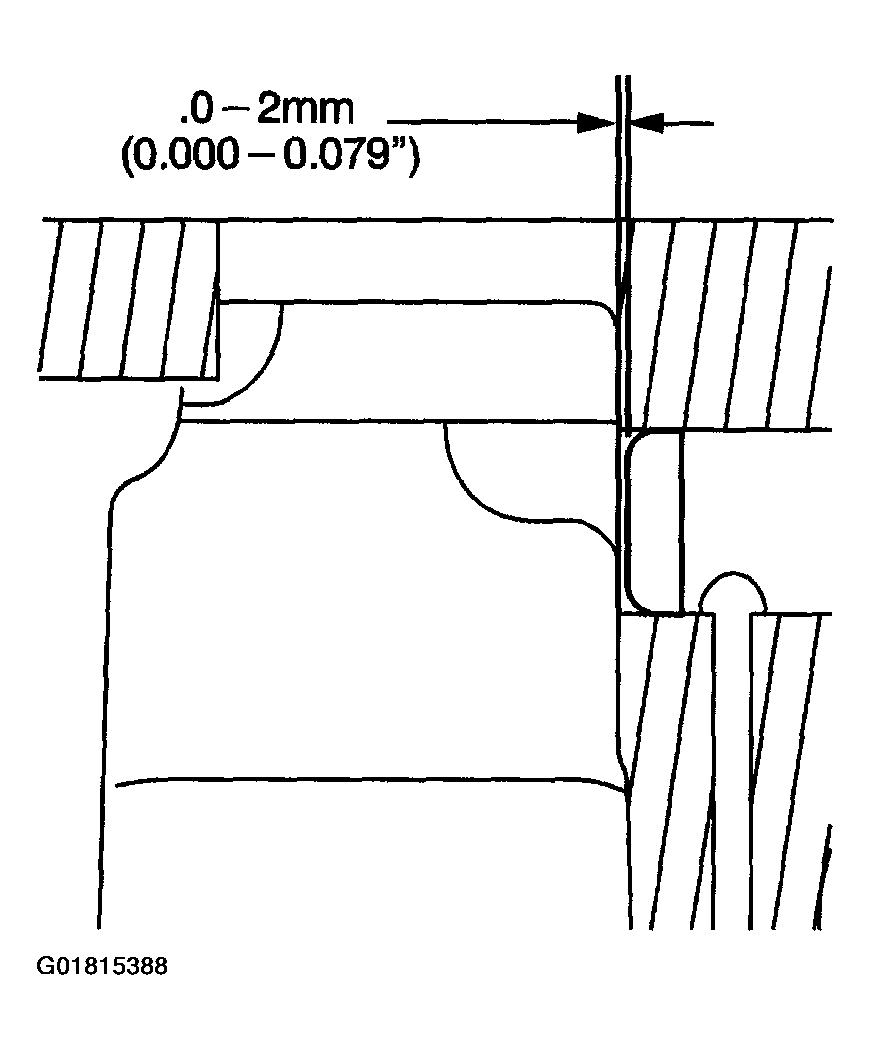

    Fig 2: Identifying Expansion Plug Proper Installation Depth
    G01815388Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to in FASTENER NOTICE .
  3. Install the NEW oil gallery threaded plug.

    Tighten

    Tighten the NEW oil gallery threaded plug to 65 N.m (48 ft lbs).

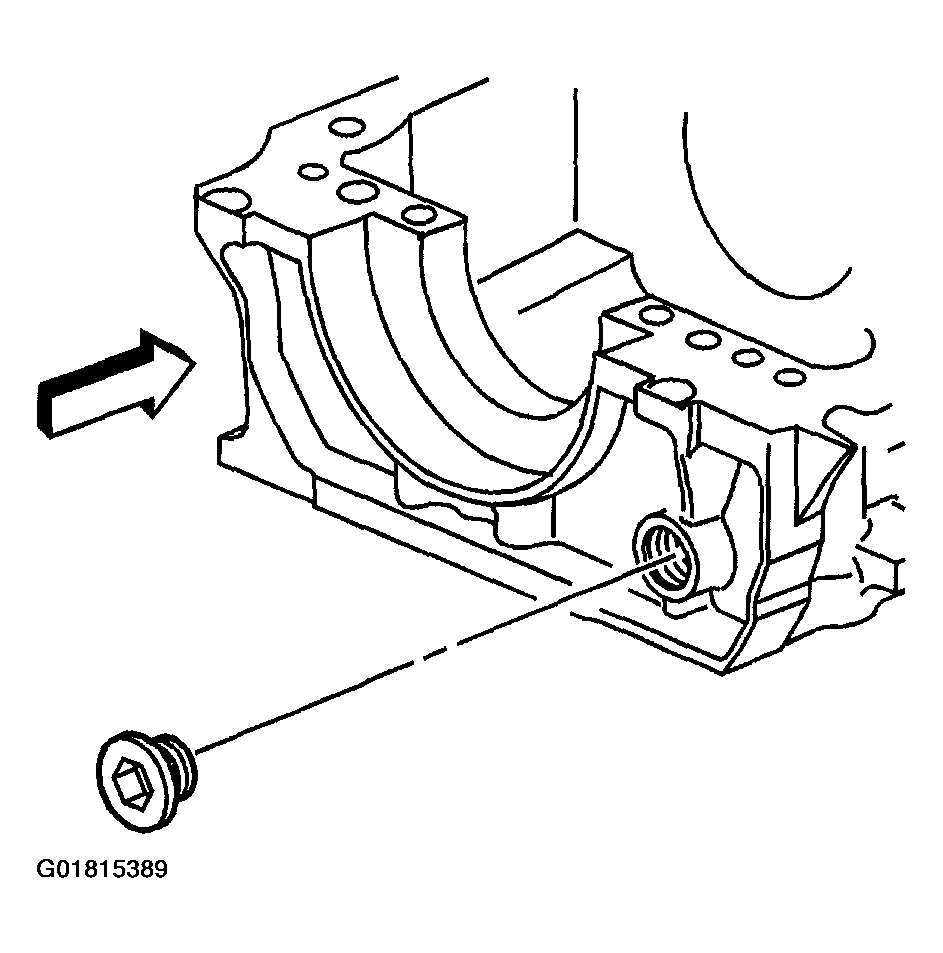

    Fig 3: Installing New Oil Gallery Threaded Plug
    G01815389Courtesy of GENERAL MOTORS CORP.
