ABS Schematics

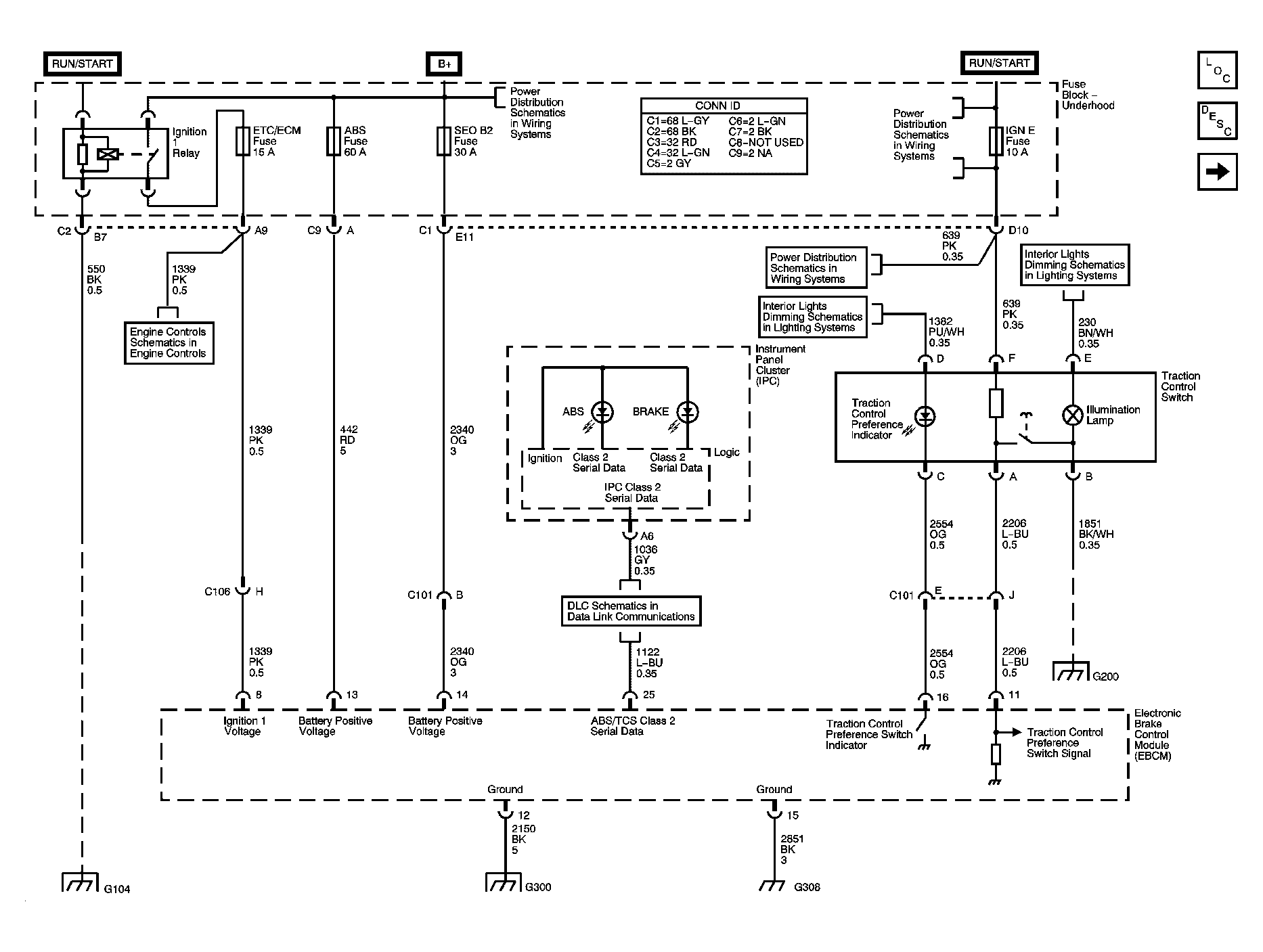

Fig 1: EBCM Power, Ground, DLC, Indicator Lamps, and Traction Control Switch
GM1177335Courtesy of GENERAL MOTORS CORP.

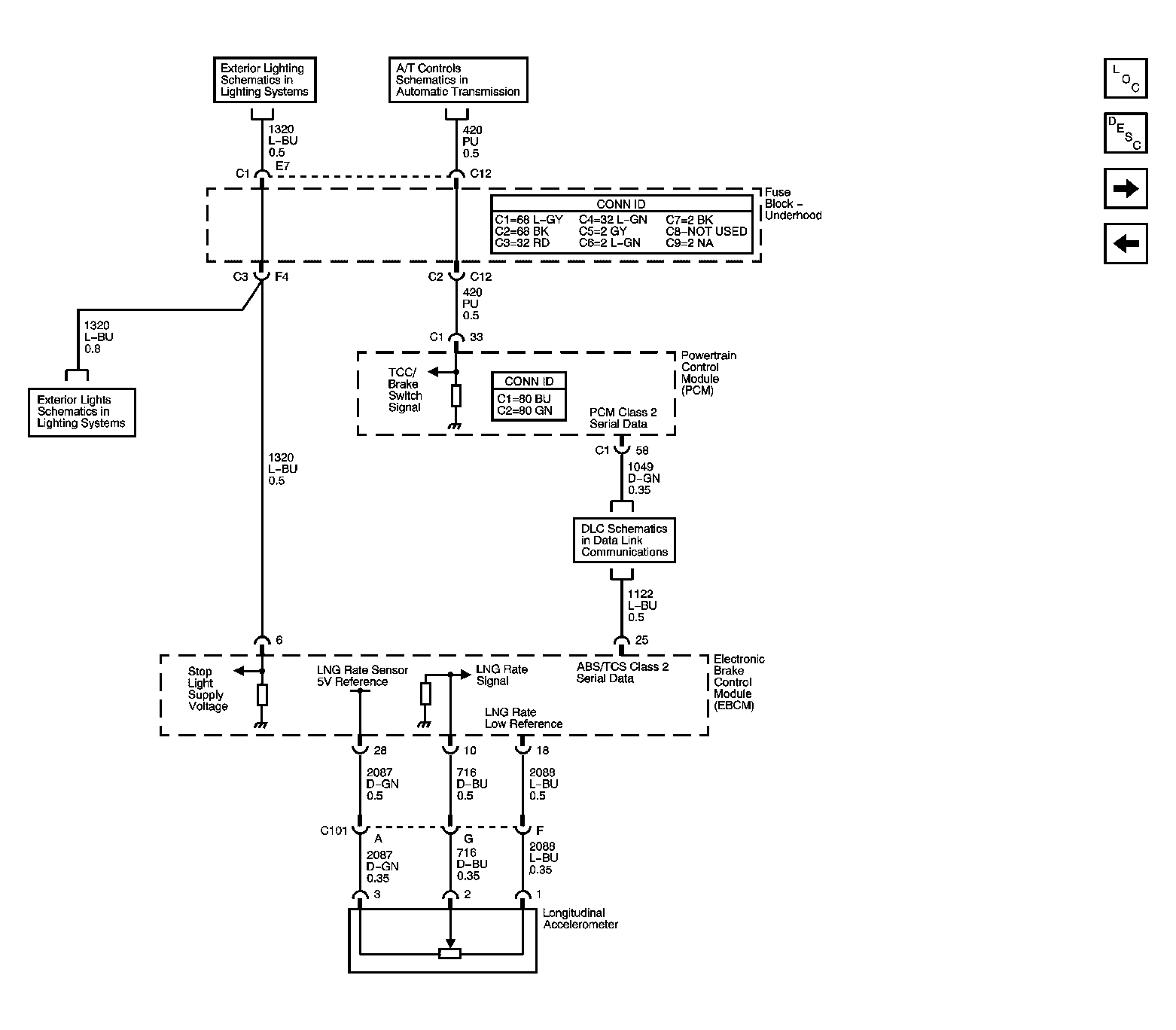

Fig 2: Stoplamp Switch and Longitudinal Accelerometer Inputs
GM1177342Courtesy of GENERAL MOTORS CORP.

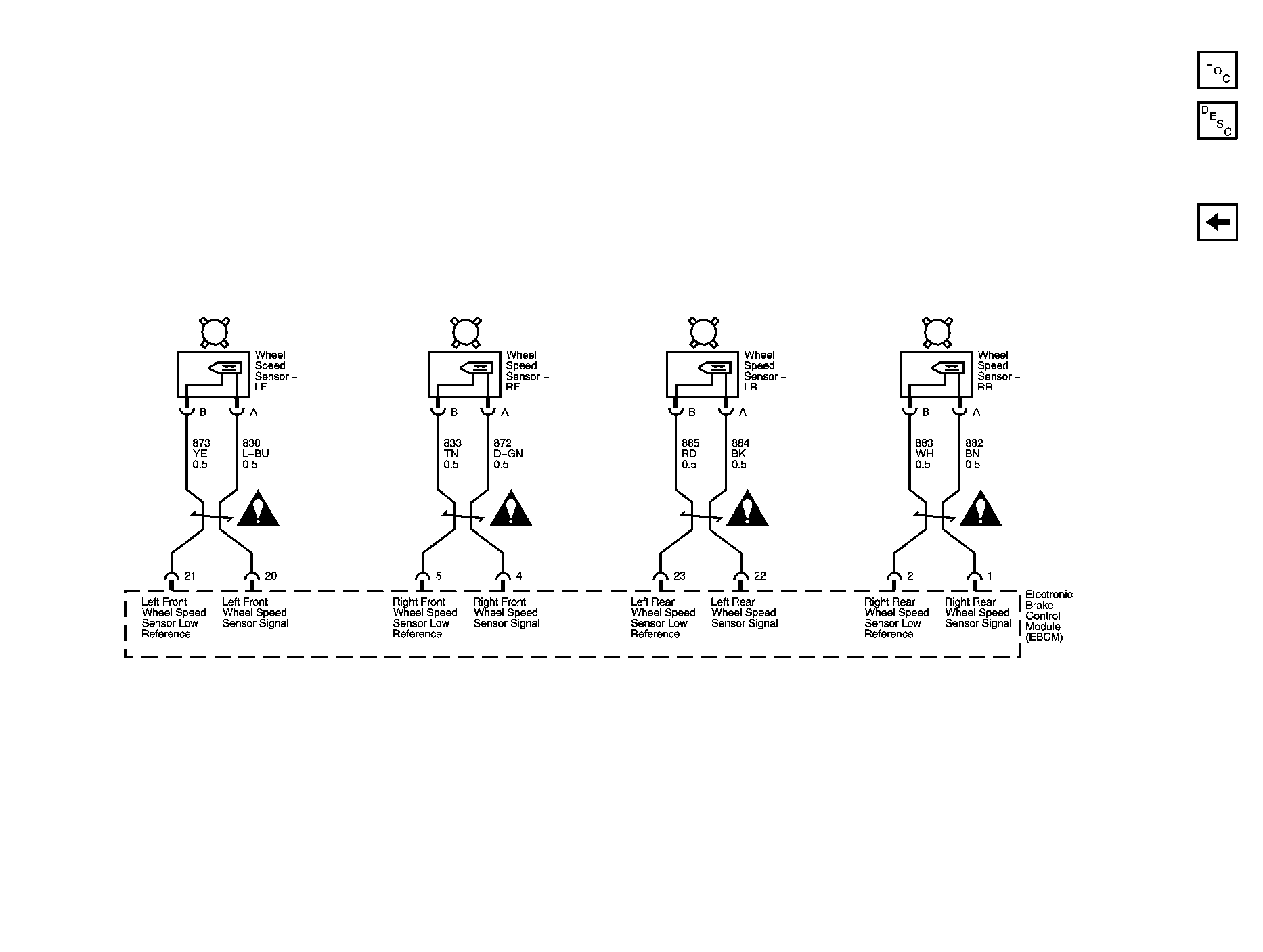

Fig 3: Wheel Speed Sensor Inputs
GM1177345Courtesy of GENERAL MOTORS CORP.
