Installation Procedure

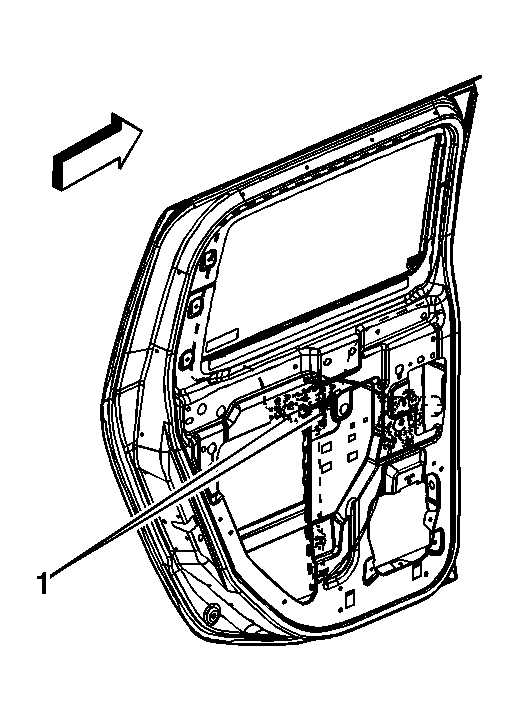

    Fig 1: Rear Door Window
    GM838833Courtesy of GENERAL MOTORS CORP.
  1. Slide the window through the opening at the bottom of the window frame into position in the window clamps (1).
  2. Install the sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Outer .
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the run channel. Refer to Window Run Channel Replacement - Rear Door .

    Tighten:  Tighten the clamps to 9 N.m (6 lb ft).

  4. Install the stabilizer. Refer to Window Stabilizer Replacement - Rear Door .
  5. Operate the window to ensure proper operation.
  6. Install the water deflector. Refer to Water Deflector Replacement - Rear Door .
  7. Install the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
