Weatherstrip Replacement - Front Door
>>
Installation Procedure
Installation Procedure

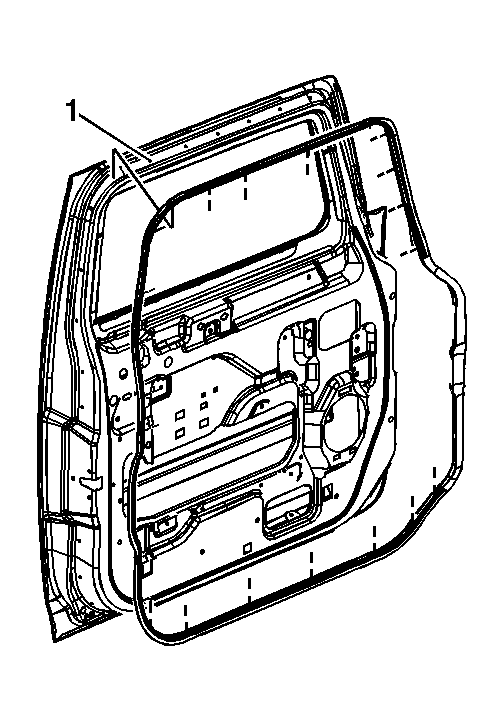

Fig 1: Front Door Weatherstrip
Courtesy of GENERAL MOTORS CORP.
Install weatherstrip by securing the 23 retainers into their correct locating holes (1) on the door.
Close the door.
