Transfer Case Control Schematics

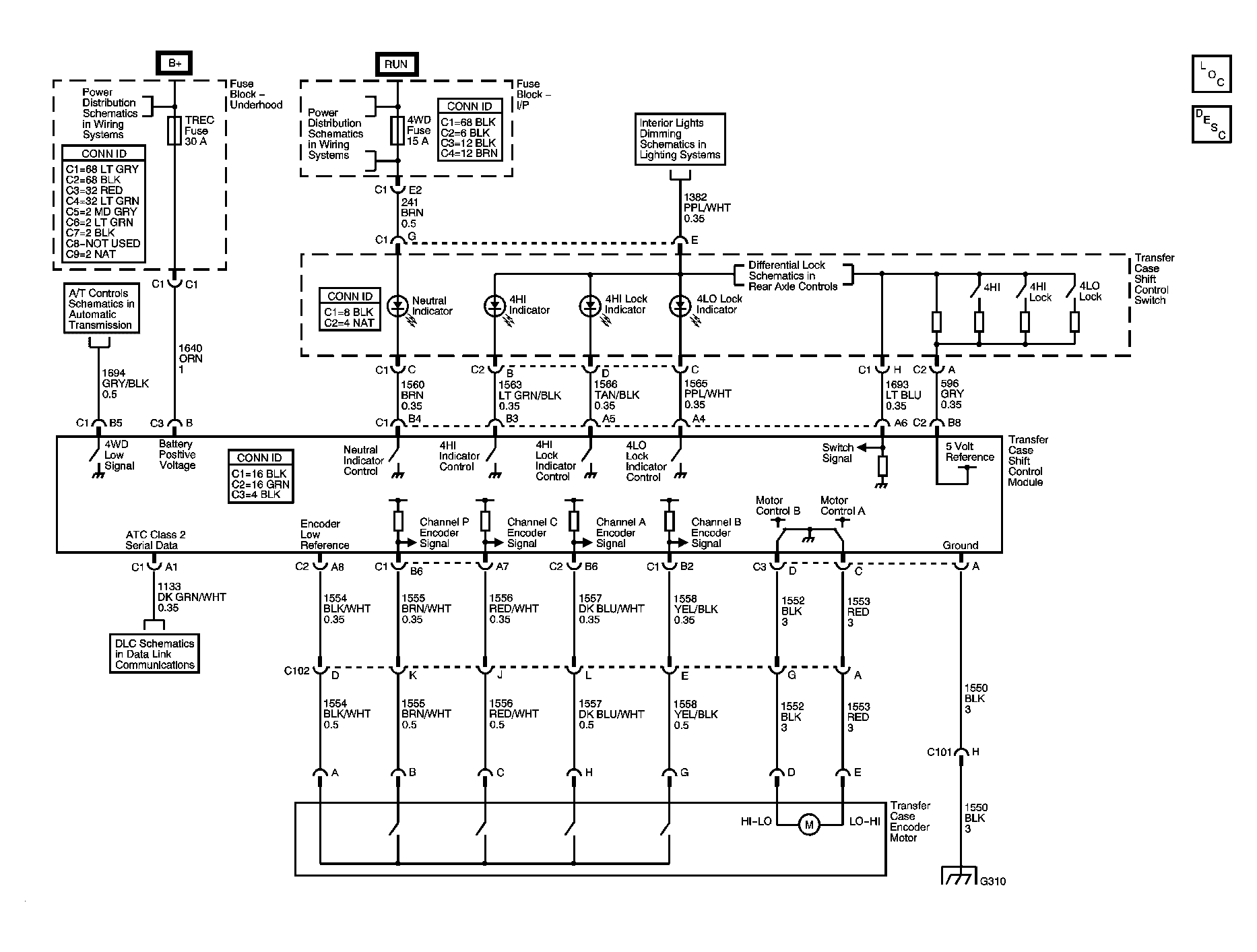

Fig 1: Transfer Case Control Schematic

GM832860

Courtesy of GENERAL MOTORS CORP.
