Installation Procedure

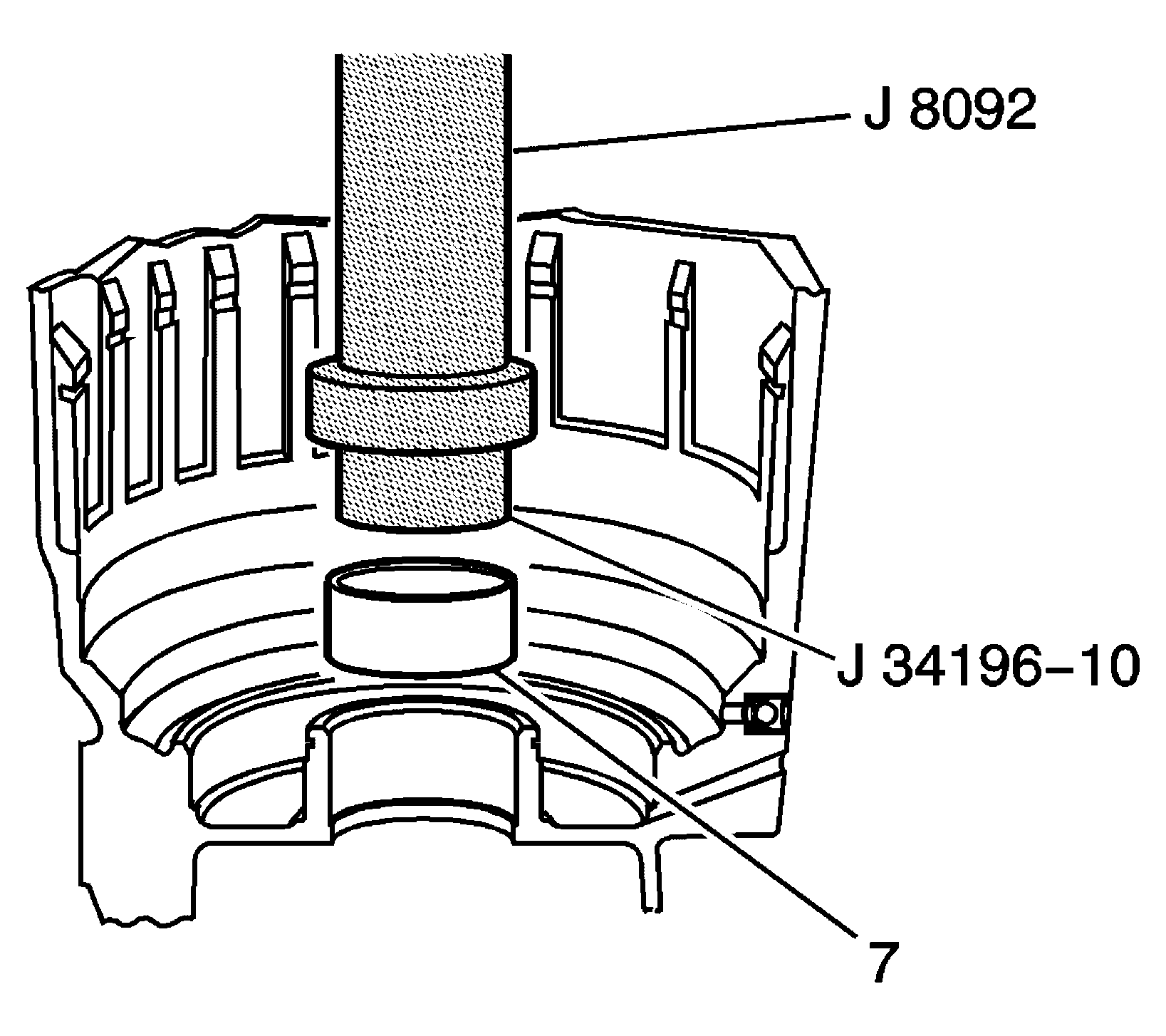

Fig 1: Locating Case Bushing

GM1073791

Courtesy of GENERAL MOTORS CORP.

Install a case bushing (7) using J 8092 and J 34196-10 which is part of kit J 34196-B . See Special Tools .
