Home >> Hummer >> 2003 >> H2 >> Repair and Diagnosis >> Steering >> Steering Column >> Steering Wheel And Column >> Schematic and Routing Diagrams >> Column/Ignition Lock Schematics

Column/Ignition Lock Schematics

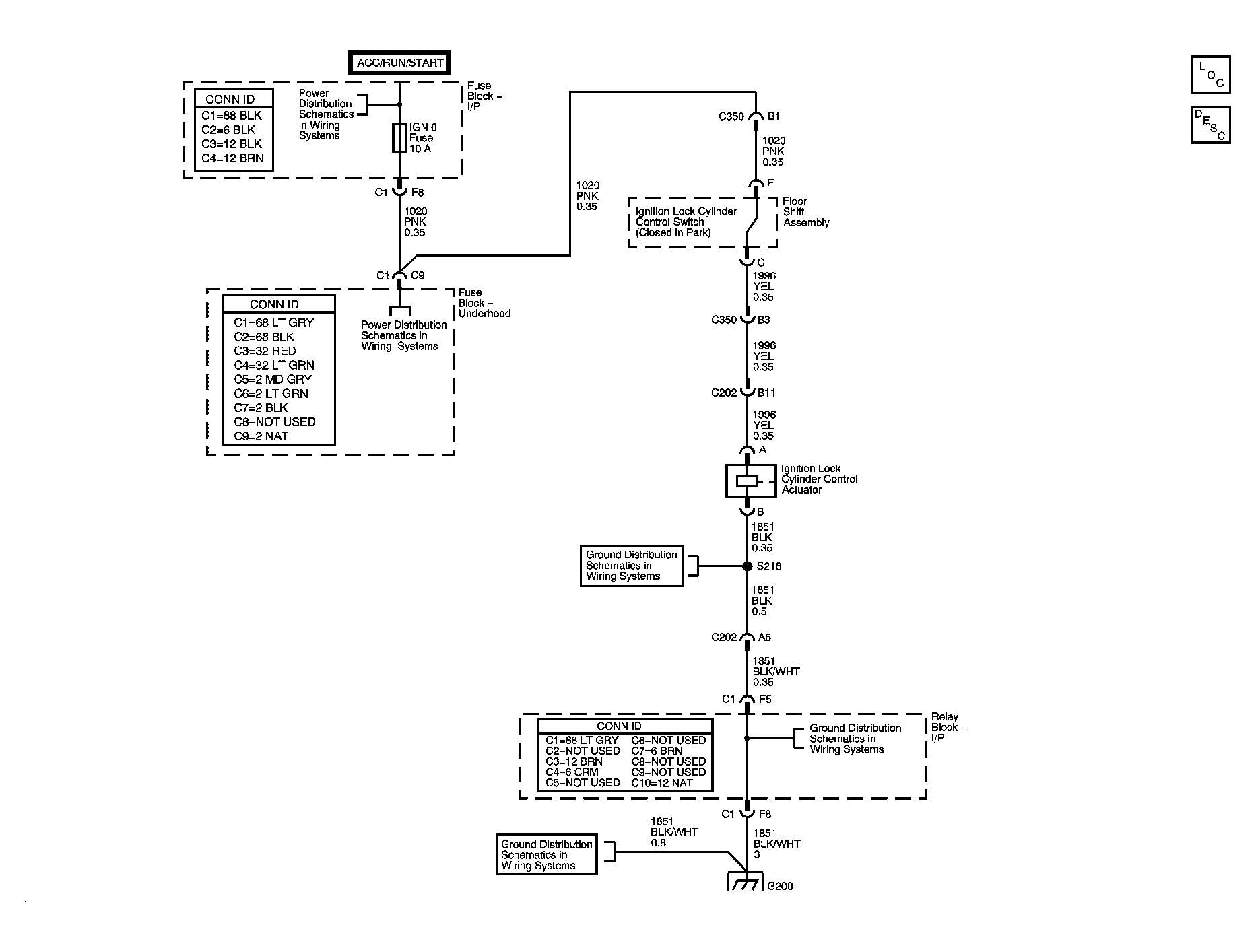

Fig 1: Column/Ignition Lock Schematic
GM849850Courtesy of GENERAL MOTORS CORP.
