Installation Procedure

  1. If the steering wheel has steering wheel controls, install the SIR coil. Refer to Inflatable Restraint Steering Wheel Module Coil Replacement (Coil) .
  2. Connect all of the connectors from the new wire harness assembly.

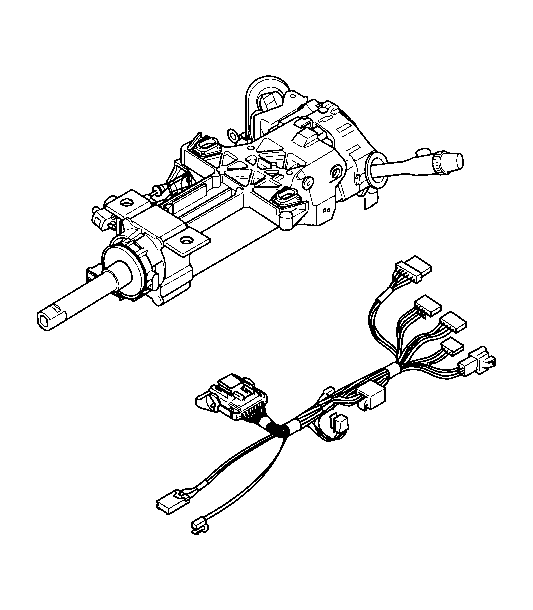

    Fig 1: View Of Steering Column And Wire Harness Assembly
    GM603937Courtesy of GENERAL MOTORS CORP.

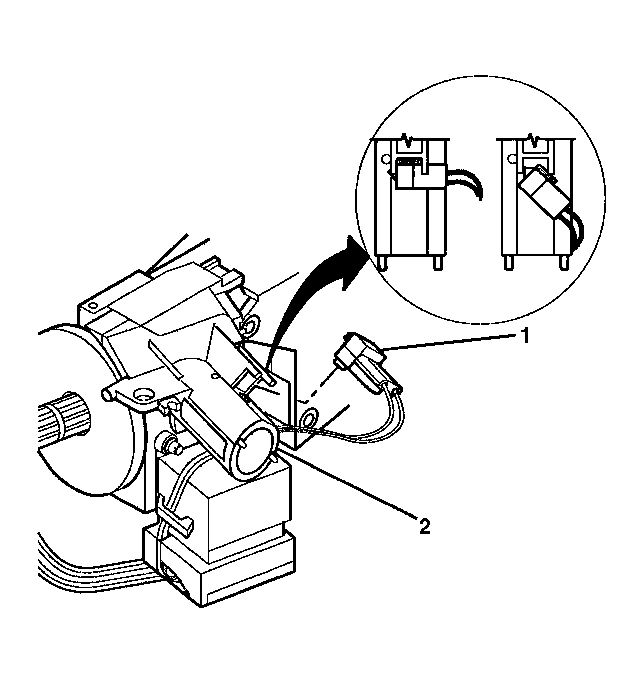

    3. Fig 2: Identifying Key Alarm Connector At Ignition Lock Cylinder Case
    GM306267Courtesy of GENERAL MOTORS CORP.
  3. Push the key alarm connector (1) into the ignition lock cylinder case assembly (2).
  4. Rotate the key alarm connector (1) 90 degrees so that the key alarm connector (1) locks into place.
  5. Install the steering wheel theft deterrent lock. Refer to Steering Wheel Theft Deterrent Lock Replacement .
  6. If equipped, install the theft deterrent control module.
    7. CAUTION: Refer to SIR INFLATOR MODULE COIL CAUTION .
  7. Install the wires back into the ignition switch clip, located on the side of the ignition switch.

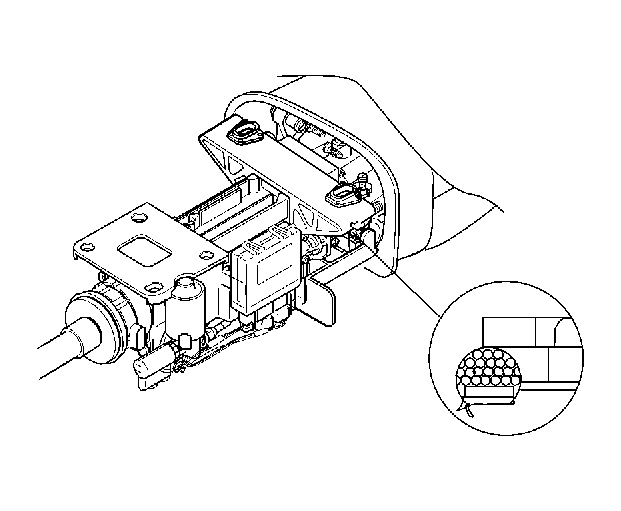

    8. Fig 3: Removing/Installing Plastic Mounted Steering Column Bracket
    GM761444Courtesy of GENERAL MOTORS CORP.
  8. Install the wire harness strap.
  9. Install the upper and lower trim covers. Refer to Steering Column Trim Covers Replacement .
  10. Enable the SIR system. Refer to SIR Disabling and Enabling Zone 3 .
