Ground Distribution Schematics

Fig 1: G105 & G100

GM831103

Courtesy of GENERAL MOTORS CORP.

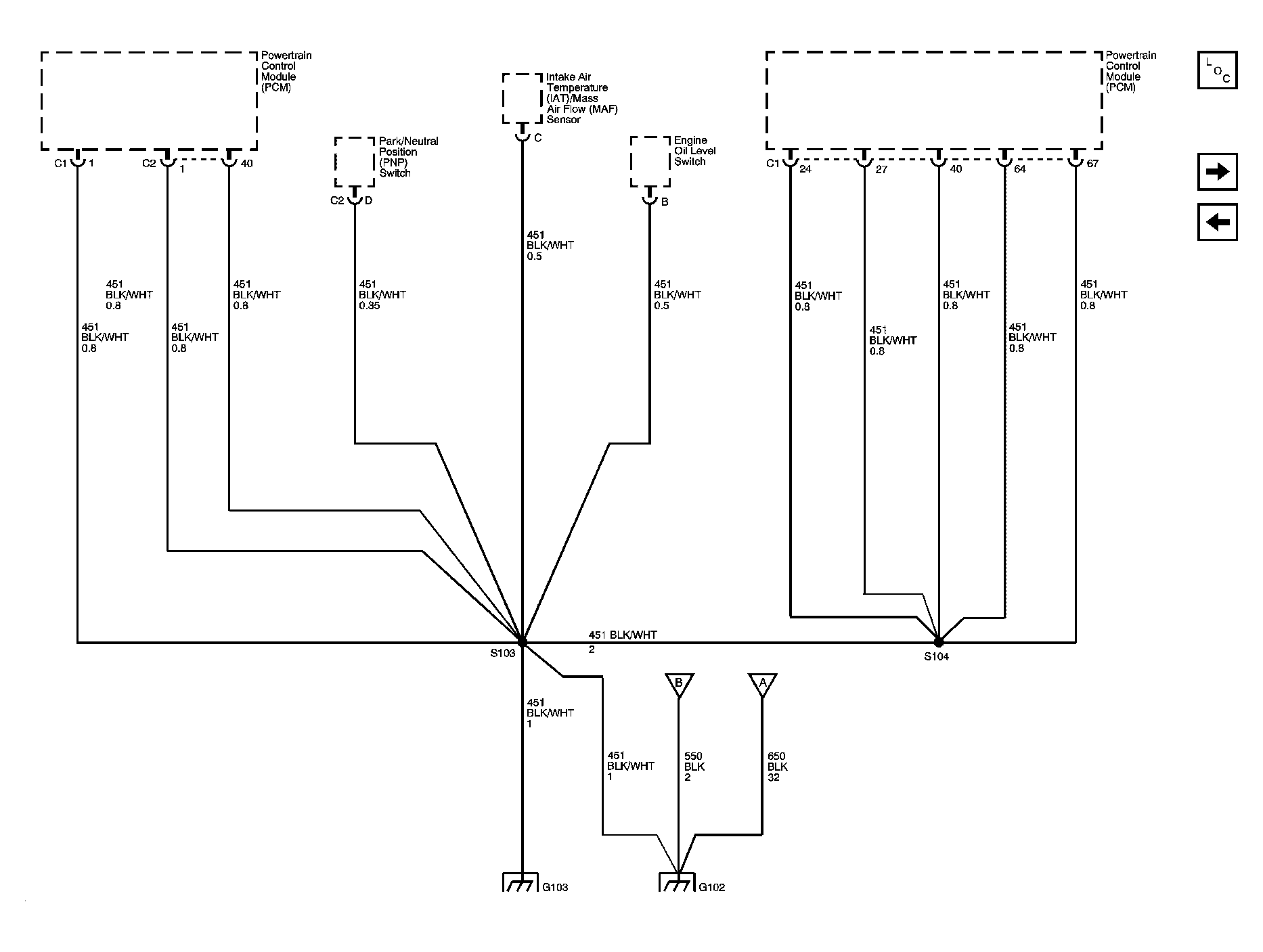

Fig 2: G102 & G103

GM831104

Courtesy of GENERAL MOTORS CORP.

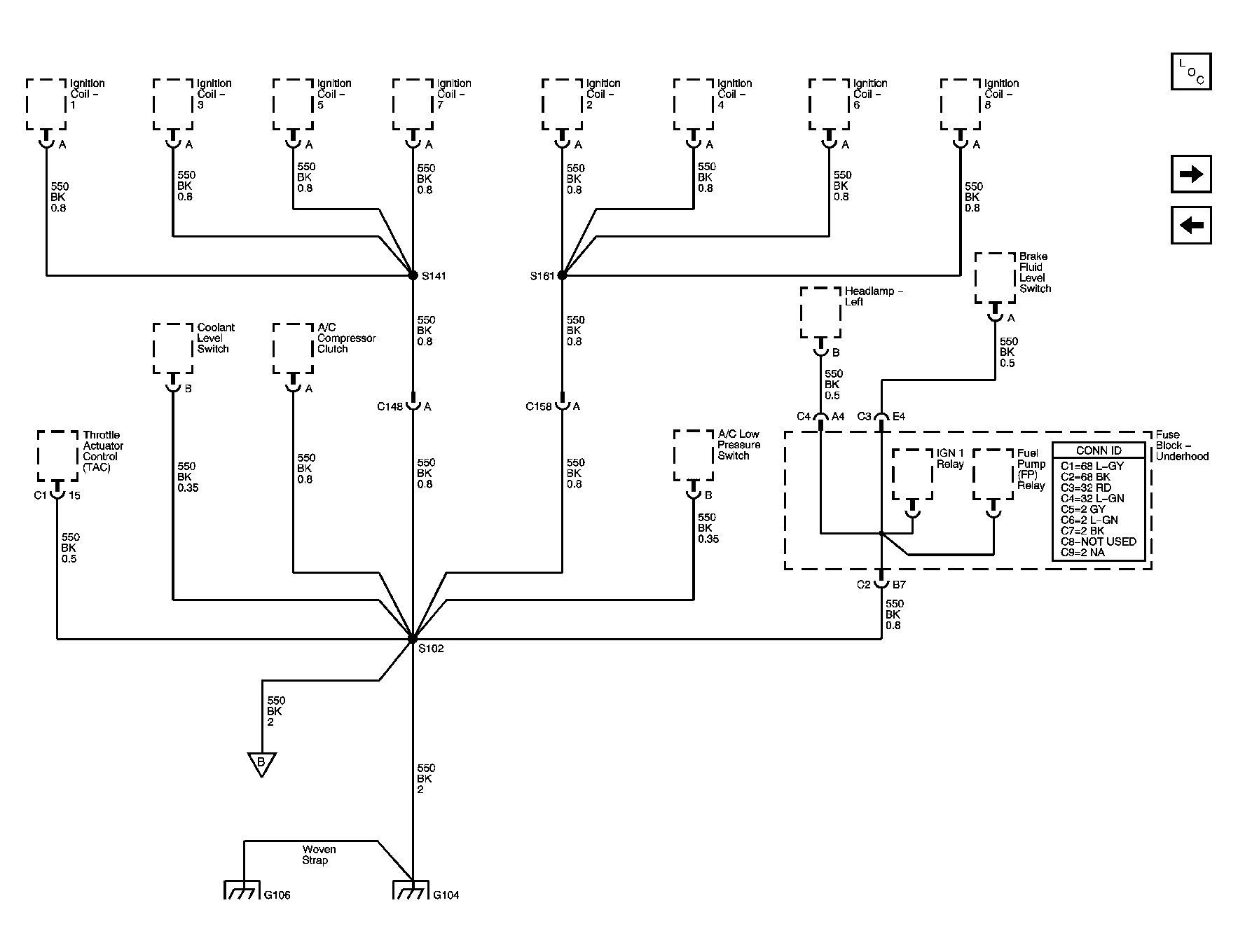

Fig 3: G104 & G106

GM831105

Courtesy of GENERAL MOTORS CORP.

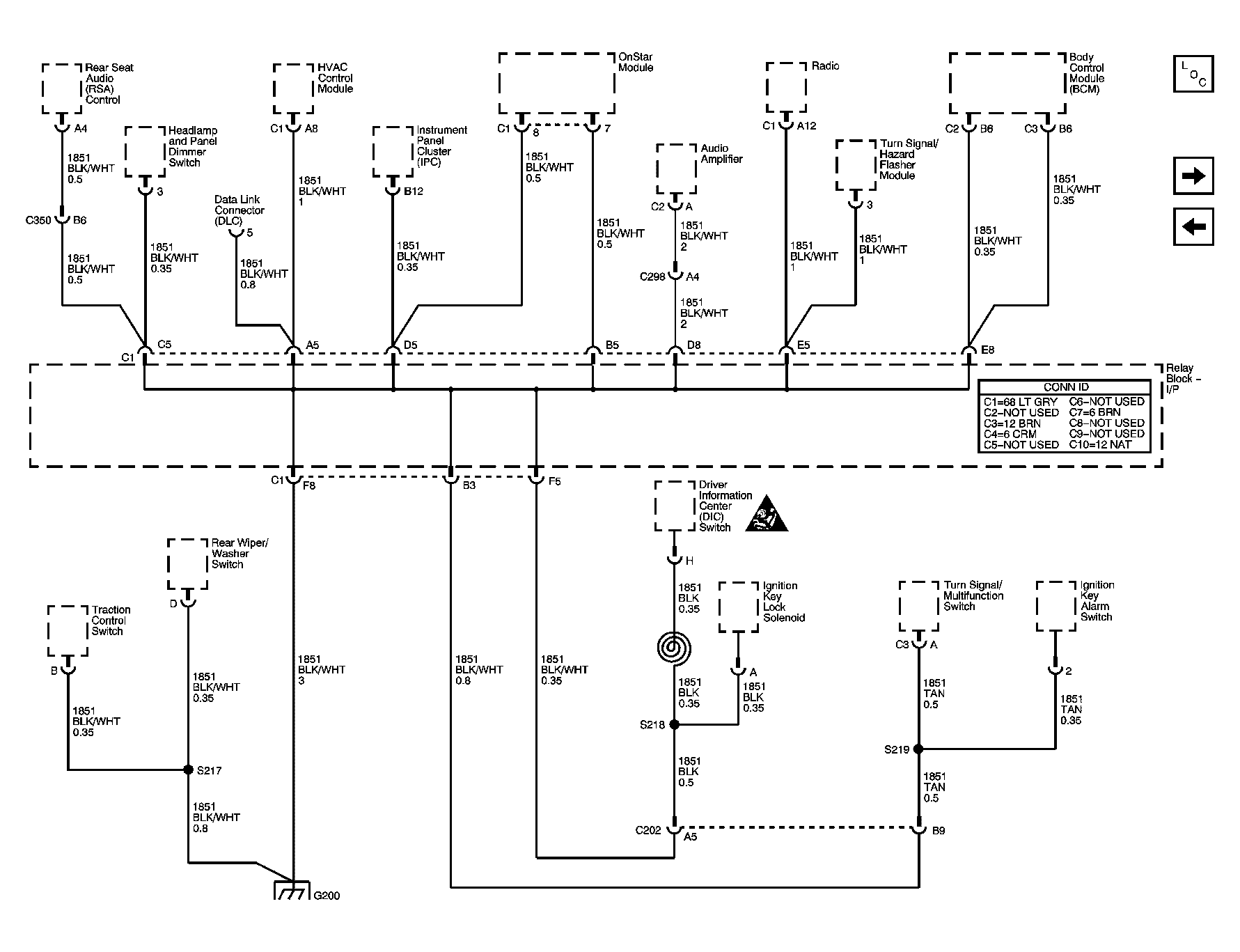

Fig 4: G200

GM831106

Courtesy of GENERAL MOTORS CORP.

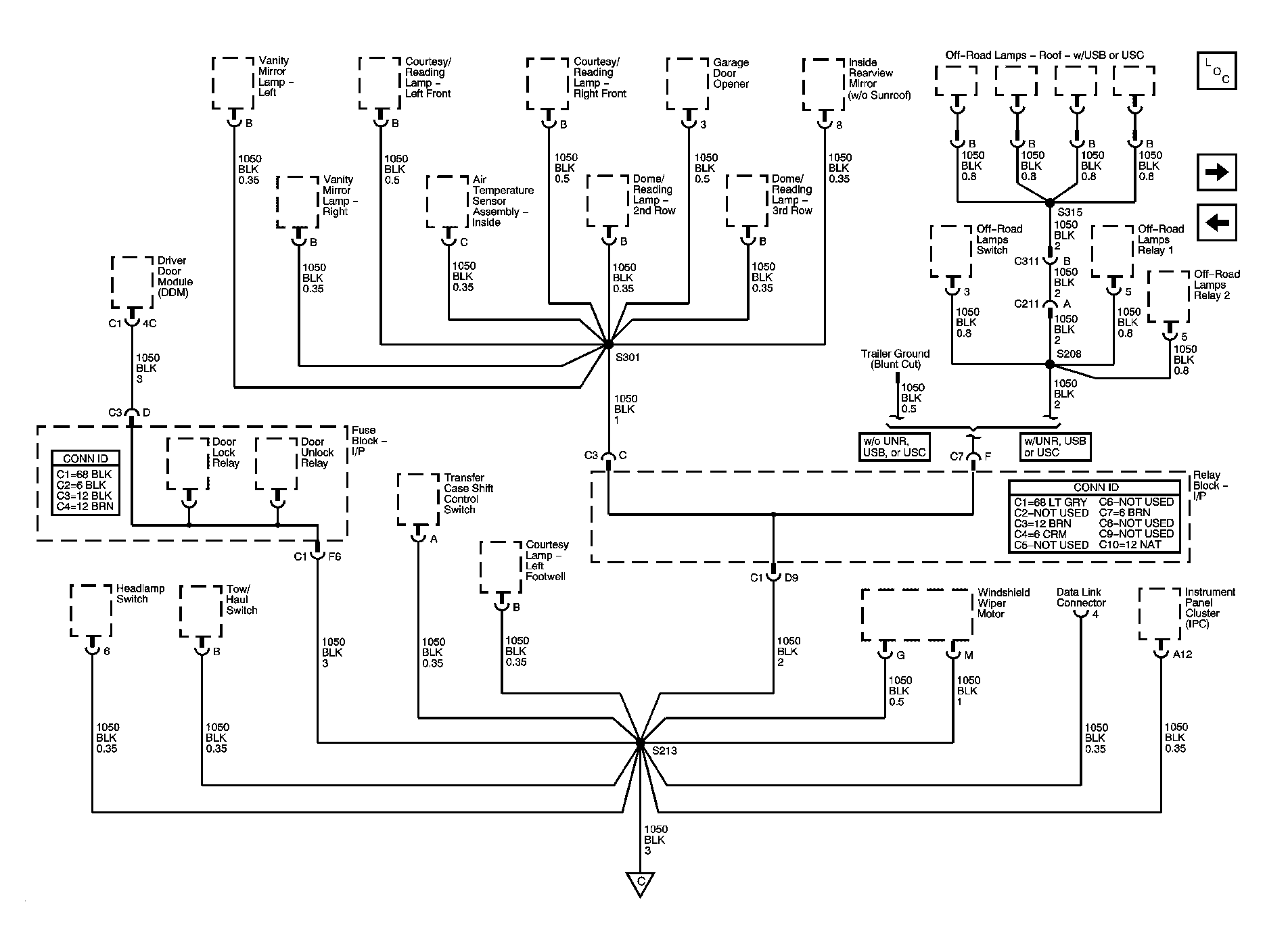

Fig 5: CKT 1050, S213 & S301

GM831107

Courtesy of GENERAL MOTORS CORP.

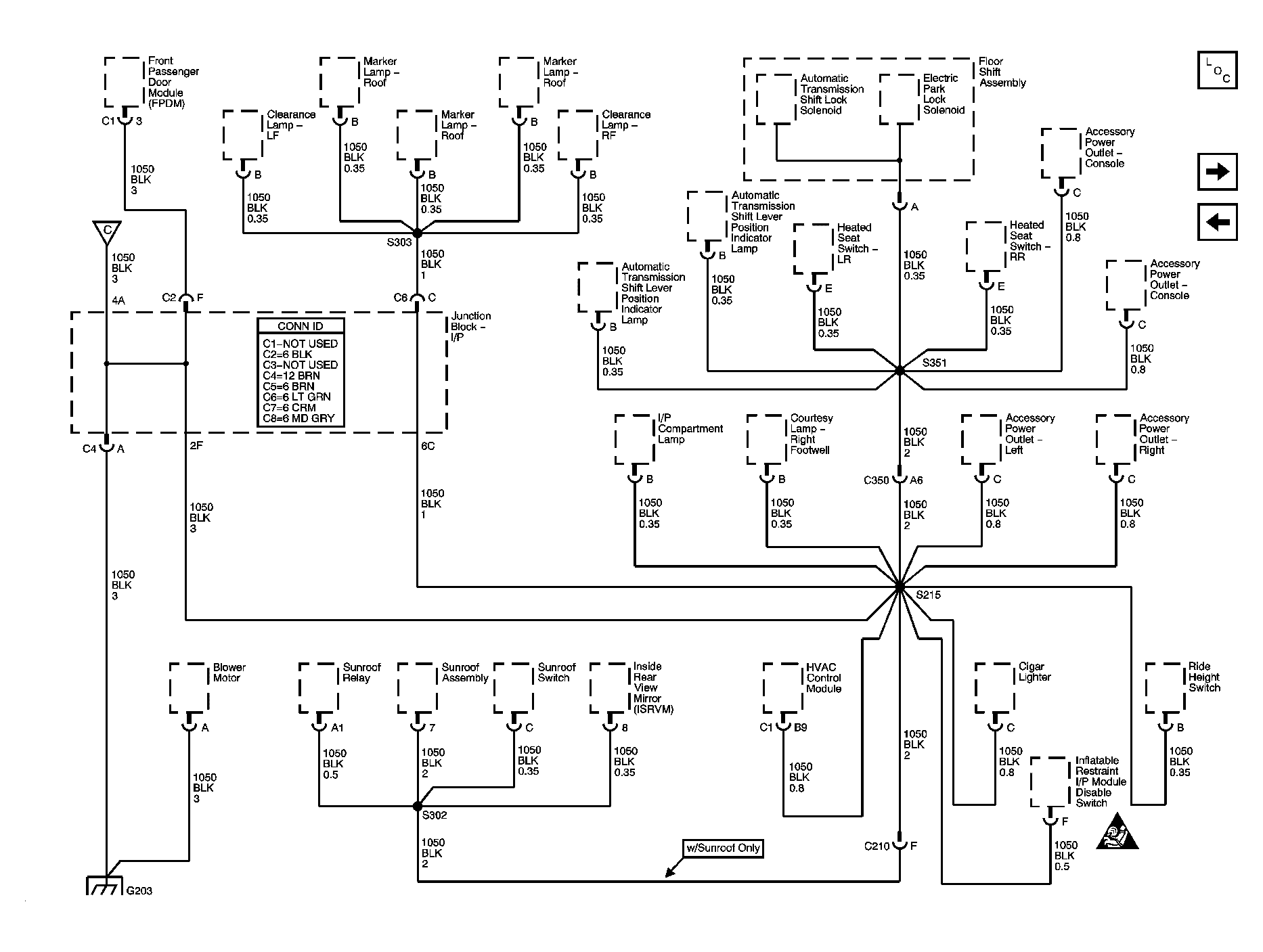

Fig 6: CKT 1050, G203, S215, S302, S303, & S351

GM831108

Courtesy of GENERAL MOTORS CORP.

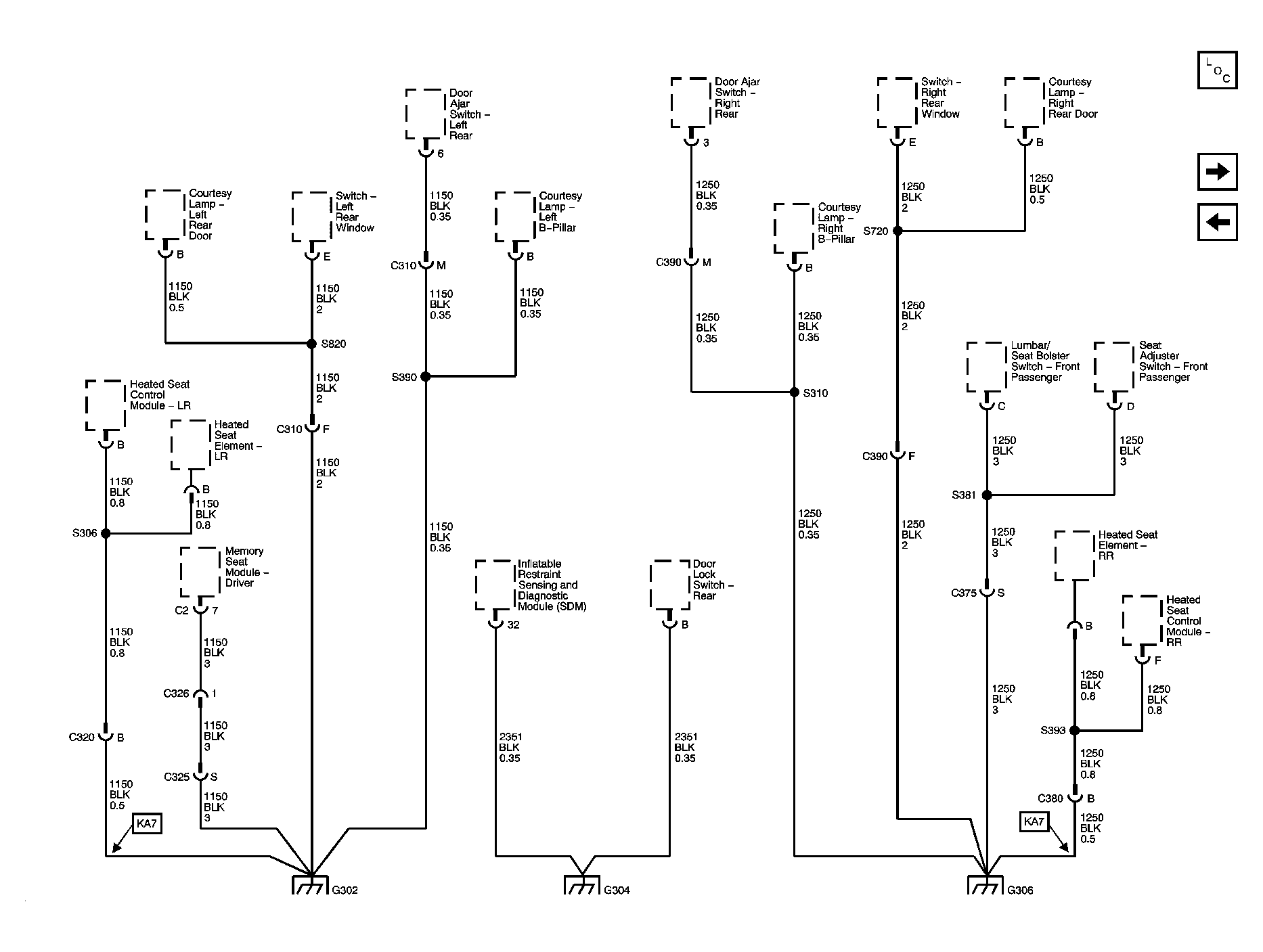

Fig 7: G302, G304, & G306

GM831109

Courtesy of GENERAL MOTORS CORP.

Fig 8: G308, G310, G401, & G300

GM831110

Courtesy of GENERAL MOTORS CORP.

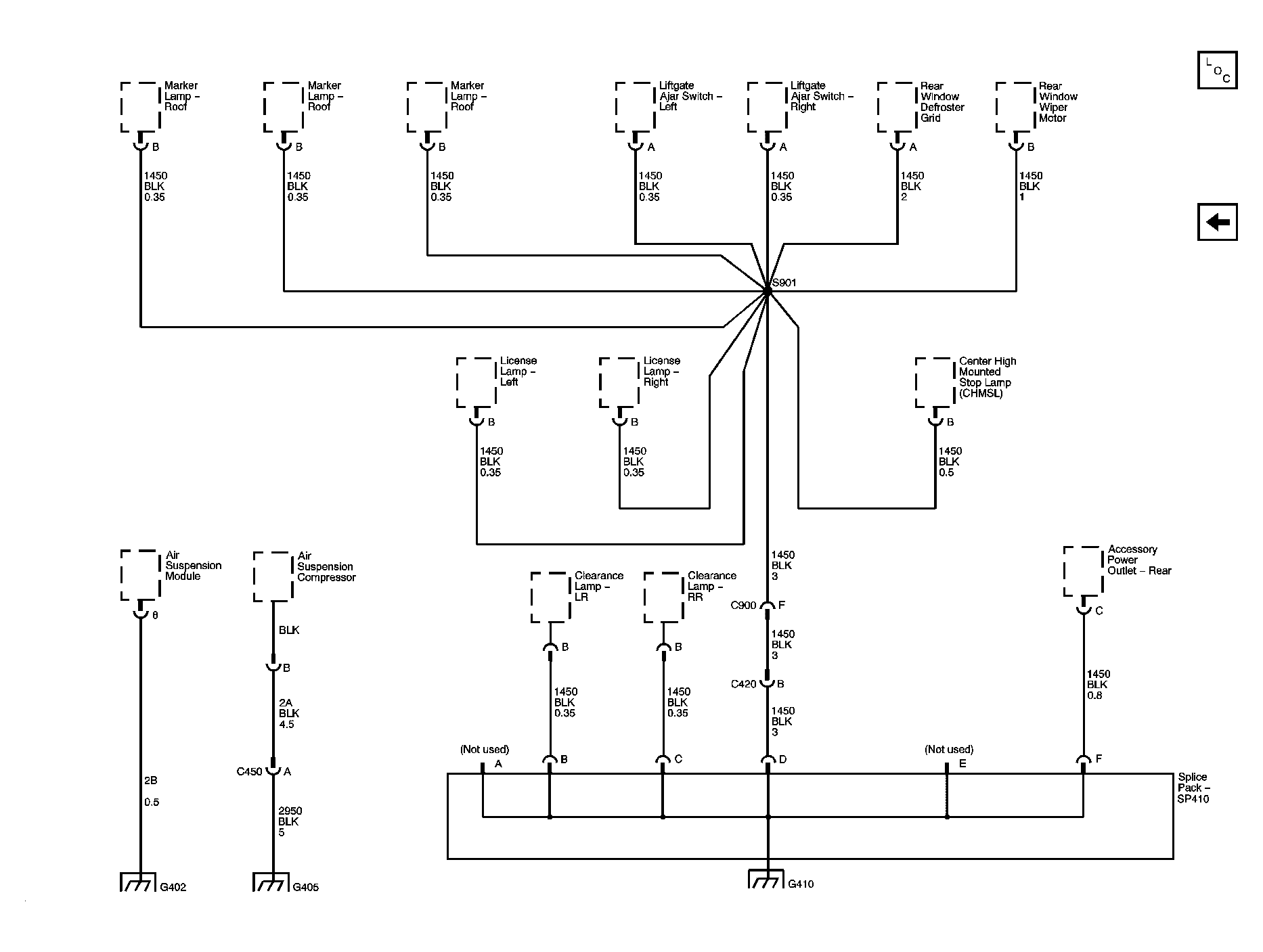

Fig 9: G401, G405, & G410

GM831112

Courtesy of GENERAL MOTORS CORP.
