Park/Neutral Switch Harness Connector End View

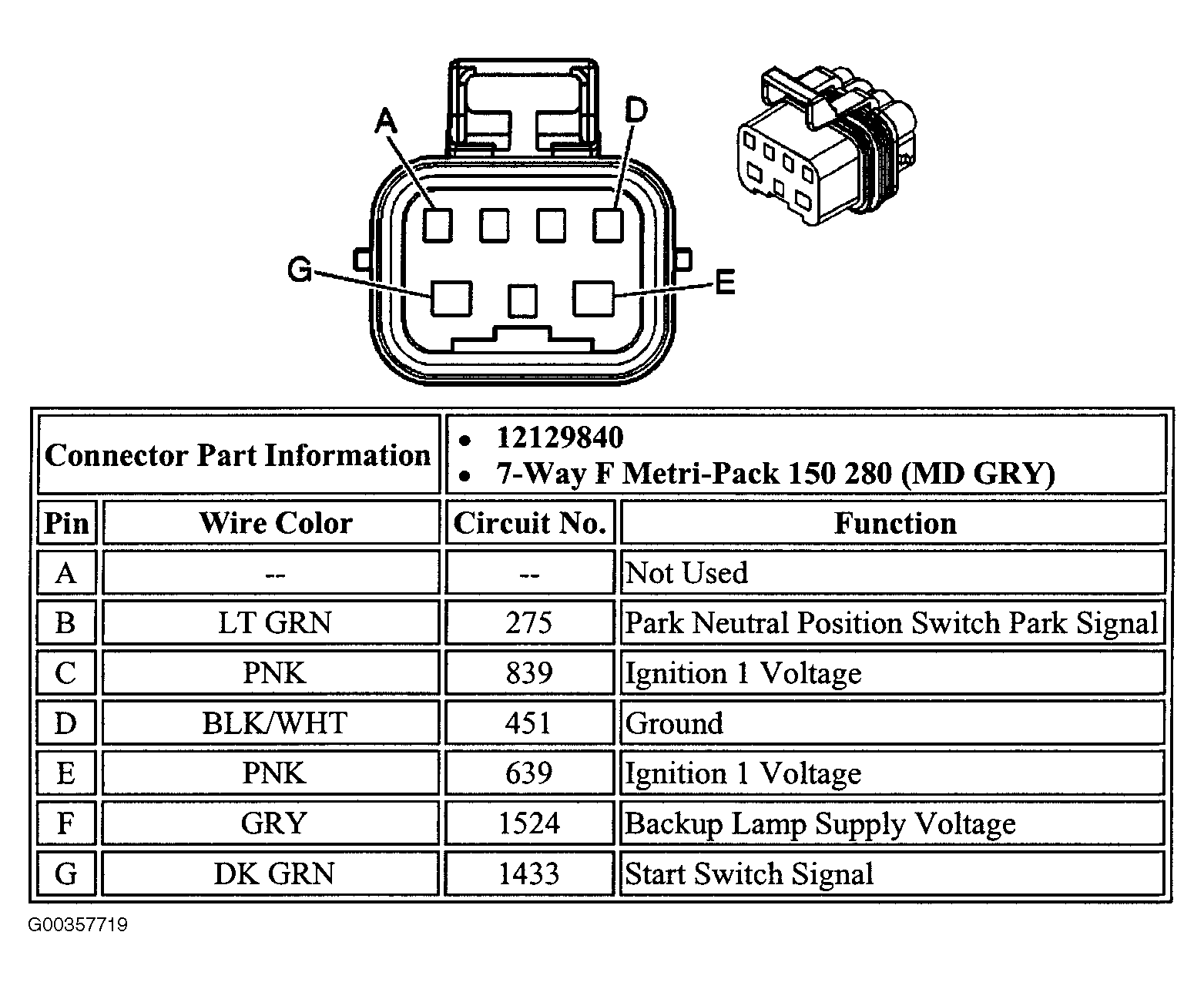

Fig 1: Park/Neutral Switch Harness Connector End View

G00357719

Courtesy of GENERAL MOTORS CORP.
