Ignition Switch Harness Connector End View

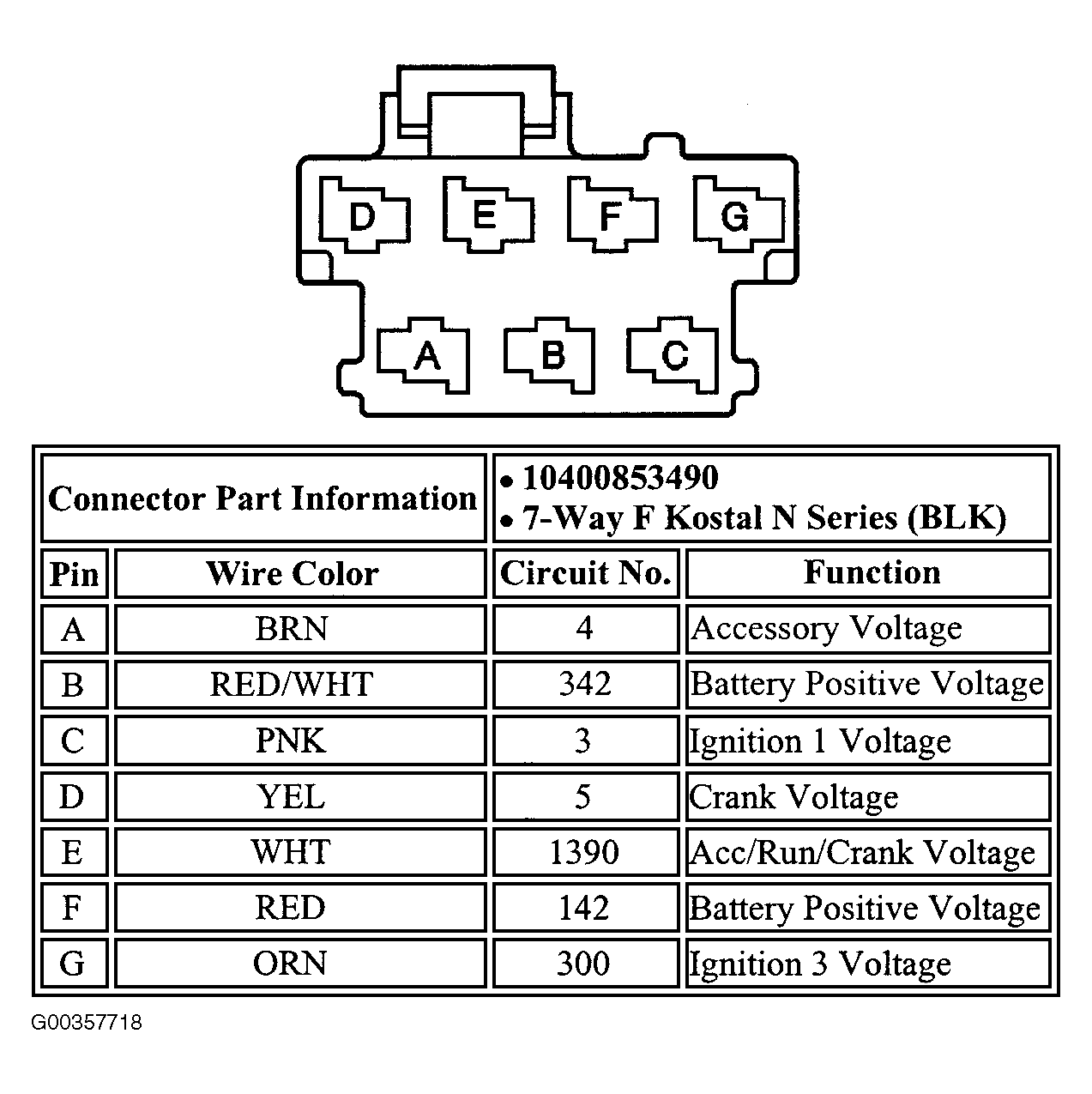

Fig 1: Ignition Switch Harness Connector End View

G00357718

Courtesy of GENERAL MOTORS CORP.
