Radiator Surge Tank Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

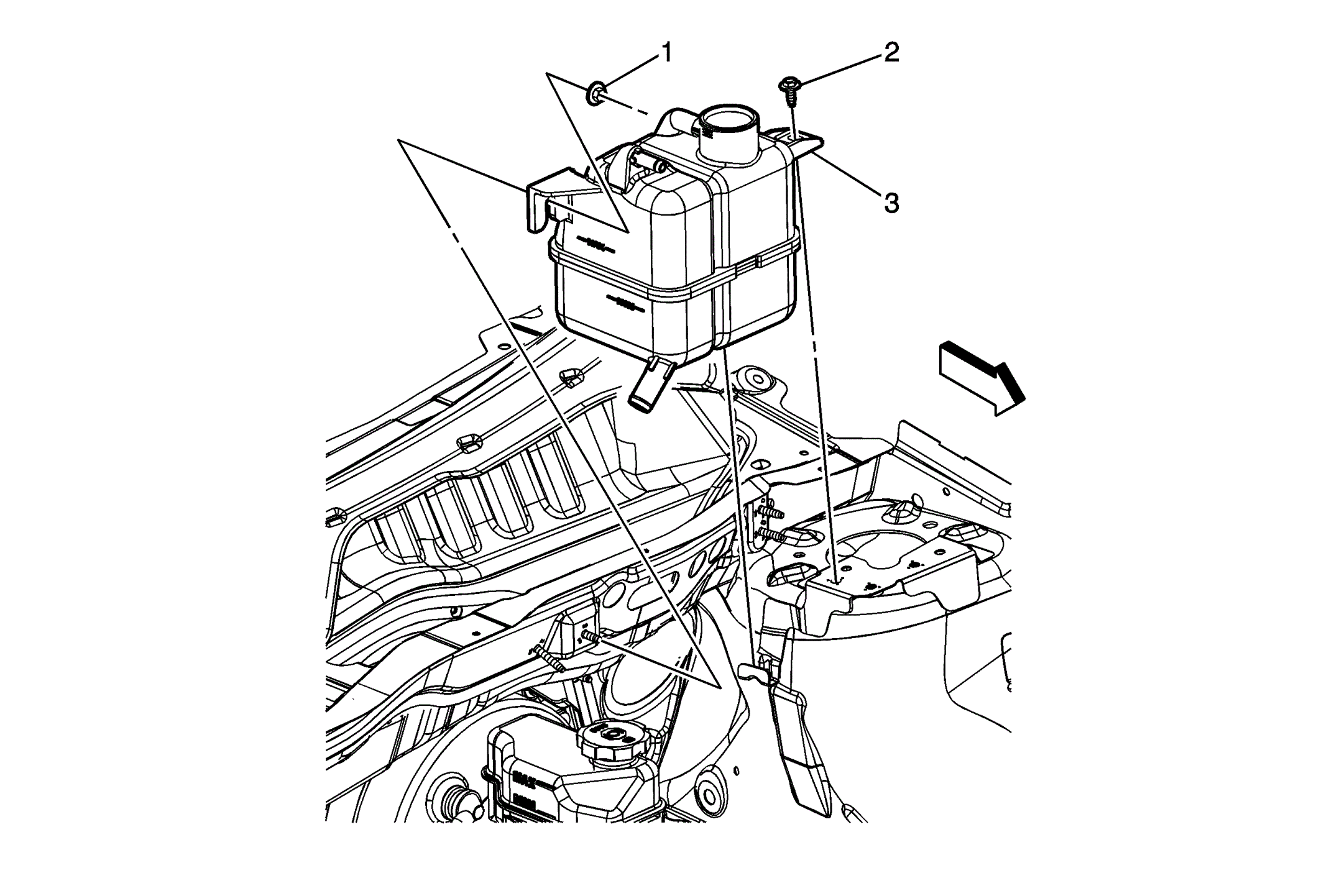

Fig 1: Radiator Surge Tank

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill With HP5) or Cooling System Draining and Filling (Static Fill Without HP5) or Cooling System Draining and Filling (GE 47716 Fill With HP5) or Cooling System Draining and Filling (GE 47716 Fill Without HP5) . Remove surge tank inlet hose from surge tank. Refer to Radiator Surge Tank Inlet Hose/Pipe Replacement (LY7) or Radiator Surge Tank Inlet Hose/Pipe Replacement (LE5) or Radiator Surge Tank Inlet Hose/Pipe Replacement (LAT) or Radiator Surge Tank Inlet Hose/Pipe Replacement (LZ4) . Remove surge tank outlet hose from surge tank. Refer to Radiator Surge Tank Outlet Hose/Pipe Replacement (LZ4) or Radiator Surge Tank Outlet Hose/Pipe Replacement (LY7) or Radiator Surge Tank Outlet Hose/Pipe Replacement (LAT) or Radiator Surge Tank Outlet Hose/Pipe Replacement (LE5) .
1	Surge Tank Nut CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
2	Surge Tank Bolt Tighten: 8 N.m (71 lb in)
3	Surge Tank
