Windshield Wiper Motor Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

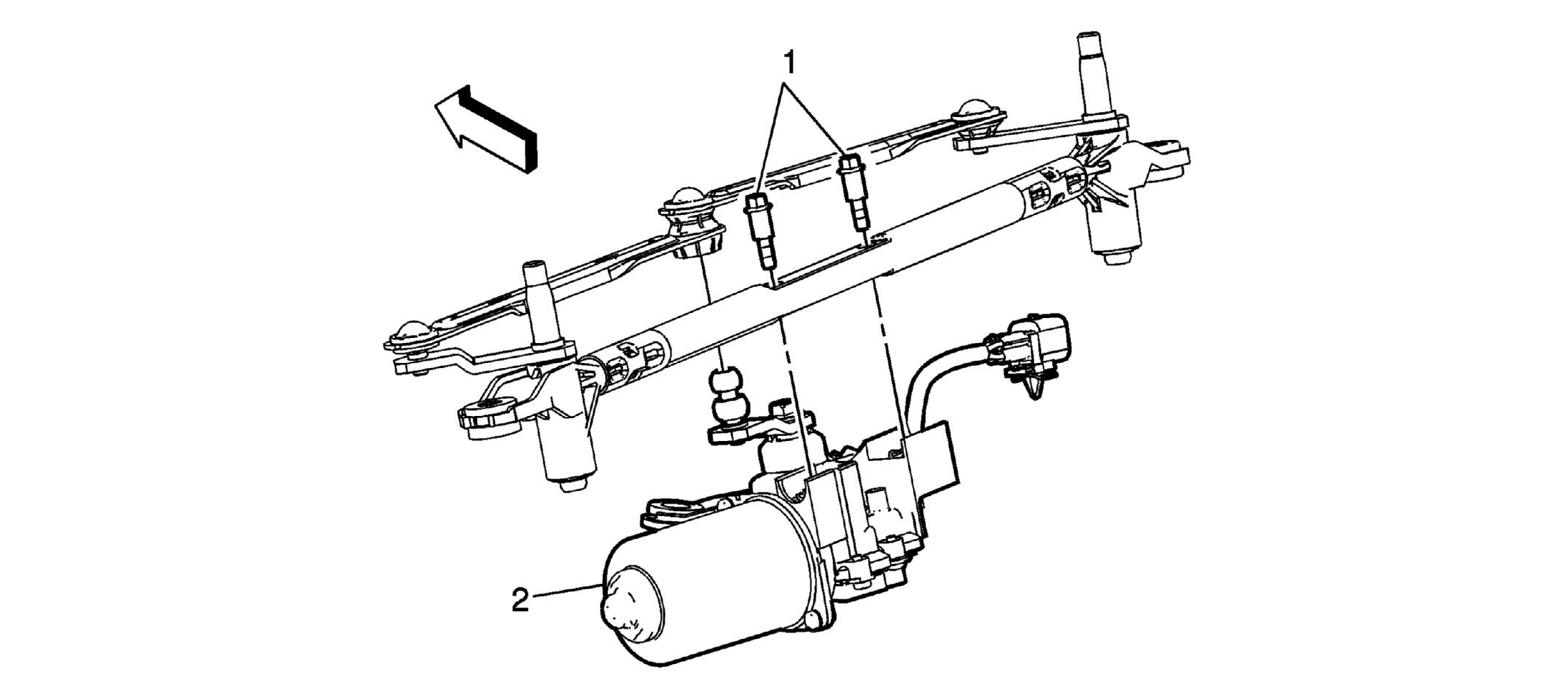

Fig 1: Windshield Wiper Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the windshield wiper transmission frame assembly. Refer to Windshield Wiper Transmission Replacement .
1	Windshield Wiper Motor Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten: 8 N.m (71 lb in)
2	Windshield Wiper Motor Procedure Using a J 39232 Wiper Linkage Separator or similar tool remove the transmission drive links from the wiper motor crank arm ball stud. Using a J 39529 Wiper Linkage Installer or similar tool install the wiper transmission drive links onto the wiper motor crank arm ball stud. Tip: Apply a small amount of grease to the inner cup on the transmission links to aid in installation.

Callout

Component Name

Preliminary Procedure:
Remove the windshield wiper transmission frame assembly. Refer to Windshield Wiper Transmission Replacement .

Windshield Wiper Motor Bolt (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten: 8 N.m (71 lb in)

Windshield Wiper Motor

Procedure

Using a J 39232 Wiper Linkage Separator or similar tool remove the transmission drive links from the wiper motor crank arm ball stud.
Using a J 39529 Wiper Linkage Installer or similar tool install the wiper transmission drive links onto the wiper motor crank arm ball stud.

Tip: Apply a small amount of grease to the inner cup on the transmission links to aid in installation.
