Installation Procedure
WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
- In order to repair the damaged section of washer hose, use the following steps:

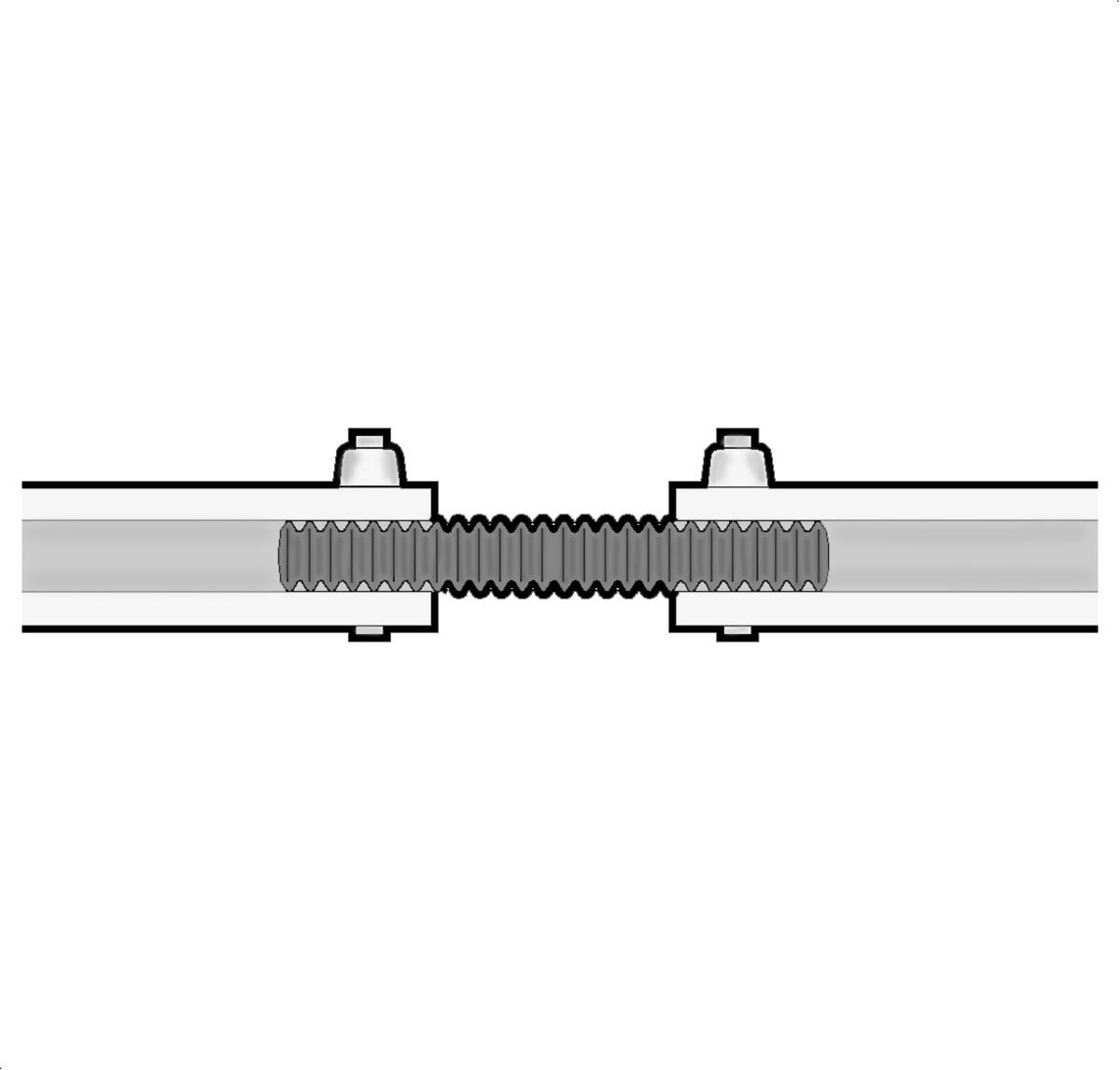

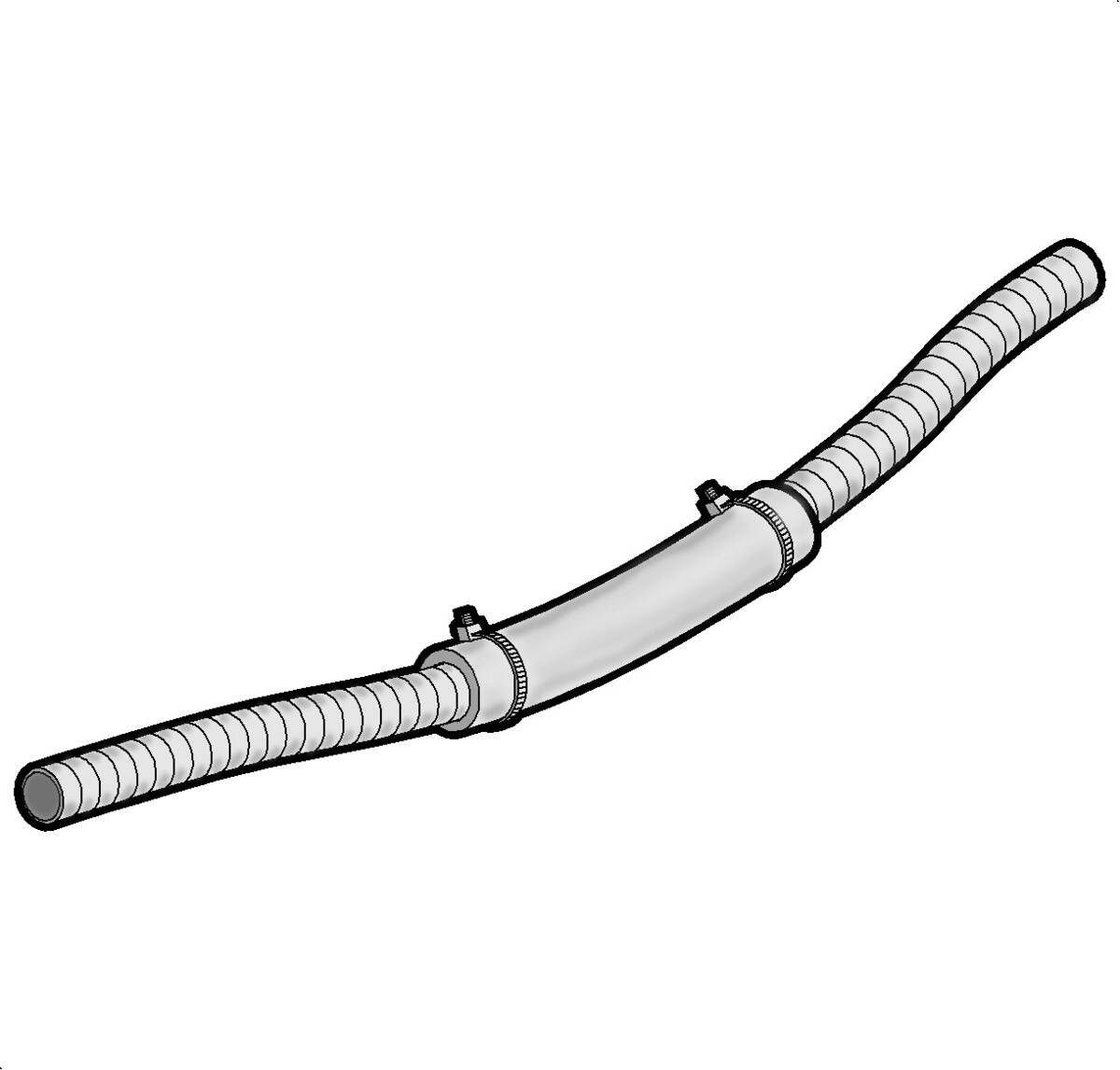

- Use a 9.5 mm (3/8 in) vacuum hose to replace damaged section.
- Overlap the washer hose onto the plastic tubing by, 12.5 mm (0.50 in) on each end.
- Secure each end of the vacuum hose with a 100 mm (4 in) cable tie.
- Verify the repair by activating the front and rear (if equipped) washer system and check the system for leaks.
- If the leak was located inside the main body wire harness or conduit, use electrical tape to retain the repaired section to the electrical wire harness conduit.
- If the leak was located external from the conduit, secure the hose with cable ties to prevent unnecessary movement and noise.
- If the leak requires the washer hose to be removed in the front of dash panel grommet complete the following:
- Carefully slit the grommet next to the original washer hose.
- Pass the new section of the washer hose through, next to the existing grommet tubing.
- Repair the hose on either side of the grommet.
- Use small tie straps to secure the hose onto the washer tubing.
- Verify the repair by operating the washer system.
- Seal any openings in the grommet, larger than the hose that was passed through.
