Liftgate Wiper Motor Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

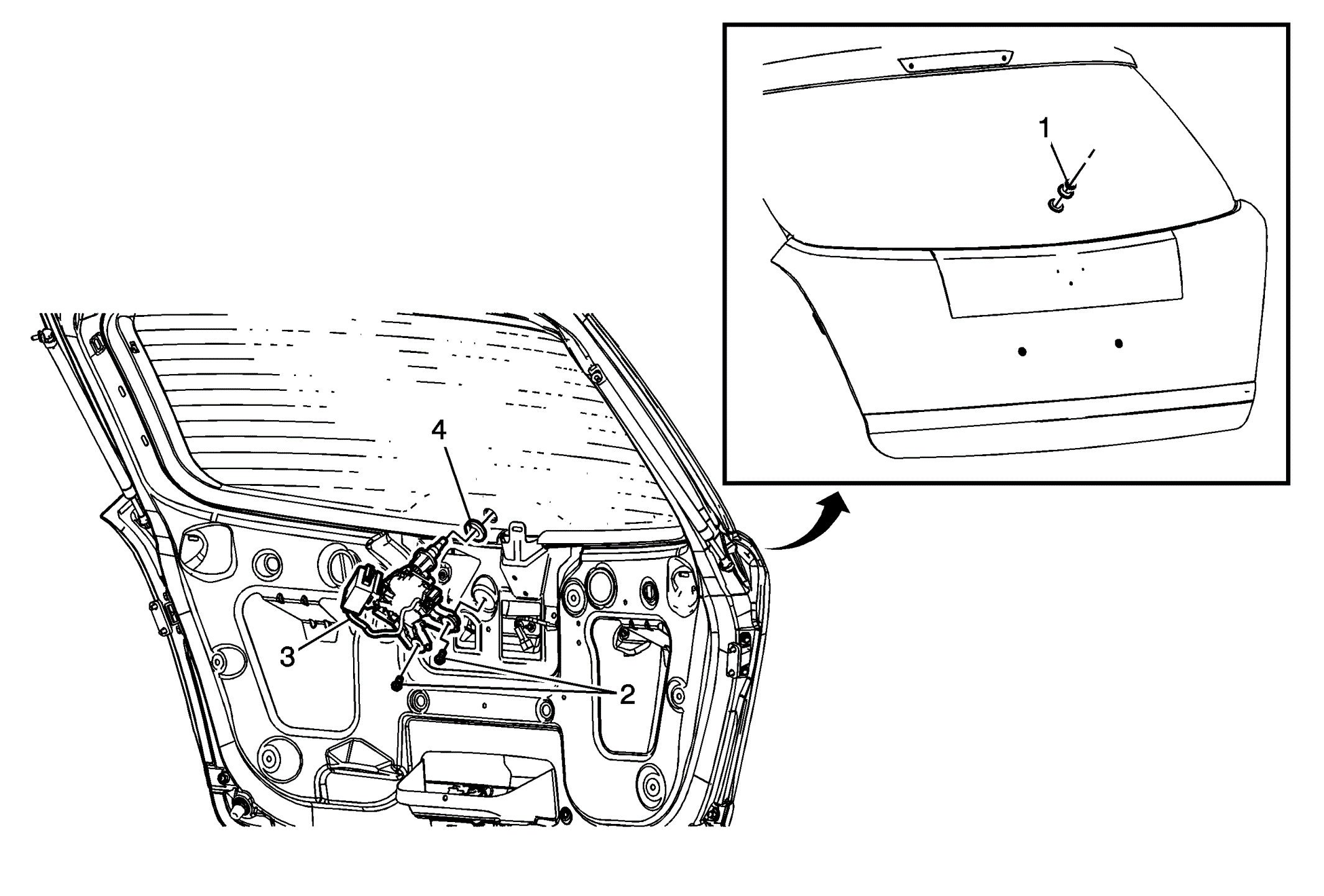

Fig 1: Liftgate Wiper Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear liftgate wiper arm assembly. Refer to Rear Window Wiper Arm Replacement . Remove the liftgate interior trim panel. Refer to Liftgate Trim Panel Replacement .
1	Rear Window Wiper Motor Pivot Shaft Nut CAUTION: Refer to Fastener Caution . Tighten: 25 N.m (18 lb ft)
2	Rear Window Wiper Motor Bolts Tighten: 10 N.m (89 lb in)
3	Rear Window Wiper Motor Tip: Disconnect the wiper motor electrical connectors.
4	Rear Window Wiper Motor Pivot Shaft Gasket Tip: Ensure the gasket is indexed properly to the rear liftgate window.
