Removal Procedure
WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
- If necessary, remove the engine sight shield. Refer to ENGINE SIGHT SHIELD REPLACEMENT (4.8L, 5.3L, AND 6.0L ENGINES) or ENGINE SIGHT SHIELD REPLACEMENT (6.0L ENGINE W/RPOS Y91 AND Z88) .

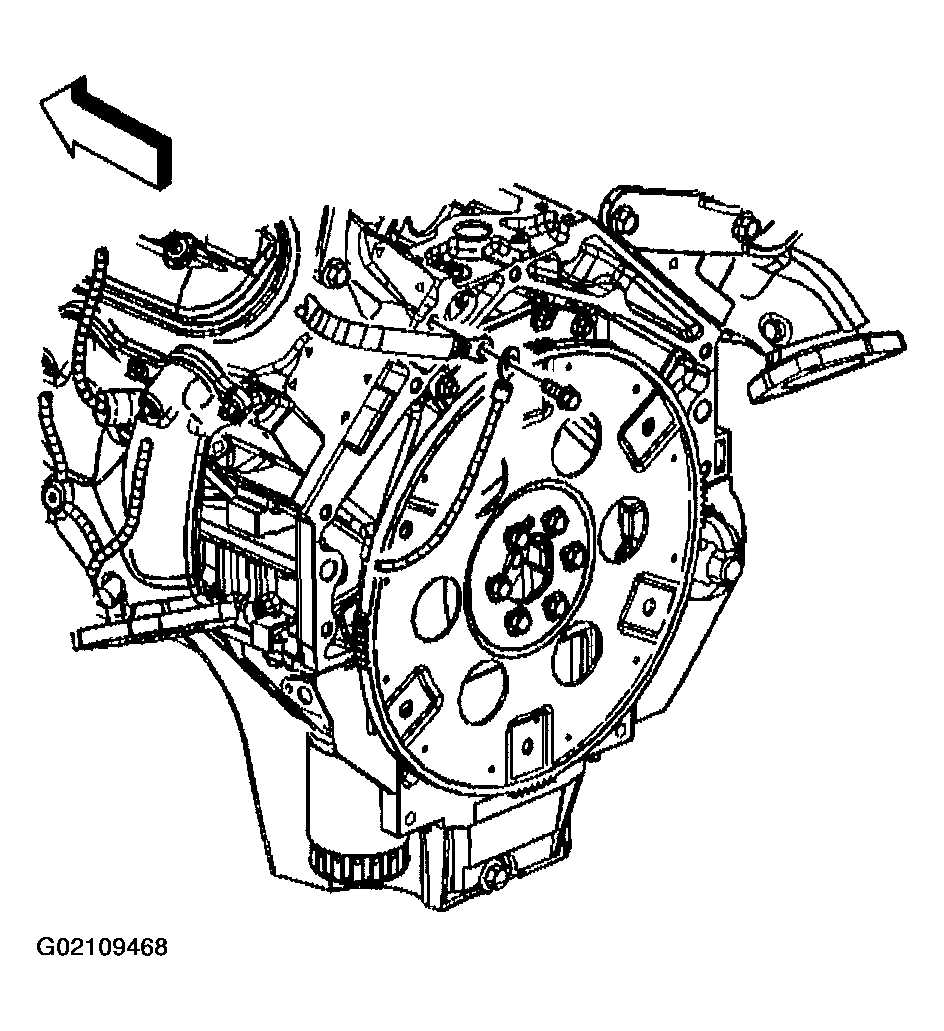

- Remove the engine wiring harness ground bolt.
- Reposition the engine wiring harness ground and ground strap.

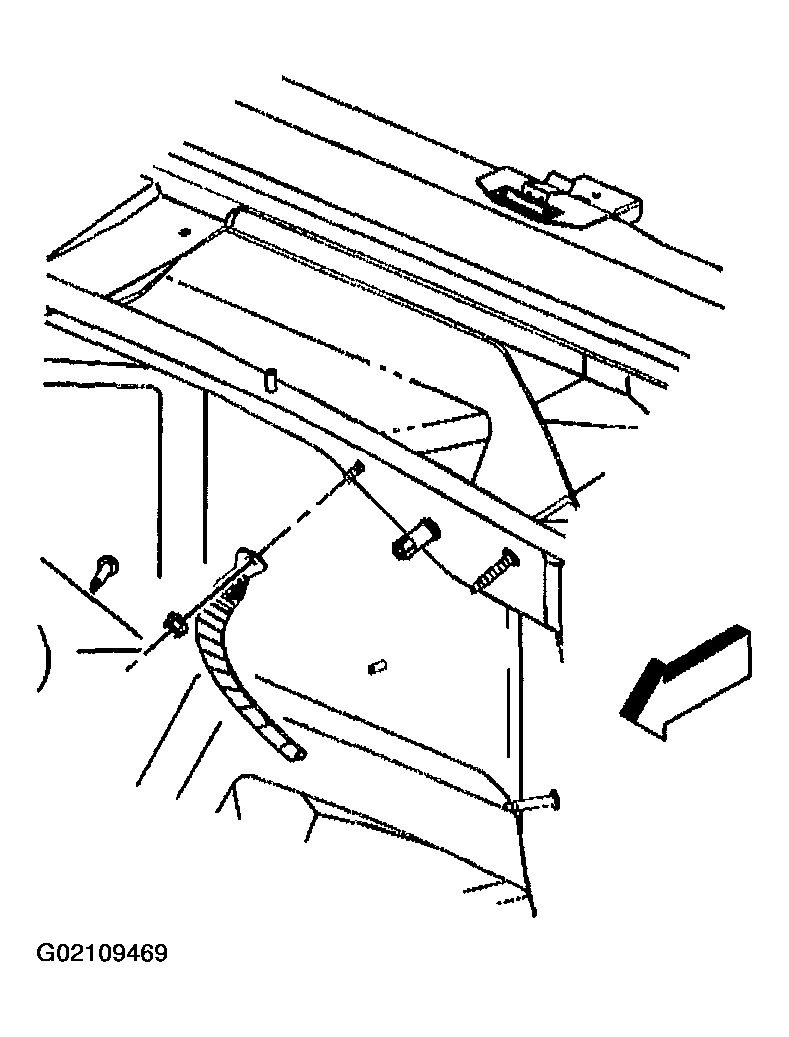

- Remove the ground strap nut from the stud at the front of dash.
- Remove the ground strap from the stud.
