Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery. Refer to Battery Replacement .
  2. Remove the battery tray bolts from the battery tray reinforcement.

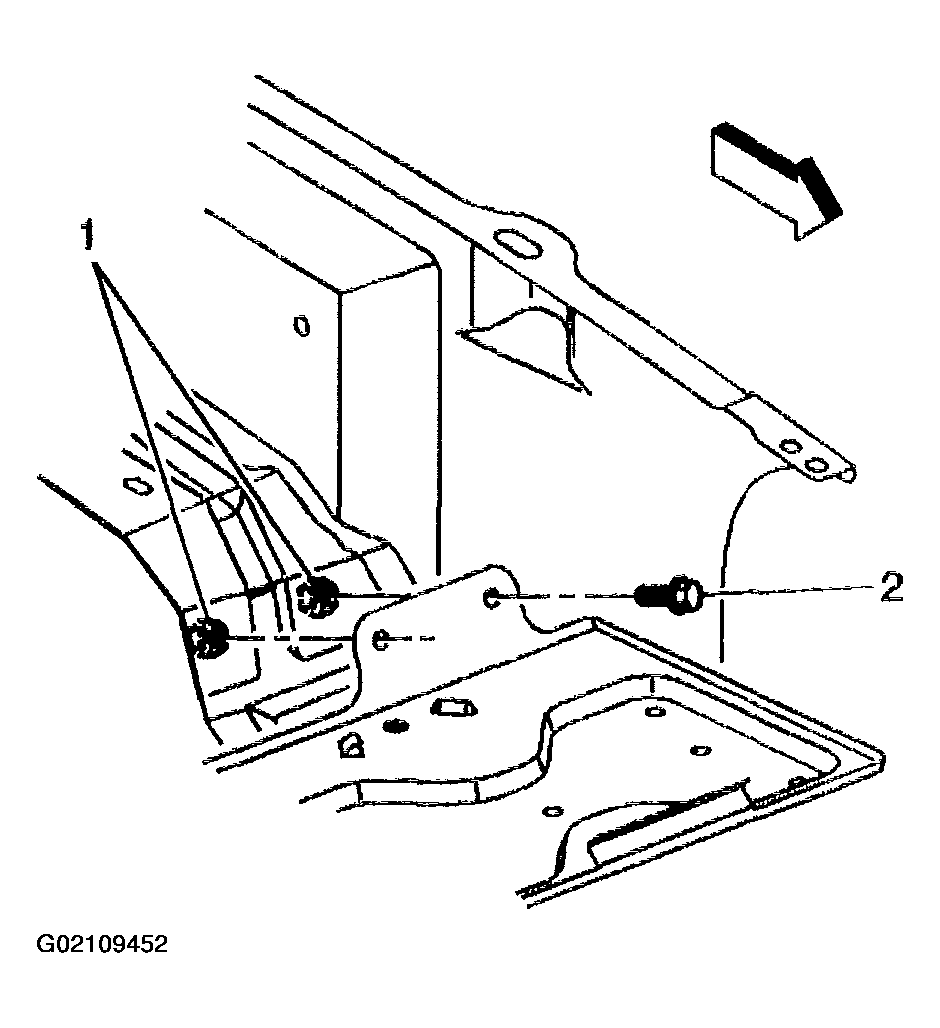

    Fig 1: Remove Battery Tray Bolts
    G02109452Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery tray bolts from the fender inner panel.

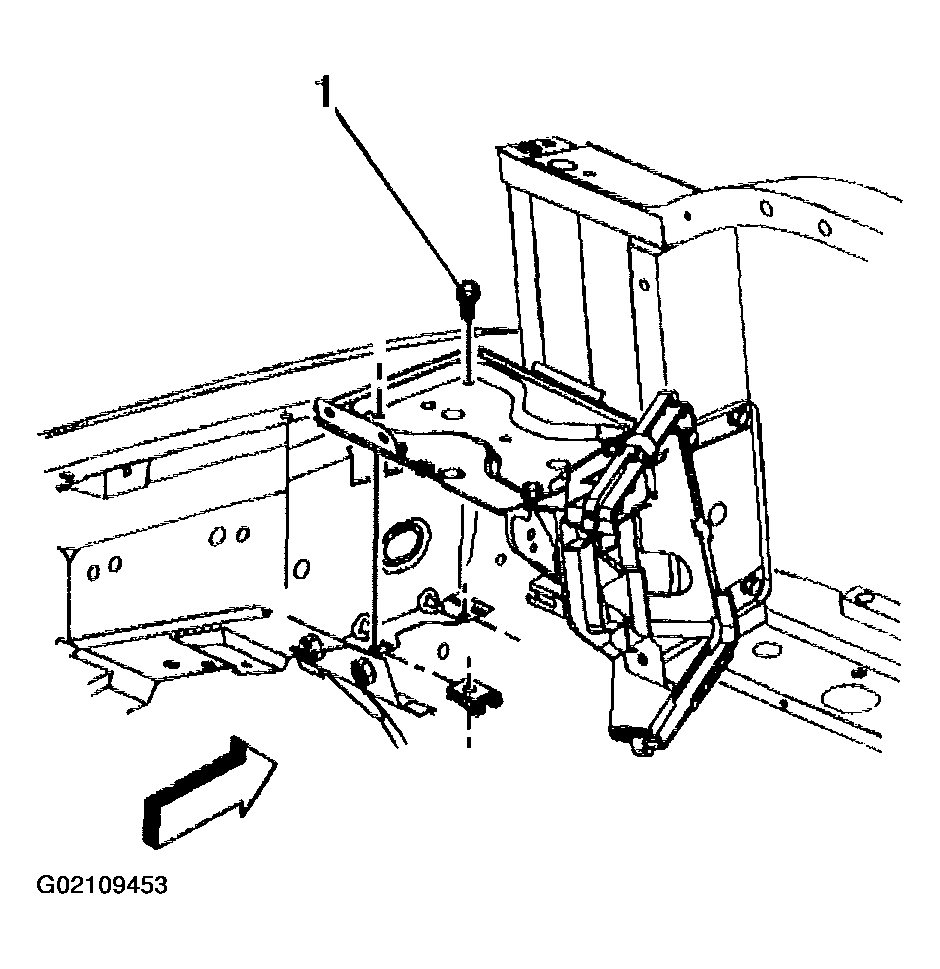

    Fig 2: Remove Battery Tray Bolts
    G02109453Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery tray bolts from the battery tray support.
  5. Remove the battery tray.

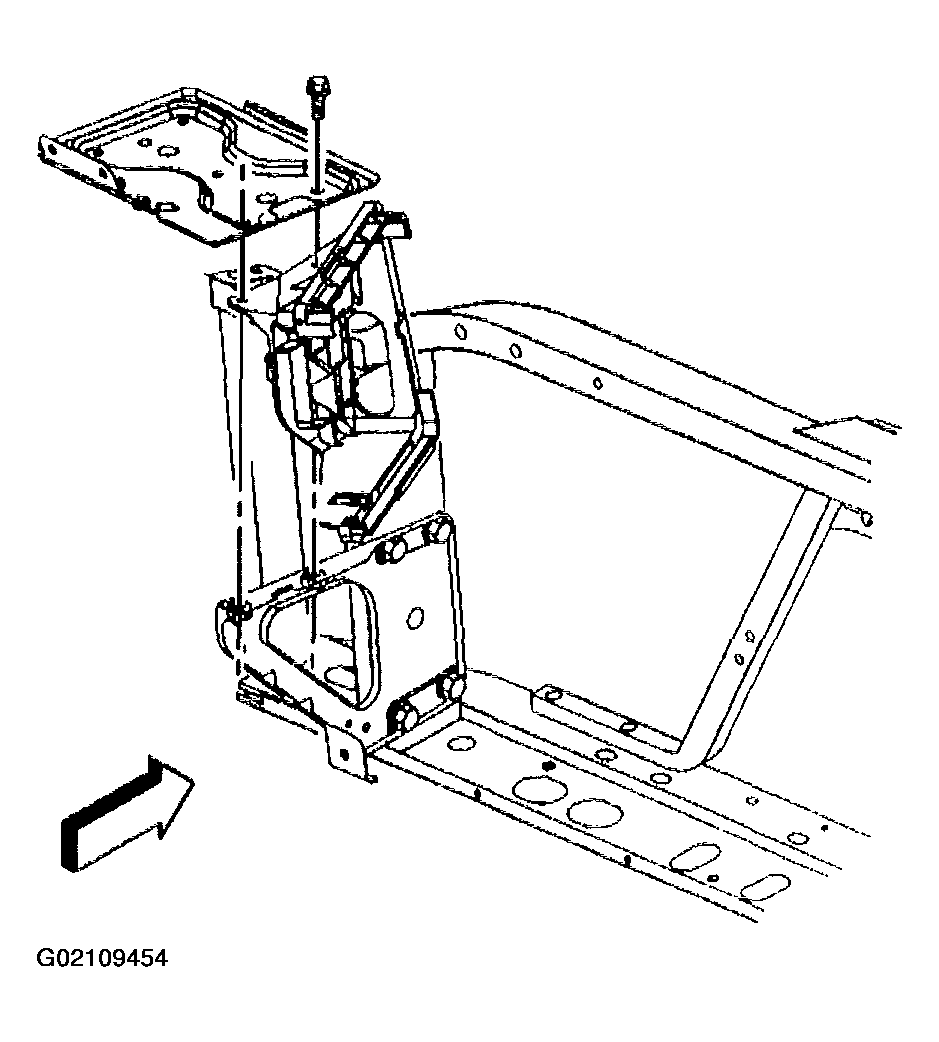

    Fig 3: Remove Battery Tray & Bolts
    G02109454Courtesy of GENERAL MOTORS CORP.
