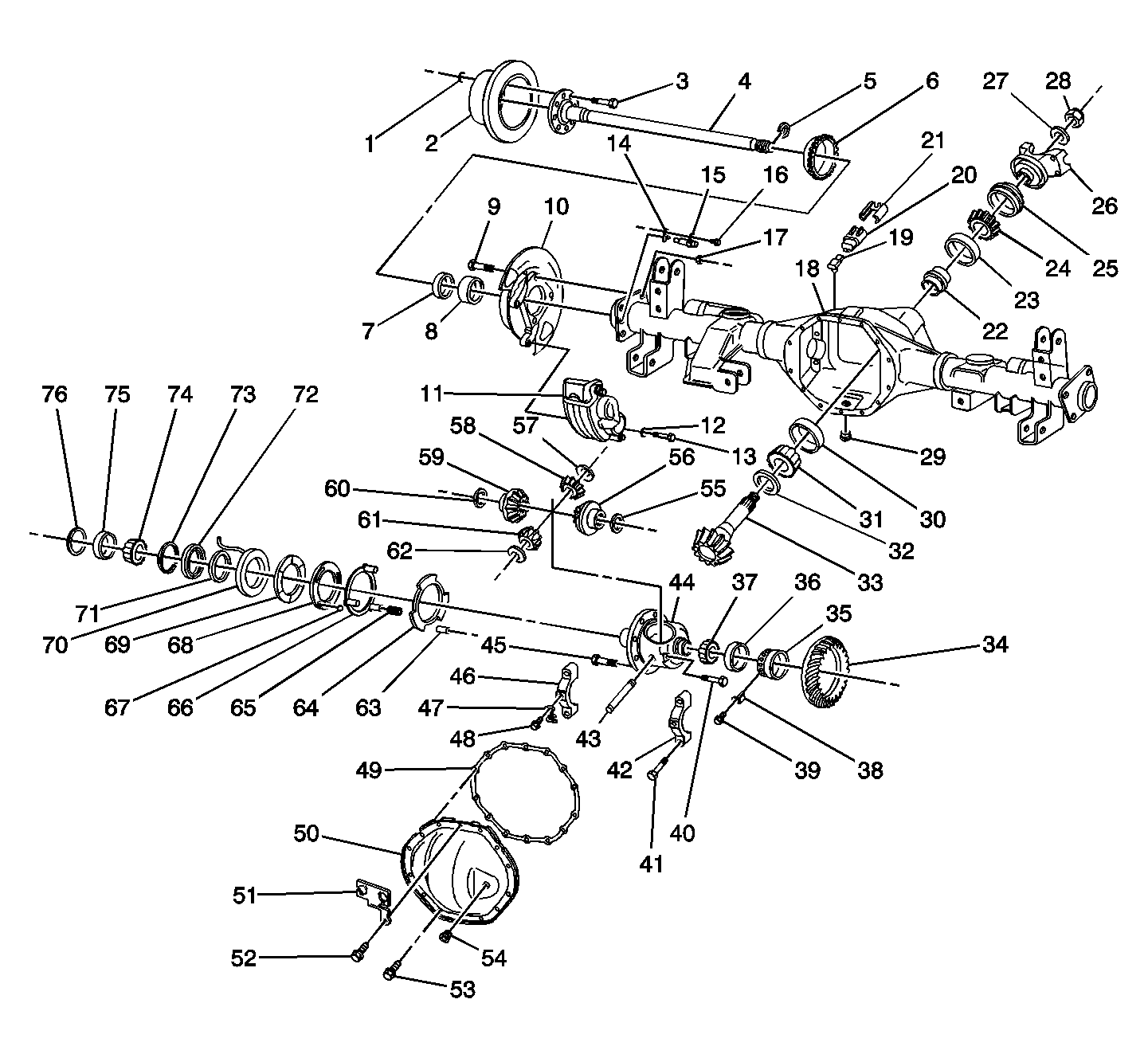

Rear Axle Disassembled Views
WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Wheel Nut |
| 2 | Brake Rotor |
| 3 | Wheel Stud |
| 4 | Rear Axle Shaft |
| 5 | Axle Shaft Lock |
| 6 | Exciter Ring |
| 7 | Rear Axle Shaft Seal |
| 8 | Rear Axle Shaft Bearing |
| 9 | Bolt |
| 10 | Brake Shoe Guide Plate |
| 11 | Brake Caliper |
| 12 | Washer |
| 13 | Bolt |
| 14 | Wheel Speed Sensor Shim |
| 15 | Wheel Speed Sensor |
| 16 | Bolt |
| 17 | Nut |
| 18 | Rear Axle Housing |
| 19 | Clip |
| 20 | Connector |
| 21 | Connector |
| 22 | Differential Drive Pinion Gear Bearing Spacer |
| 23 | Differential Drive Pinion Gear Outer Bearing Cup |
| 24 | Differential Drive Pinion Gear Outer Bearing |
| 25 | Differential Drive Pinion Gear Oil Seal |
| 26 | Differential Drive Pinion Gear Yoke |
| 27 | Differential Drive Pinion Gear Washer |
| 28 | Differential Drive Pinion Gear Nut |
| 29 | Differential Carrier Drain Plug |
| 30 | Differential Drive Pinion Gear Inner Bearing Cup |
| 31 | Differential Drive Pinion Gear Inner Bearing |
| 32 | Differential Drive Pinion Gear Bearing Shim |
| 33 | Differential Drive Pinion Gear |
| 34 | Differential Ring Gear |
| 35 | Differential Bearing Adjuster Nut |
| 36 | Differential Bearing Cup |
| 37 | Differential Bearing |
| 38 | Differential Bearing Adjuster Nut Lock |
| 39 | Bolt |
| 40 | Differential Pinion Gear Shaft Lock Bolt |
| 41 | Differential Bearing Cap Bolt |
| 42 | Differential Bearing Cap |
| 43 | Differential Pinion Gear Shaft |
| 44 | Differential Case |
| 45 | Bolt |
| 46 | Differential Bearing Cap |
| 47 | Differential Coil Lock |
| 48 | Bolt |
| 49 | Rear Axle Housing Cover Gasket |
| 50 | Rear Axle Housing Cover |
| 51 | Brake Pipe Clip |
| 52 | Bolt |
| 53 | Bolt |
| 54 | Differential Carrier Fill Plug |
| 55 | Differential Side Gear Thrust Washer |
| 56 | Differential Side Gear |
| 57 | Differential Pinion Gear Thrust Washer |
| 58 | Differential Pinion Gear |
| 59 | Differential Side Gear |
| 60 | Differential Side Gear Thrust Washer |
| 61 | Differential Pinion Gear |
| 62 | Differential Pinion Gear Thrust Washer |
| 63 | Differential Carrier Lock Pin |
| 64 | Locking Differential Clutch Spring Retainer |
| 65 | Locking Differential Clutch Spring |
| 66 | Locking Differential Ball Bearing Plate - Inboard |
| 67 | Locking Differential Ball Bearing Assembly |
| 68 | Locking Differential Ball Bearing Plate - Outboard |
| 69 | Locking Differential Coil Plate |
| 70 | Locking Differential Coil Assembly |
| 71 | Differential Bearing Assembly |
| 72 | Differential Bearing Race |
| 73 | Differential Bearing Retainer Ring |
| 74 | Differential Bearing |
| 75 | Differential Bearing Cup |
| 76 | Differential Bearing Shim |
