Installation Procedure
WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
- Add the proper amount of PAG oil to the condenser. Refer to Refrigerant System Capacities .

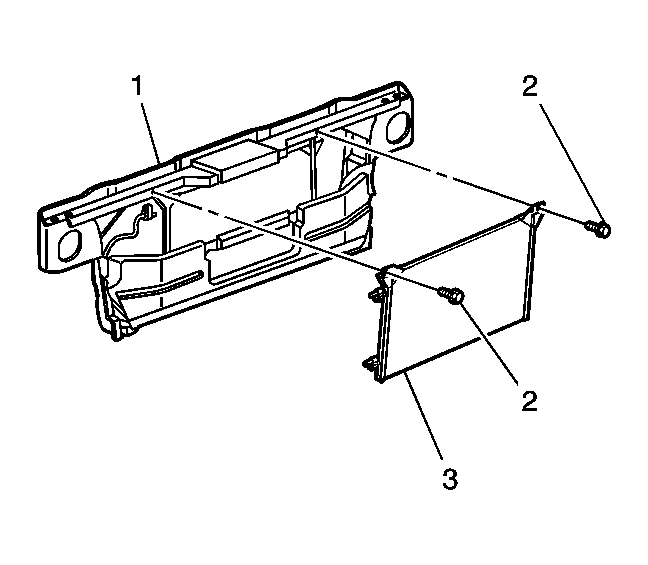

- Install the condenser (3) to the vehicle.
- Install the bolts (2) to the condenser (3).
Tighten: Tighten the bolts to 9 N.m (80 lb in).
- Install the new sealing washers. Refer to Sealing Washer Replacement .

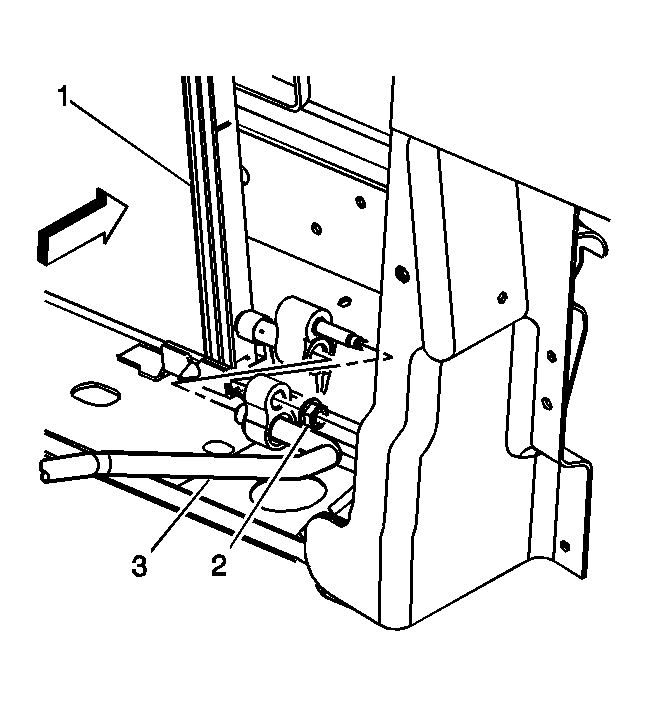

- Install the evaporator tube (3) to the condenser (1).
- Install the evaporator tube nut (2) to the condenser (1).
Tighten: Tighten the nut to 16 N.m (12 lb ft).

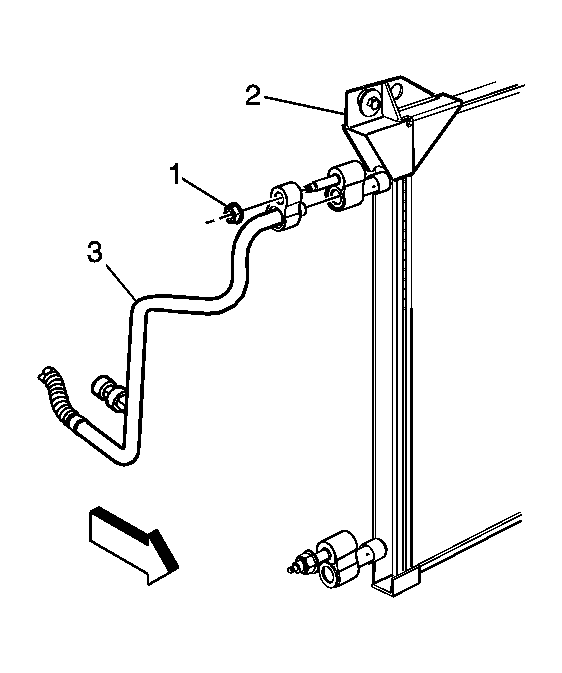

- Install the compressor discharge hose (3) to the condenser (2).
- Install the compressor discharge hose nut (1) to the condenser (2).
Tighten: Tighten the nut to 16 N.m (12 lb ft).
- Install the transmission oil cooler. Refer to Transmission Fluid Auxiliary Cooler Replacement in Automatic Transmission - 4L60-E.
- Install the power steering cooler. Refer to Power Steering Cooler Replacement in Power Steering System.
- Install the bolt and nut from the right hood spring.
Tighten: Tighten the nut to 16 N.m (12 lb ft).
- Install the bolt and nut from the left hood spring.
Tighten: Tighten the nut to 16 N.m (12 lb ft).
- Evacuate and recharge the system. Refer to Refrigerant Recovery and Recharging .
- Leak test the fittings of the component using the J 39400-A . See Special Tools and Equipment .
NOTE:
Refer to Fastener Notice in Cautions and Notices.
