Installation Procedure
WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

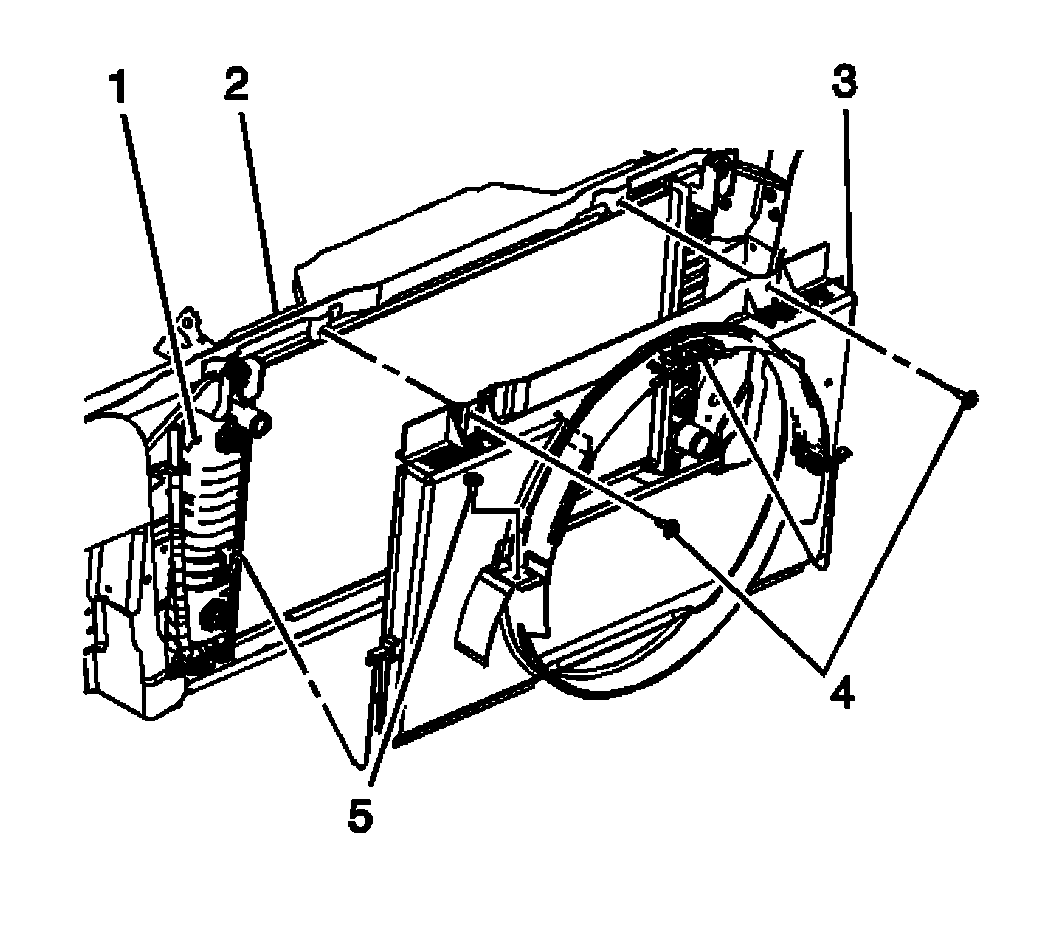

- Install the fan shroud (3) to the vehicle.
- Install the bolts (4) to the fan shroud (3).
Tighten: Tighten the bolts to 9 N.m (80 lb in).
- Install the transmission oil cooler line to the fan shroud retainer.
- Rotate the slip ring to the original position.
- Install the bolt (5) to the fan shroud (3).
Tighten: Tighten the bolt to 5 N.m (44 lb in).
- Install the radiator inlet hose to the fan shroud retainer (3).
- Install the air cleaner outlet duct.
- Tighten the air cleaner outlet duct clamp at the throttle body.
Tighten: Tighten the clamp screw to 7 N.m (62 lb in).
- Tighten the air cleaner outlet duct clamp at the mass airflow sensor.
Tighten: Tighten the clamp screw to 7 N.m (62 lb in).
NOTE:
Refer to Fastener Notice in Cautions and Notices.
