Wiper/Washer System Schematics

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

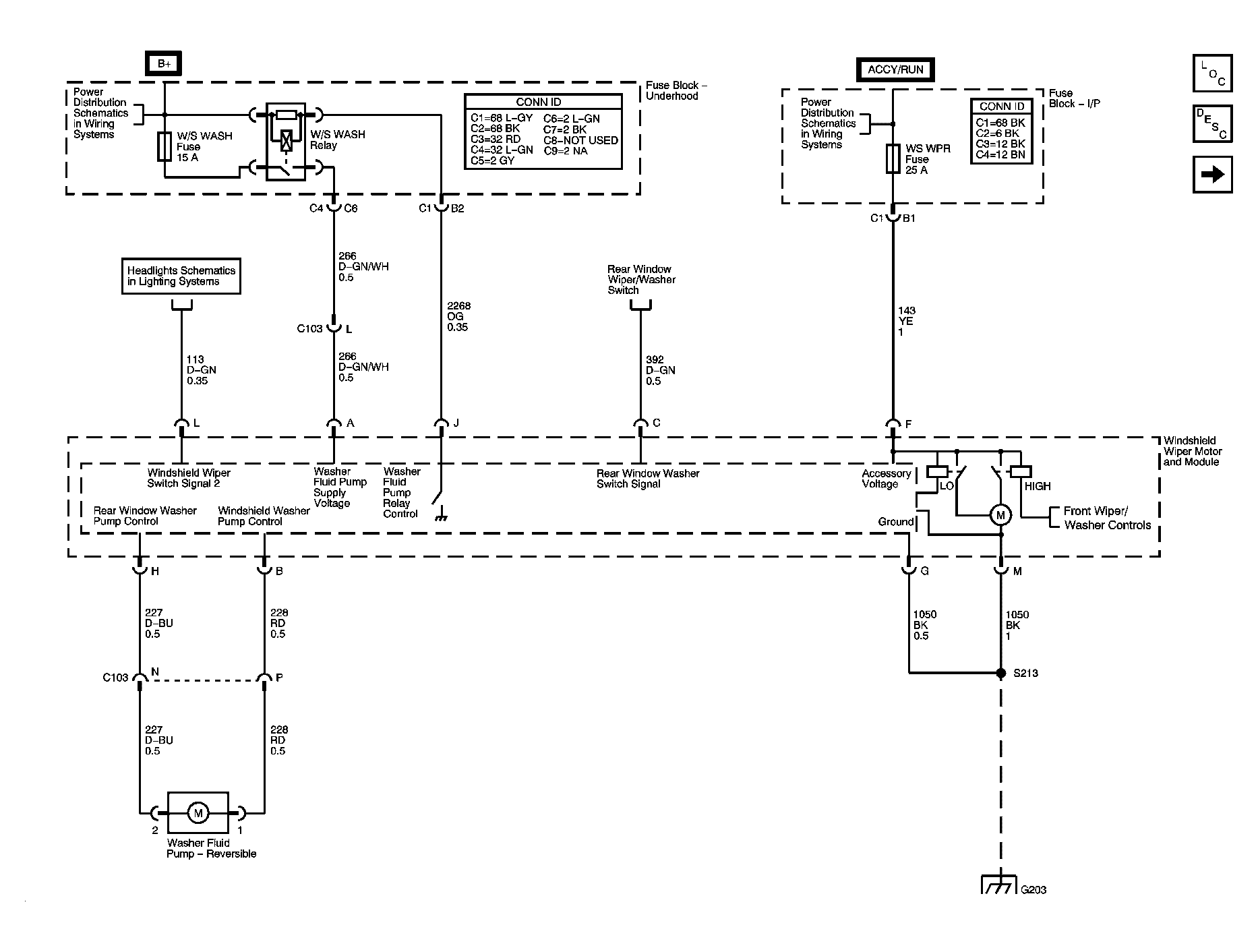

Fig 1: Front Wiper/Washer Power, Ground, and Motors

Courtesy of GENERAL MOTORS CORP.

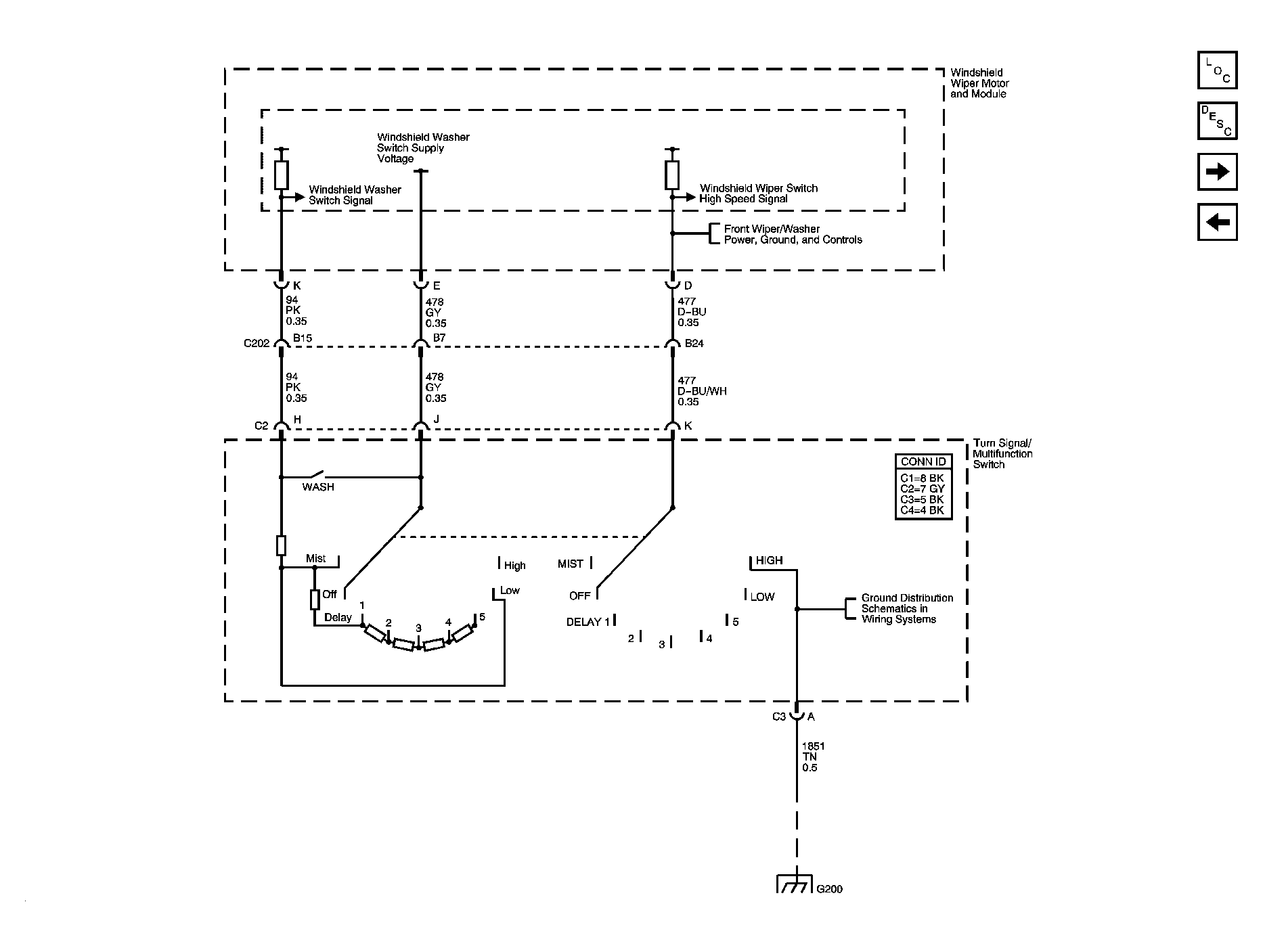

Fig 2: Front Wiper/Washer Controls

Courtesy of GENERAL MOTORS CORP.

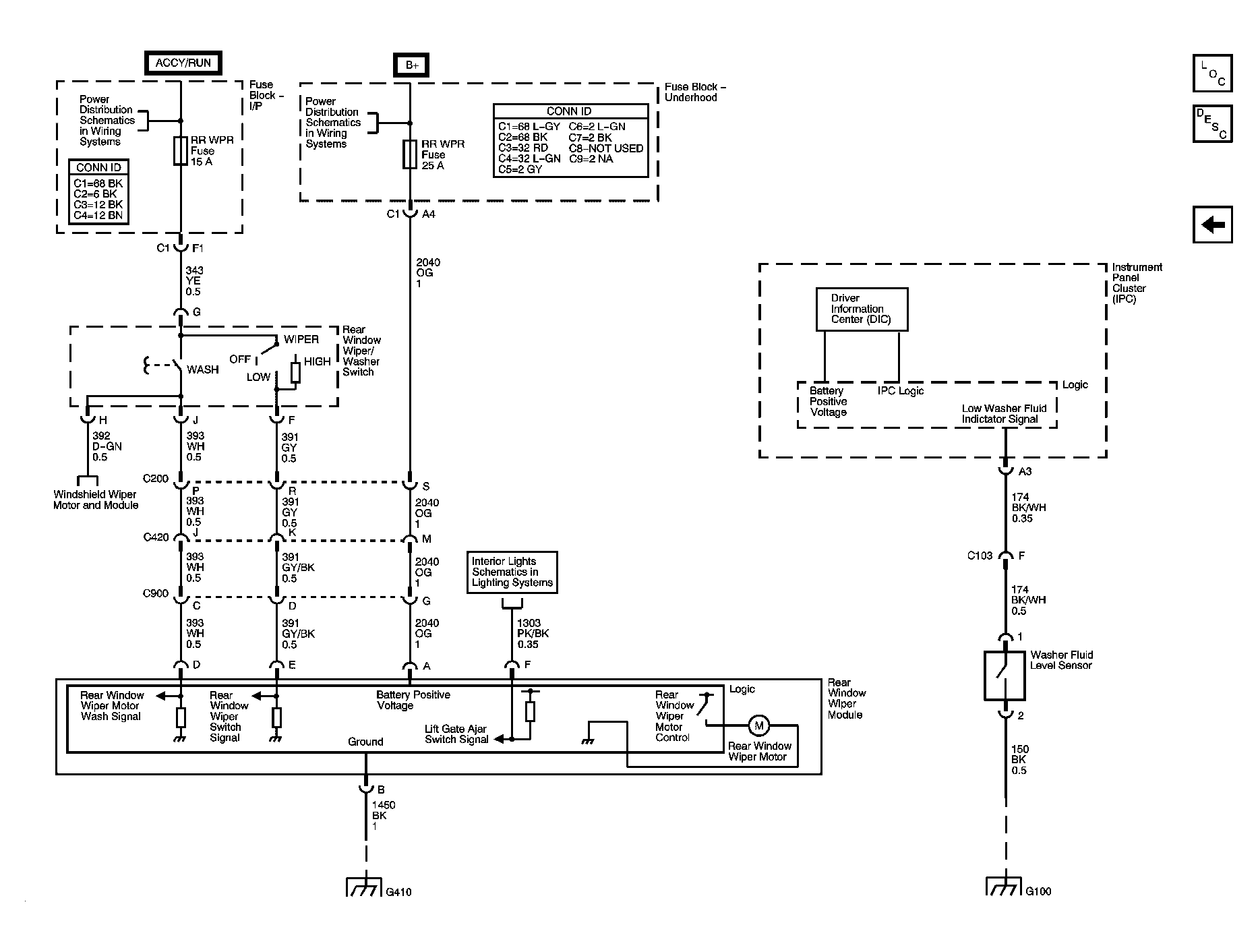

Fig 3: Rear Wiper Controls and Washer Fluid Level Sensor

Courtesy of GENERAL MOTORS CORP.
