Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

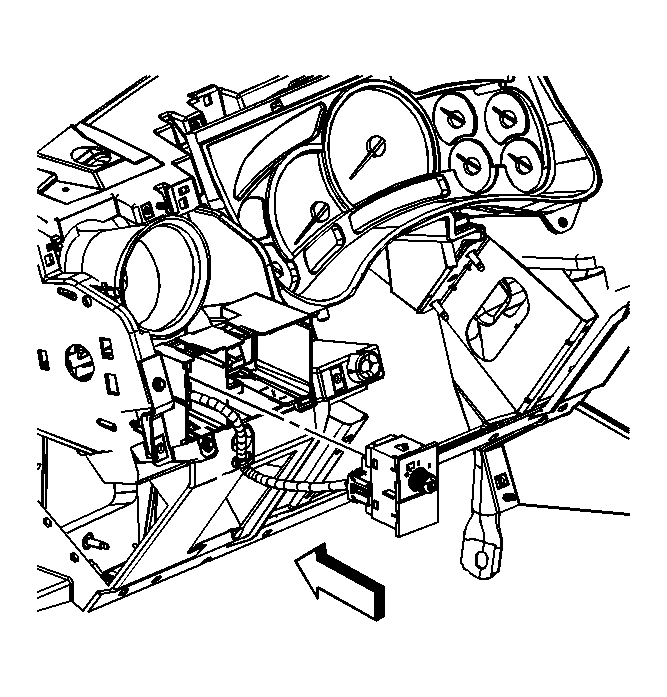

    Fig 1: Rear Wiper/Washer Switch
    GM832834Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the switch assembly.
  2. Push in the switch assembly until both tabs click in place.
  3. Install the trim bezel. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory Left in Instrument Panel, Gauges and Console.
