Removal Procedures

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: Cycle the wiper one time to ensure it is in the parked position.
  1. Remove the rear wiper arm. Refer to Wiper Arm Replacement - Rear .

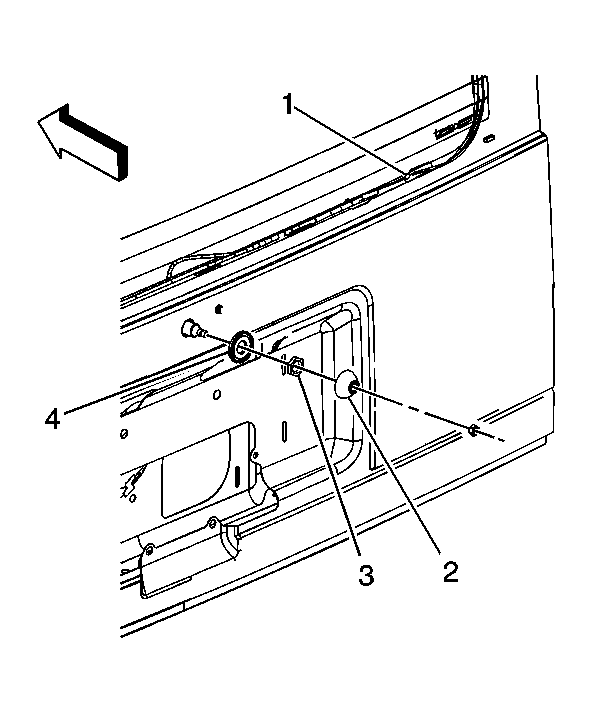

    2. Fig 1: Rear Wiper Arm Nut & Weatherseal
    GM893157Courtesy of GENERAL MOTORS CORP.
  2. Remove beauty cover (2) by twisting counterclockwise.
  3. Remove the rear wiper arm nut (3) and the weatherseal (4).
  4. Open the liftgate.
  5. Remove the liftgate trim panel. Refer to Trim Panel Replacement - Liftgate in Body Rear End.

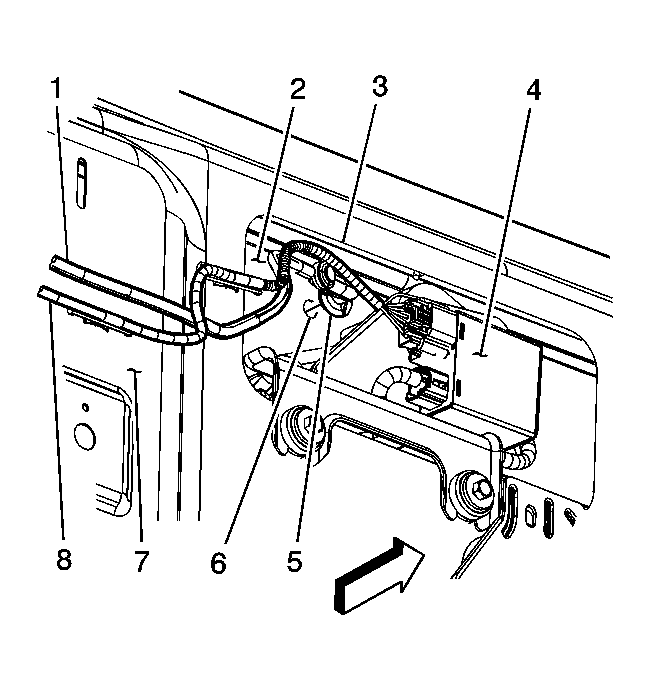

    6. Fig 2: Rear Wiper Motor
    GM1453829Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the rear wiper motor electrical connectors from the liftgate (4).
  7. Remove the rear wiper control module.
  8. Remove the fasteners (1) retaining the wiper motor to the liftgate (2).
  9. Remove the rear wiper motor from the liftgate.
