Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

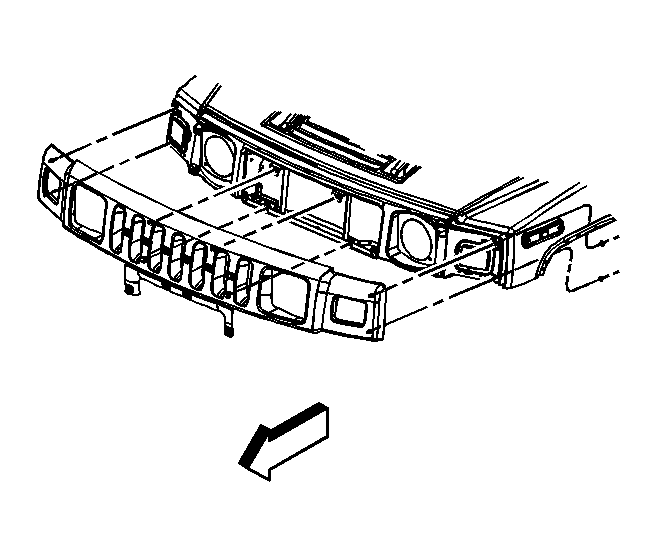

Fig 1: Hood Grille

Courtesy of GENERAL MOTORS CORP.

Install the grille to the vehicle.
Line up the studs to the mounting holes in the hood.
Apply inward pressure to the grille to engage the retaining clips.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the nuts that are retaining the grill to the hood.
Tighten: Tighten the nuts to 9 N.m (80 lb in).
Close the hood.
