Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

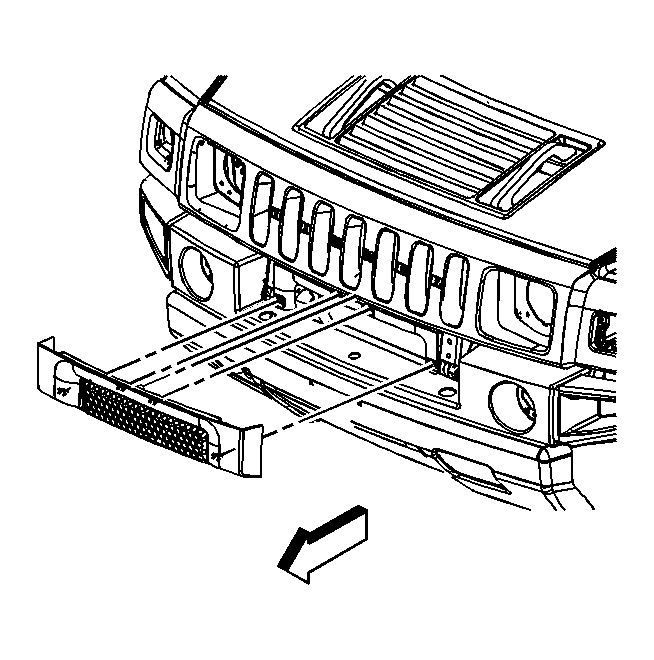

    Fig 1: Lower Hood Grille
    GM826346Courtesy of GENERAL MOTORS CORP.
  1. Install the lower grille to the vehicle.
  2. Apply inward pressure to the grille to engage the retaining clips.
