Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

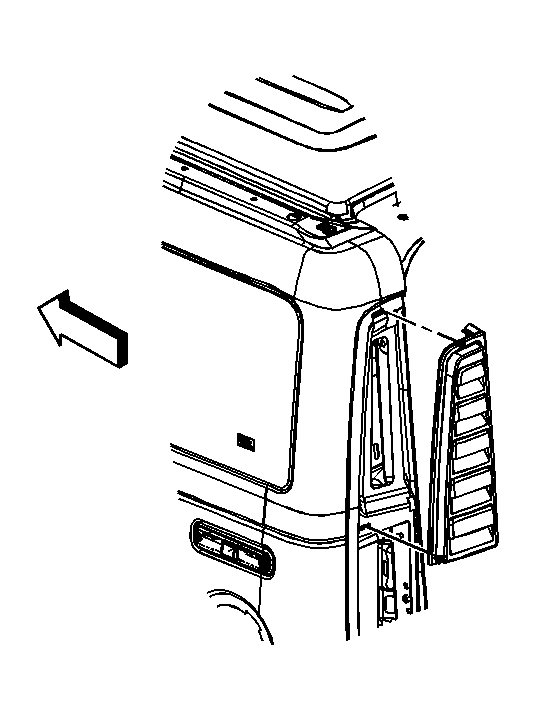

Fig 1: Upper Quarter Panel Applique

Courtesy of GENERAL MOTORS CORP.

Install the applique to the vehicle.
Apply inward pressure at the top and the bottom of the applique to engage the clips into the body.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the 2 side retaining screws.
Tighten: Tighten the screws to 3 N.m (26 lb in).
Close the liftgate.
