Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

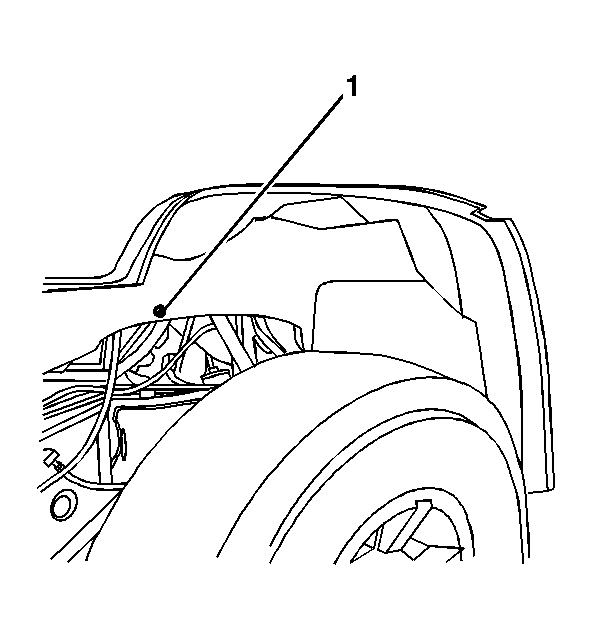

    Fig 1: Wheelhouse Panel
    GM870778Courtesy of GENERAL MOTORS CORP.
  1. Align the wheelhouse panel to the wheelhouse.
  2. Install push-in retainers.
  3. Install the wheel. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
