Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
    IMPORTANT: If replacing the hood, transfer all necessary items from the hood being replaced to the new hood.
  1. With the aid of assistants, position the hood in place, and install the hood hinge bolts. Refer to Hood Hinge Replacement  .
    2. Fig 1: Hood Support Cable Pins
    GM822819Courtesy of GENERAL MOTORS CORP.
  2. With the hood still supported by an assistant, install the hood support cable pins (1).

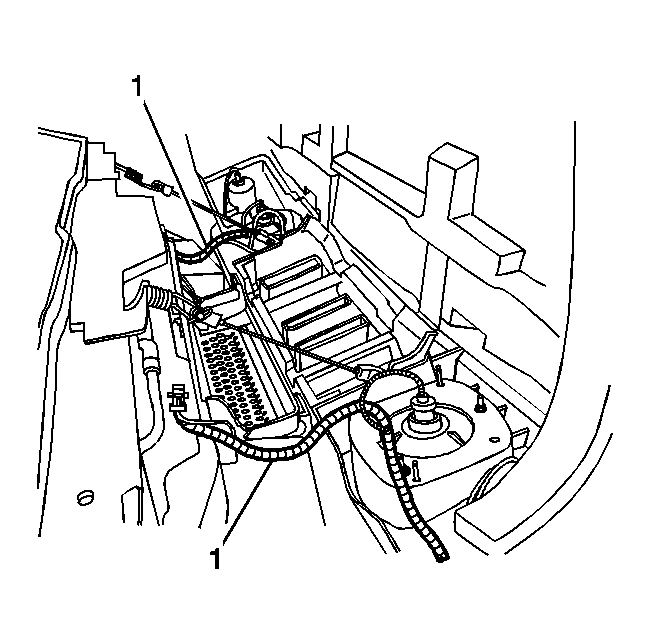

    3. Fig 2: Underhood Lighting Electrical Connectors & Wiring Harness
    GM822822Courtesy of GENERAL MOTORS CORP.
  3. Install the underhood lighting wiring harness (1) and connect all underhood lighting electrical connectors.
  4. Close the hood.
