Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

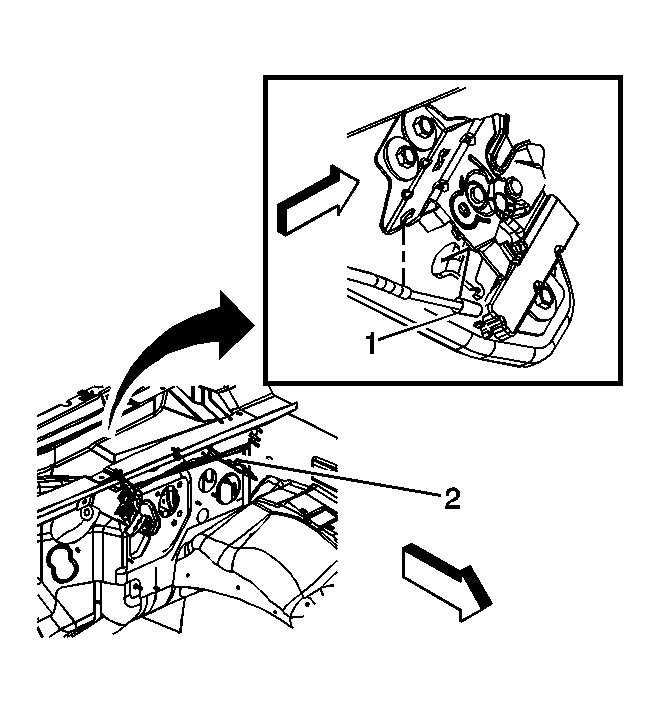

    Fig 1: Hood Latch Release Cable
    GM833078Courtesy of GENERAL MOTORS CORP.
  1. From the driver's side compartment area, route the cable through the access hole in the cowl (2).
  2. Attach the retainer clips that retain the hood release cable to the cowl.
  3. Connect the cable end (1) to the hood release latch.
  4. Set the hood release handle in place.
    5. NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the fastener retaining handle to the vehicle.

    Tighten:  Tighten the fasteners to 9 N.m (7 lb ft).

  6. Install the driver's side kick up panel. Refer to Kick-Up Panel Replacement - Front Floor .
