Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the rod to the vehicle.

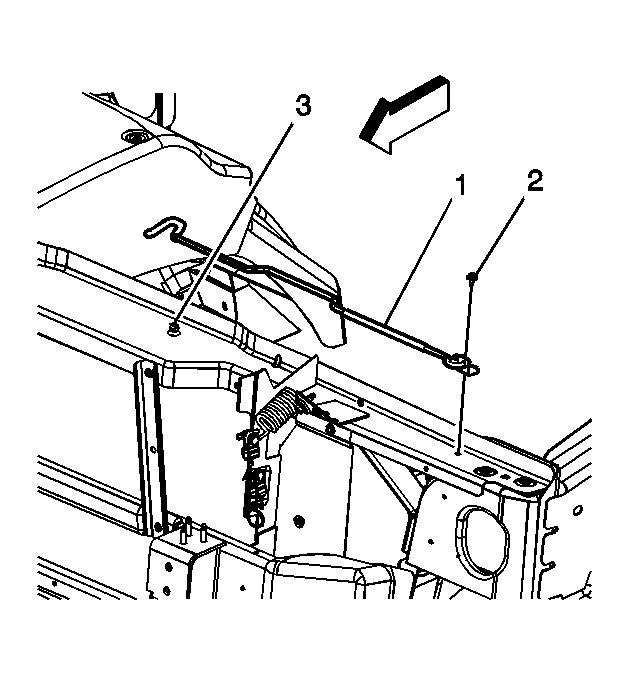

    2. Fig 1: Hood Hold-Open Rod
    GM861117Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fastener (2) retaining the hood hold-open rod to the vehicle.

    Tighten:  Tighten the fastener to 9 N.m (7 lb ft).

  3. Set the rod in place in the plastic retainer (3), ensuring it is fully seated.
  4. Close the hood.
