Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

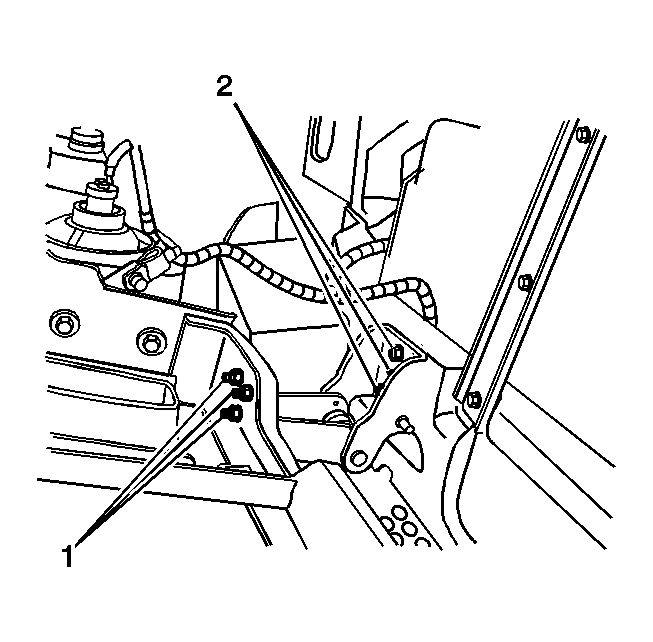

Fig 1: Hood Hinge Bolts

Courtesy of GENERAL MOTORS CORP.

With the hood properly supported, position the hinge to the front bumper support.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the bolts (2) retaining the hinge to the front bumper support.
Tighten: Tighten the bolts to 25 N.m (18 lb ft).
Install the nuts (1) retaining the hinge to the hood.
Tighten: Tighten the nuts to 18 N.m (13 lb ft).
Adjust the hood, if necessary.
