Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the hood handle to the hood.
    NOTE: Refer to Fastener Notice in Cautions and Notices.

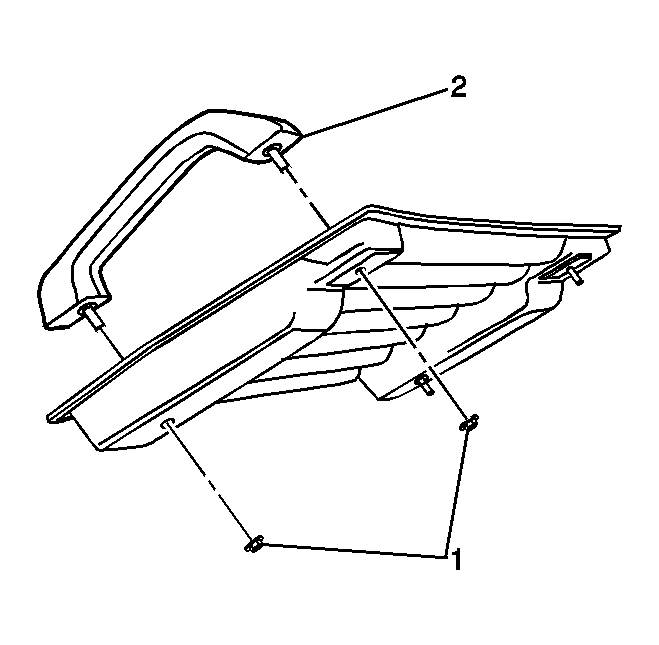

    2. Fig 1: Hood Handle
    GM856695Courtesy of GENERAL MOTORS CORP.
  2. Install the fasteners (1) retaining the hood handle to the hood.

    Tighten:  Tighten the fasteners to 9 N.m (7 lb ft).

  3. Install the hood insulator. Refer to Hood Insulator Replacement  .
  4. Close the hood.
