Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

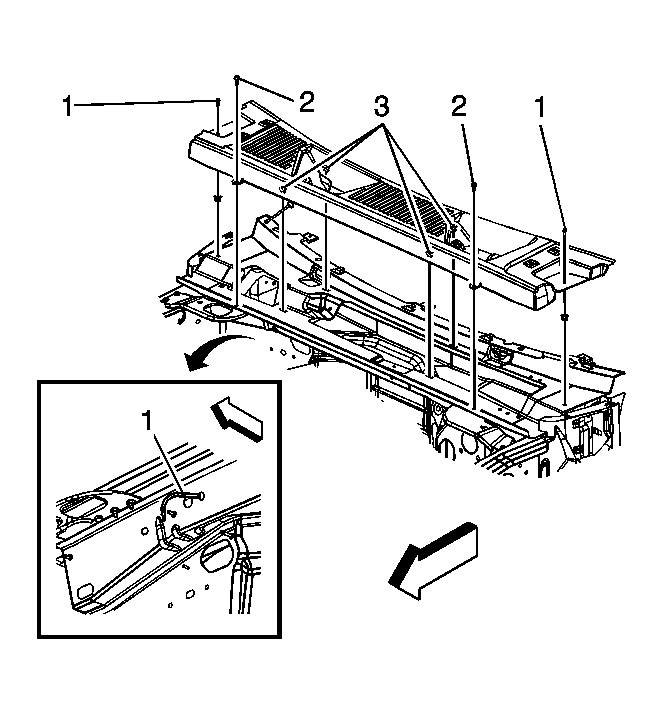

    Fig 1: Air Inlet Grille Panel
    GM837038Courtesy of GENERAL MOTORS CORP.
  1. Align the air inlet grille to the vehicle, and secure grille by ensuring all 4 retainers (3) are properly seated.
  2. Connect the washer hose connection (1).
  3. Install the push-in retainers.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the side fasteners.

    Tighten:  Tighten the fasteners to 2.5 N.m (22 lb in).

  5. Install the wiper arms. Refer to Wiper Arm Replacement in Wipers/Washer Systems.
  6. Install the non-functional air inlet caps. Refer to Air Inlet Grille Panel Replacement - Non Functional .
