Installation Procedure
WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

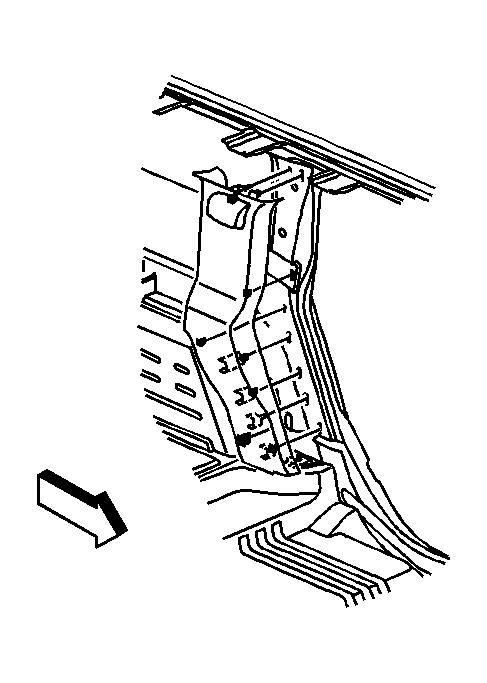

- Install the lock pillar trim panel to the vehicle.
- Feed the seat belt through the opening in the lock pillar trim panel.
- Align the retaining clips with the openings in the body.
- Gently press to fully seat the retaining clips.
- Install the vehicle jack and bracket if necessary.
- Raise the jack after it is installed in the bracket to ensure that it is secure.
Tighten: Tighten the bracket to 53 N.m (39 lb ft).
- Install the seat belt to floor mounting bolt.
- Fold the rear seat into the upright position.
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
