Installation Procedure
WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

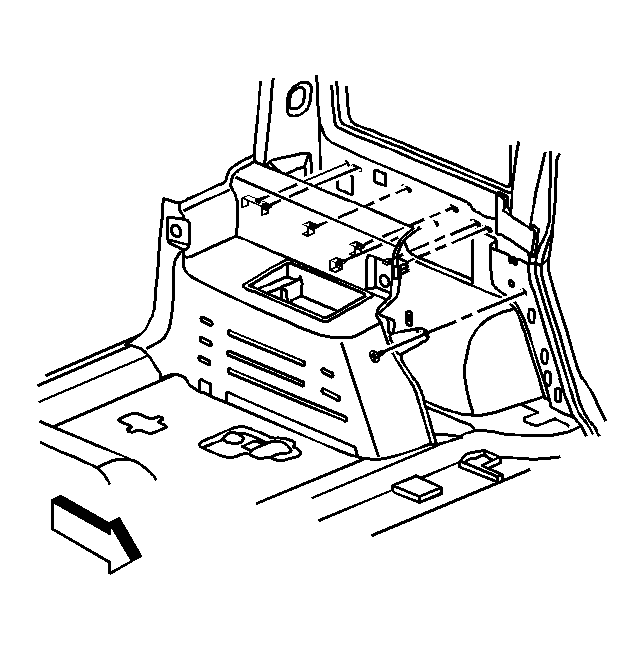

- Install the left body side panel to the vehicle.
- Align the retaining clips with the opening in the body and gently press to fully seat the retaining clips.
- Install the rear pillar garnish panel. Refer to Garnish Molding Replacement - Rear Upper .
- Install the lift gate sill plate. Refer to Door Sill Plate Replacement - Liftgate .
- Install the lock pillar trim panel. Refer to Trim Replacement - Lock Pillar .
- Install the spare tire carrier. Refer to Spare Tire Carrier Replacement in Tires and Wheels.
