Removal Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

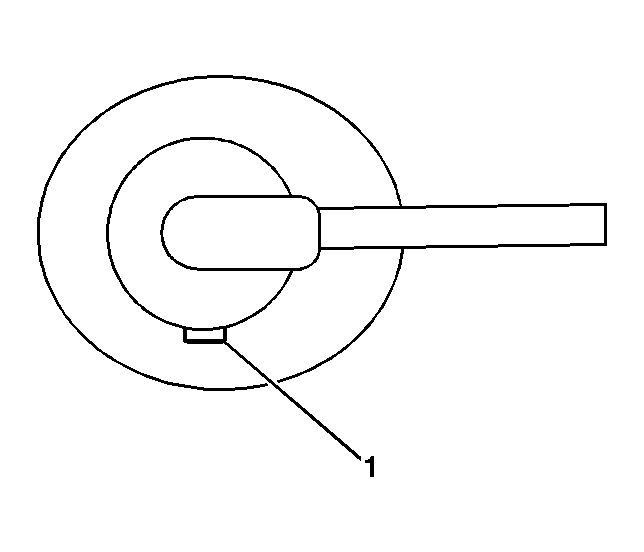

Fig 1: Primary Retainer

Courtesy of GENERAL MOTORS CORP.

Insert a small flat-bladed tool into the access hole to disengage the primary retainer.

Fig 2: Sunshade Elbow & Secondary Retainer

Courtesy of GENERAL MOTORS CORP.

Using firm upward pressure, push the sunshade elbow (3) up and rotate it to unlock the secondary retainer (2) from the body.
When the secondary retainer (2) is disengaged from the body, the elbow (3) and retainer (2) will be recessed into the bezel (1) approximately 1/8 in (12.5 mm).

Fig 3: Sunshade & Bezel

Courtesy of GENERAL MOTORS CORP.

Pull down to remove the sunshade (4) and bezel (3) as a complete assembly.
Disconnect the electrical connection for the vanity mirror.
