Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

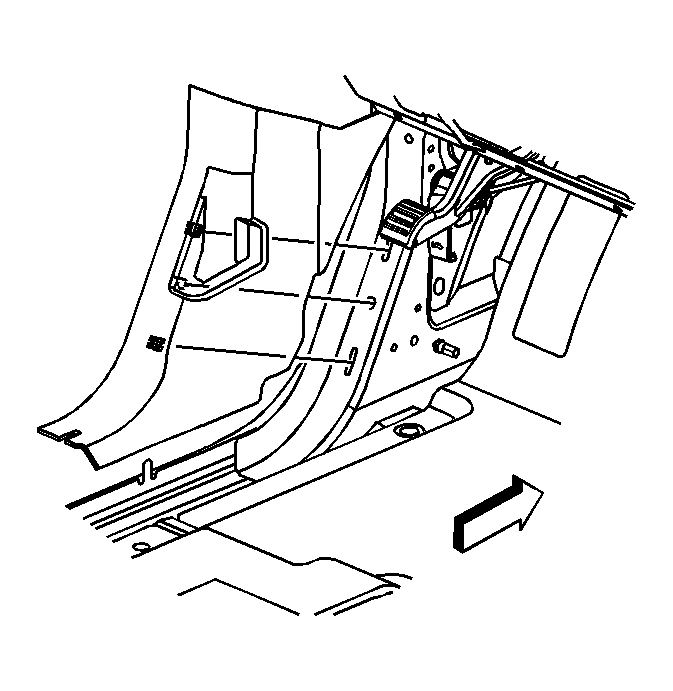

    Fig 1: Front Floor Kick-Up Panel
    GM833501Courtesy of GENERAL MOTORS CORP.
  1. Install the front floor kick-up panel around the hood release lever.
  2. Align the retaining clips with the openings in the body.
  3. Gently press to fully seat the retaining clips.
  4. Install the front door sill plate. Refer to Door Sill Plate Replacement - Front  .
