Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

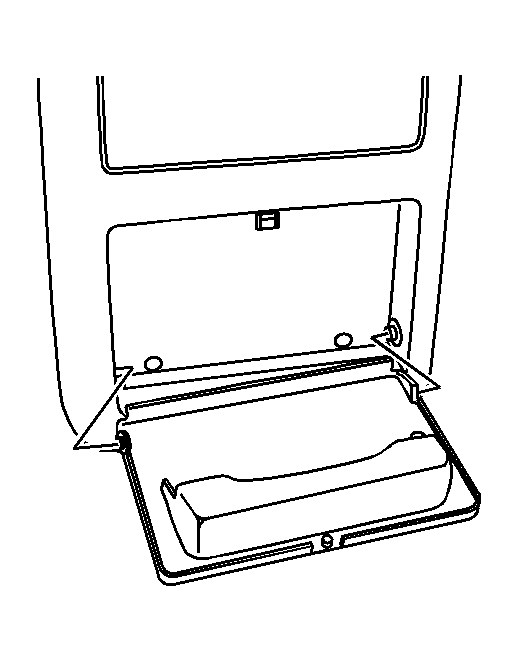

Fig 1: Gear Assembly & Console

Courtesy of GENERAL MOTORS CORP.

Install the new door to the gear assembly overhead console.

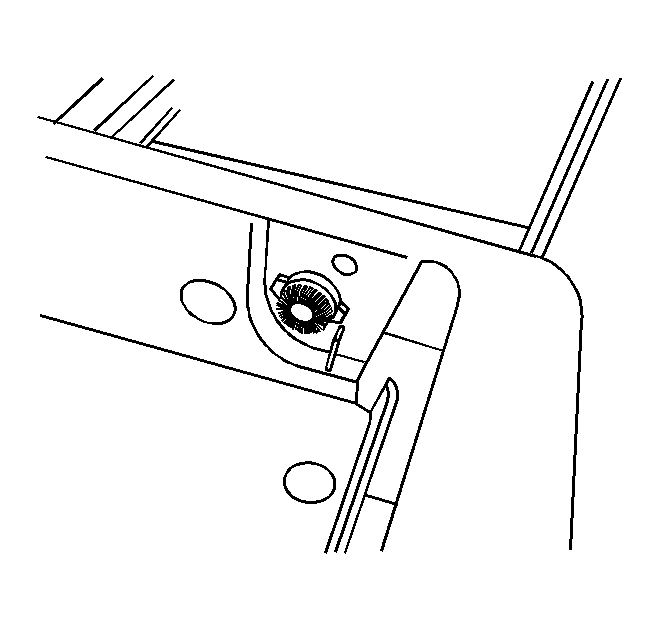

Fig 2: Installing New Door To Overhead Console

Courtesy of GENERAL MOTORS CORP.

Install the new door to the overhead console.

NOTE: Refer to Fastener Notice in Cautions and Notices.

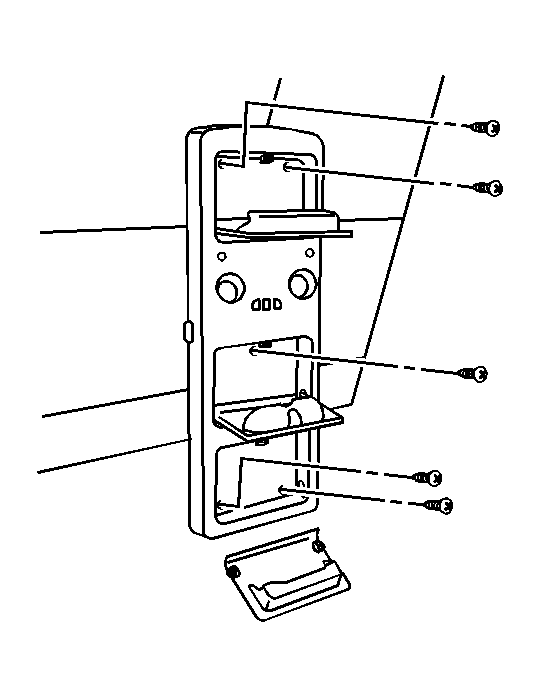

Fig 3: Overhead Console & Headliner

Courtesy of GENERAL MOTORS CORP.

Attach the overhead console to the headliner.
Tighten: Tighten the screws to 2 N.m (18 lb in).
