Removal Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: When removing some overhead consoles, the rear retaining tabs may be hot glued to the headliner.
    Fig 1: Overhead Console Screws (Short Length)
    GM827786Courtesy of GENERAL MOTORS CORP.
  1. Remove the console roof screws.

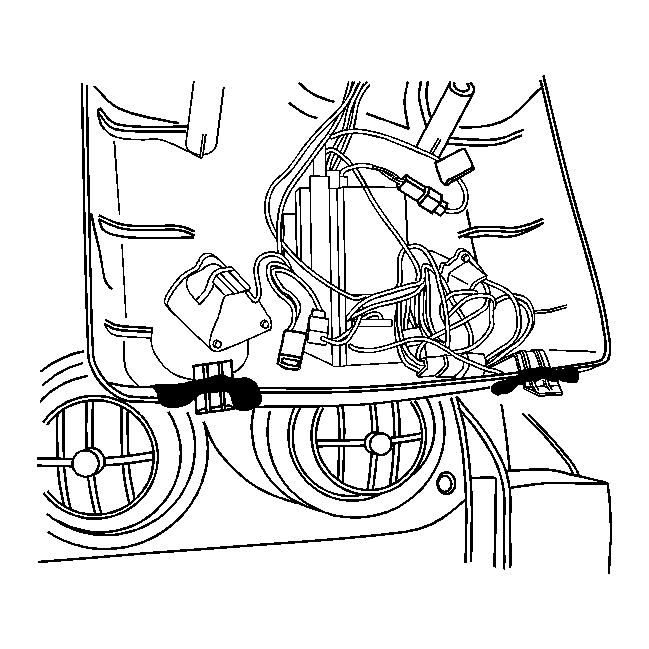

    2. Fig 2: Overhead Console (Short Length)
    GM898178Courtesy of GENERAL MOTORS CORP.
  2. If front tabs are glued to headliner, gently wiggle console to loosen console tabs from headliner.
  3. Disconnect the electrical connectors.
  4. Remove the console.
