Removal Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

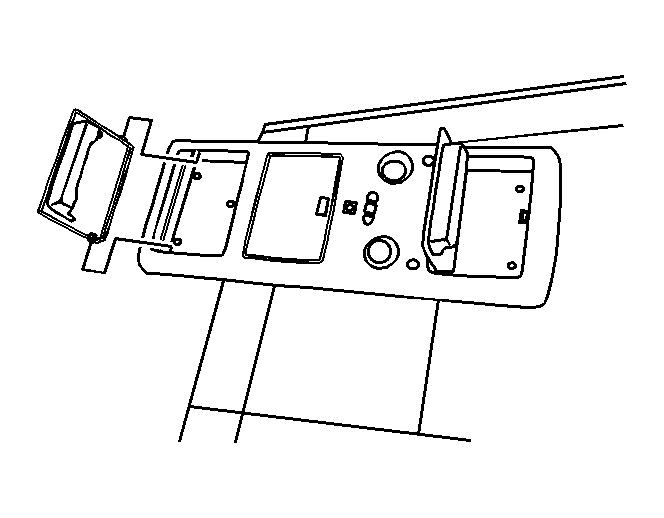

Fig 1: Overhead Console Door & Headliner

Courtesy of GENERAL MOTORS CORP.

Open the console compartment and remove the roof screws.

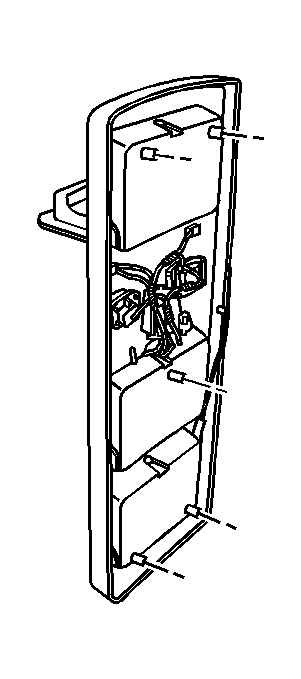

Fig 2: Electrical Connectors & Overhead Console (Full Length)

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connectors from the overhead console.

Fig 3: Overhead Console (Full Length) & Headliner

Courtesy of GENERAL MOTORS CORP.

Remove the console.
