Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.

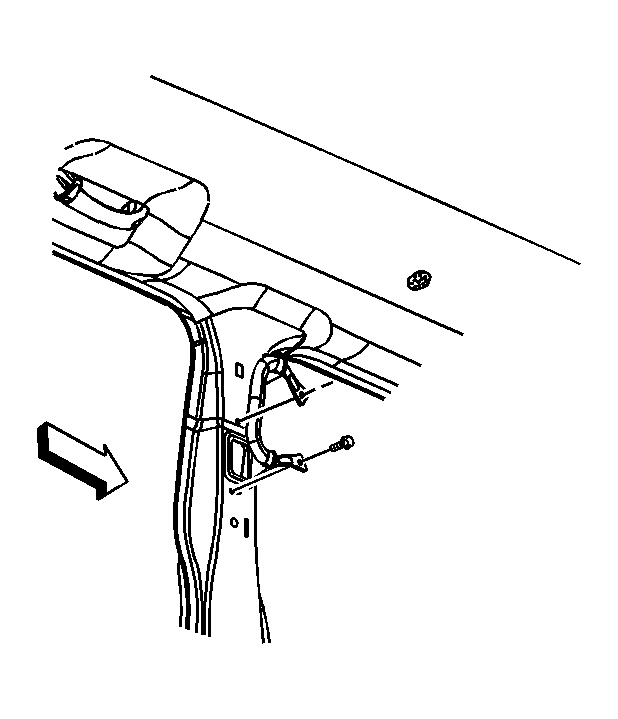

Fig 1: Rear Assist Handle

Courtesy of GENERAL MOTORS CORP.

Install the assist handle to the vehicle.
Install the bolts that retain the assist handle to the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the hinge pillar garnish trim. Refer to Trim Replacement - Hinge Pillar .
Tighten: Tighten the bolts to 12 N.m (9 lb ft).
