Installation Procedure

WARNING: This page is about a different car, the 2004 Hummer H2. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the lamp to the hood.

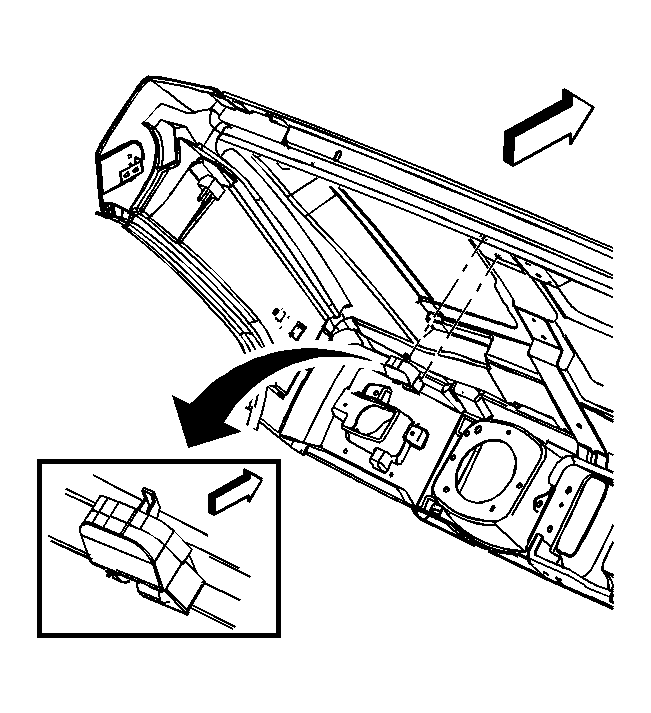

    2. Fig 1: Underhood Lamp
    GM814427Courtesy of GENERAL MOTORS CORP.
  2. Tilt the lamp to engage the top hook to the hood.
  3. Apply light pressure at the bottom of the lamp to engage the retaining clip.
  4. Connect the electrical connector.
  5. Close the hood.
